MIB2 Composition Media Hacking#

My US 2019 Golf Alltrack SE came with the MIB2 Composition Media infotainment system made by Delphi running QNX 6.5.0 (with firmware MST2_US_VW_P0890D release 0890). This unit has CarPlay/Android Auto but lacks navigation or maps of its own (though it has GPS). Lucky for me, it’s possible to gain root access to the unit.

I used these resources to learn about this:

Root Shell#

To get root access you’ll need to buy two items:

OBD11/OBDeleven or VCDS/VAG-COM
A USB network adapter
1. I used an old ASIX AX88772A chipset based adapter I had lying around
A laptop

To access the root shell follow these steps:

Enable development mode
Enable ethernet support
Reboot
Telnet

Enabling Development Mode#

Danger

Accessing development features can irreversibly damage your infotainment system for your car, bricking it or physically damaging its electronics (voltage settings are exposed when in development mode).

Proceed with caution at your own risk. Don’t do any of this if you’re not familiar with embedded devices or if you’re not familiar with Linux or Unix.

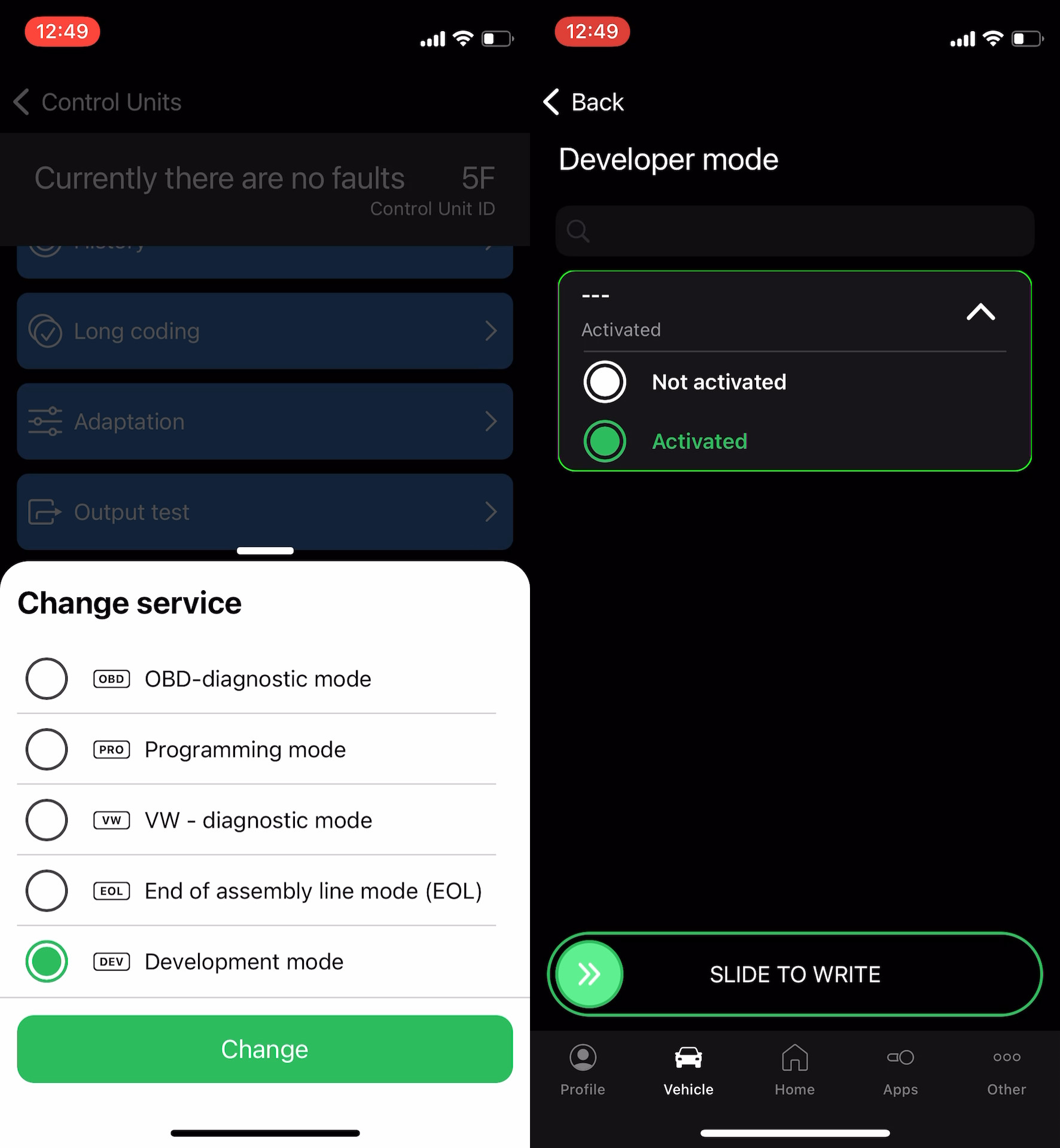

Using your OBD11 or VCDS enable development mode (I’ll be using OBD11):

5F Multimedia
Change service
1. Set to Development mode
Adaptation
Developer mode
1. Set to Activated
Write

Tip

After enabling development mode you can now take screenshots by holding down the Media button for 3 seconds. They’ll be saved to your SD card.

Enabling Ethernet#

Next we need to enable ethernet mode, otherwise the USB network adapter will be ignored by the head unit.

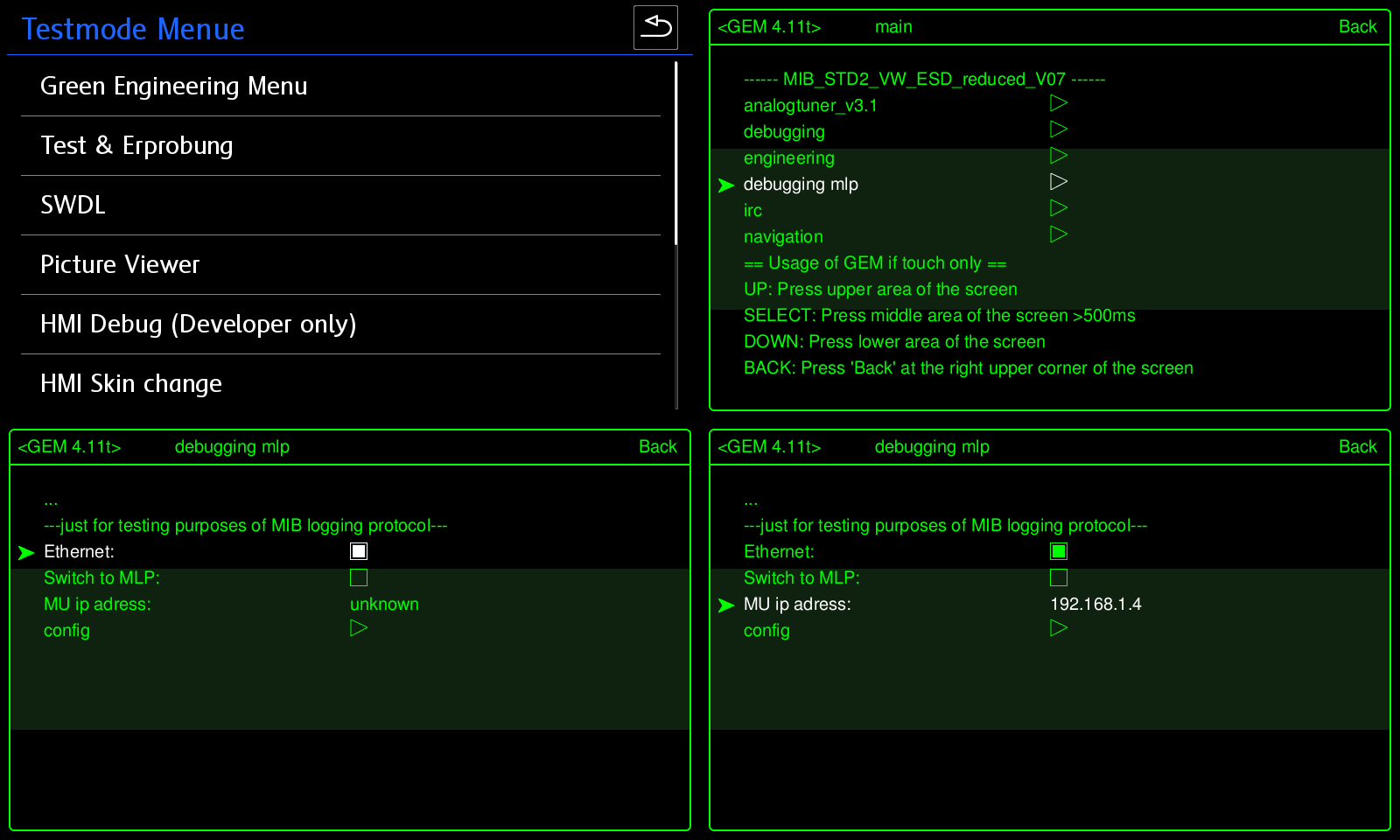

Hold down the Menu button for 10 seconds
1. The Testmode Menue hidden menu will appear
Green Engineering Menu
debugging mlp
Using the tuning knob (not volume knob) select Ethernet and press the knob to enable it
Reboot
1. Reboot by holding down the power/volume knob for 10 seconds. First the clock will appear, keep holding, then the screen will go black. Let go and wait for it to finish starting back up automatically.

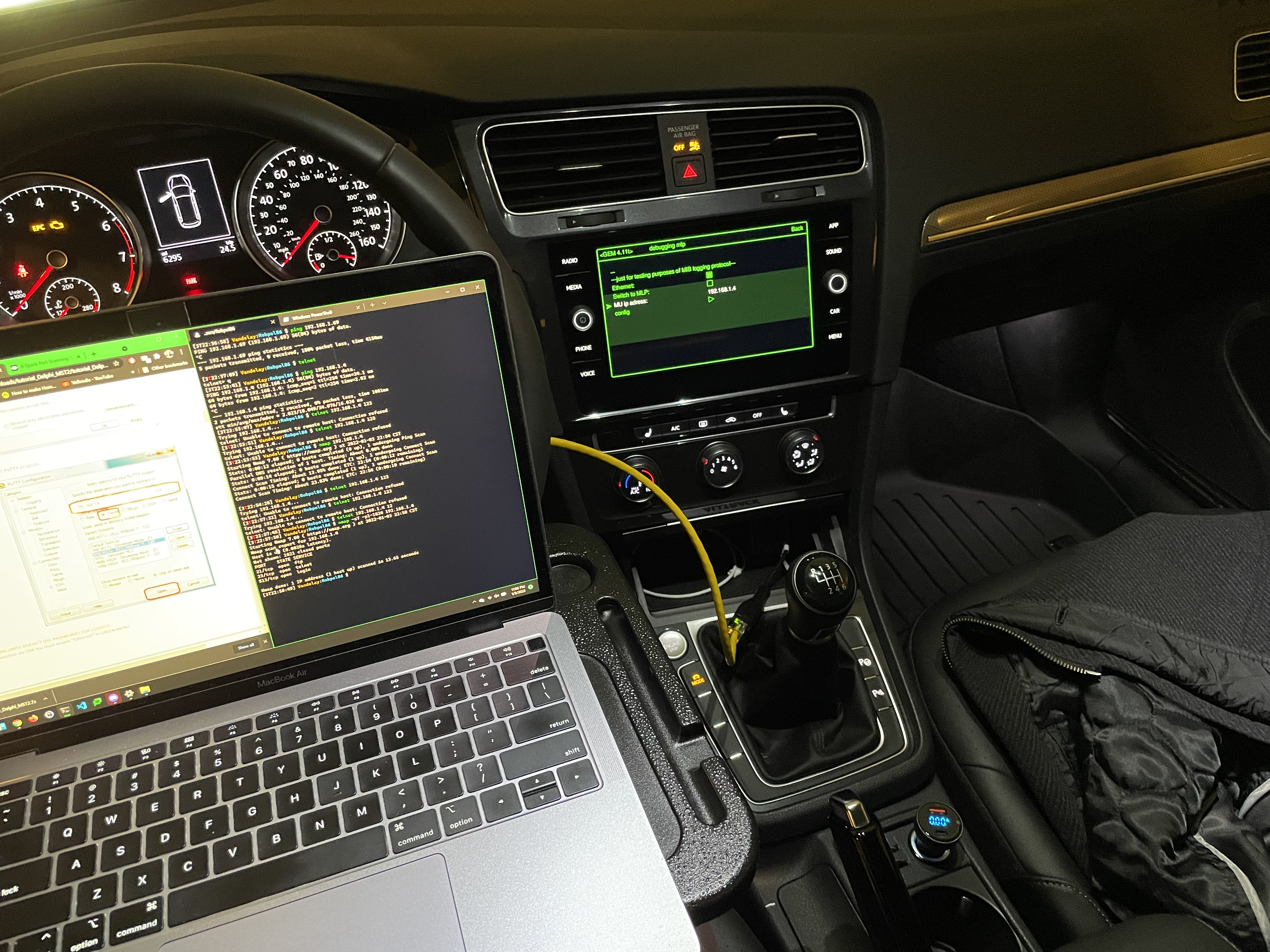

Plug in the USB network adapter into the USB port you usually use for music or Android Auto/CarPlay
Configure your laptop to use the static IP 192.168.1.10 with subnet mask 255.255.255.0 (no gateway or DNS needed)
Connect your laptop to the USB network adapter’s ethernet port
Ping 192.168.1.4 to confirm the head unit’s network is up
1. You can confirm this is the head unit’s IP by going back to the green menu debugging mlp screen

Telnet or FTP#

The last step is to confirm you can telnet and/or FTP into the head unit.

My unit exposed three services over the network:

21/tcp (FTP, user/pass both ftpuser)
23/tcp (Telnet, user is root with no password)
513/tcp (Rlogin, haven’t used it yet)

FTP and telnet both grant you full access to the running OS and filesystems. Some notes:

SD card is mounted as read/write on /sdc1
You can keep Ethernet enabled, CarPlay still worked for me
Files added to /media and /persistence survive reboots, together there’s about 542 MiB of free space available
Looks like my unit has 1 GiB of RAM installed, with about half of it unused
Use pidin instead of ps
Use showmem instead of free

Dumps#

This section is where I put a bunch of random outputs I got during my investigation.

Filesystem#

https://mega.nz/file/a4xTUIKa#do9uQA3p30hKfn-blXom4ff3-8uUah2O61z6IOdvtIY

`uname -a`#

QNX localhost 6.5.0 2015/12/01-11:00:56EST TI-DRA74X-PG1.0 armle

`df -h`#

/dev/sdc0t12                 30G       19G       11G      63%  /sdc1/
/dev/fs1p0                   16M      1.0M       14M       8%  /ramdisk
/dev/mmc0t179               400M       39M      361M      10%  /media/
/dev/mmc0t178               2.0G      383M      1.6G      19%  /lng/
/dev/mmc0t180               220M       39M      181M      18%  /persistence/
/dev/mmc0t177               760M      428M      332M      57%  /extbin/
/dev/fs0p3                  384K      4.5K      379K       2%  /home
/dev/fs0p1                  9.5M      5.3M      4.1M      57%  /ffs
/dev/sdc0                    30G       30G         0     100%
/dev/cdd0                      0         0         0     100%
/dev/mmc0                   3.3G      3.3G         0     100%

`mount`#

/dev/sdc0t12 on /sdc1 type dos (fat32)
/dev/fs1p0 on /ramdisk type flash
/dev/mmc0t179 on /media type qnx6
/dev/mmc0t178 on /lng type qnx6
/dev/mmc0t180 on /persistence type qnx6
/dev/mmc0t177 on /extbin type qnx6
/dev/fs0p3 on /home type flash
/dev/fs0p1 on /ffs type flash

`showmem -S`#

System RAM:      896M (     939524096)
Total Used:      406M (     426565660)
 Used Private:   326M (     342616416)
 Used Shared:     77M (      80973824)
       Other:   2905K (       2975420) (includes IFS and reserved RAM)

`ls -lah /dev`#

t-u--g--o- ln Owner     Group          Size Date         Filename
total 147318760
nrw-rw-rw-  1 root      root           2048 Feb 01 07:07 DbTrace
crw-------  1 root      root         0,   1 Feb 01 07:08 bpf
crw-------  1 root      root         0,   1 Feb 01 07:08 bpf0
brw-------  1 root      root         9,   0 Feb 01 07:00 cdd0
crw-rw-rw-  1 root      root         0,   1 Feb 01 07:00 console
dr-xr-xr-x  2 root      root              0 Feb 01 07:08 cpumeter
nrw-rw-rw-  1 root      root              0 Feb 01 07:08 crypto
dr-xr-xr-x  2 root      root              0 Feb 01 07:08 d_carplay
dr-xr-xr-x  2 root      root              0 Feb 01 07:08 d_ugzzf
nrw-rw-rw-  1 root      root              0 Feb 01 07:00 dvfs
crw-rw-rw-  1 root      root         0,   1 Feb 01 07:00 dvfs_client_1
nrw-rw-rw-  1 root      root              0 Jan 01  1970 eide_bus
nrw-rw-rw-  1 root      root              0 Jan 01  1970 emmc
brw-r-----  1 root      root         4,   0 Feb 01 07:00 fs0
brw-r-----  1 root      root         4,   1 Feb 01 07:08 fs0p0
brw-r-----  1 root      root         4,   2 Feb 01 07:07 fs0p1
brw-r-----  1 root      root         4,   3 Feb 01 07:08 fs0p2
brw-r-----  1 root      root         4,   4 Feb 01 07:07 fs0p3
brw-r-----  1 root      root         4,  32 Feb 01 07:08 fs1
brw-r-----  1 root      root         4,   5 Feb 01 07:00 fs1p0
crw-rw-rw-  1 root      root         0,   1 Feb 01 07:08 i2c4
crw-rw-rw-  1 root      root         0,   1 Feb 01 07:07 i2c5
crw-rw-rw-  1 root      root         0,   1 Feb 01 07:08 i2c_usb0
dr-xr-xr-x  2 root      root              0 Feb 01 07:08 io-usb
dr-xr-xr-x  2 root      root              0 Feb 01 07:08 io-usb1
-rw-------  1 root      root      4294967295 Feb 01 07:08 mem
brw-------  1 root      root         7,   0 Feb 01 07:01 mmc0
brw-------  1 root      root         1,   8 Feb 01 07:00 mmc0t177
brw-------  1 root      root         1,   9 Feb 01 07:00 mmc0t178
brw-------  1 root      root         1,  10 Feb 01 07:00 mmc0t179
brw-------  1 root      root         1,  11 Feb 01 07:00 mmc0t180
dr-xr-xr-x  2 root      root              0 Feb 01 07:08 mqueue
dr-xr-xr-x  2 root      root              0 Feb 01 07:08 name
crw-rw-rw-  1 root      root         1,   0 Feb 01 07:08 null
nrw-rw-rw-  1 root      root              1 Feb 01 07:08 pipe
crw-rw-rw-  1 root      root         6, 512 Feb 01 07:08 ptyp0
crw-rw-rw-  1 root      root         6, 513 Feb 01 07:07 ptyp1
crw-rw-rw-  1 root      root         6, 514 Feb 01 07:07 ptyp2
crw-rw-rw-  1 root      root         6, 515 Feb 01 07:07 ptyp3
crw-rw-rw-  1 root      root         6, 516 Feb 01 07:07 ptyp4
crw-rw-rw-  1 root      root         6, 517 Feb 01 07:07 ptyp5
crw-rw-rw-  1 root      root         6, 518 Feb 01 07:07 ptyp6
crw-rw-rw-  1 root      root         6, 519 Feb 01 07:07 ptyp7
nrw-rw-rw-  1 root      root              0 Feb 01 07:00 random
dr--r--r--  1 root      root              2 Feb 01 07:01 screen
nrw-rw-rw-  1 root      root              0 Jan 01  1970 sd_bus
brw-------  1 root      root        11,   0 Feb 01 07:00 sdc0
brw-------  1 root      root         1,  12 Feb 01 07:00 sdc0t12
drwxrwxrwt  2 root      root              1 Feb 01 07:07 sem
crw-rw-rw-  1 root      root         3,   1 Feb 01 07:08 ser1
crw-rw-rw-  1 root      root         3,  10 Feb 01 07:00 ser10
crw-rw-rw-  1 root      root         3,   3 Feb 01 07:08 ser3
crw-rw-rw-  1 root      root        12,   1 Feb 01 07:07 serdun1
drwxrwxrwx  2 root      root              0 Feb 01 07:08 shmem
crw-rw-rw-  1 root      root         0,   1 Feb 01 07:00 slog
dr-xr-xr-x  2 root      root              0 Feb 01 07:08 socket
crw-rw-rw-  1 root      root         1,   5 Feb 01 07:08 stderr
crw-rw-rw-  1 root      root         1,   3 Feb 01 07:08 stdin
crw-rw-rw-  1 root      root         1,   4 Feb 01 07:08 stdout
crw-------  1 root      root         0,   1 Feb 01 07:08 tap
crw-rw-rw-  1 root      root         1,   1 Feb 01 07:08 text
crw-rw-rw-  1 root      root         1,   2 Feb 01 07:08 tty
crw--w----  1 root      root         6,   0 Feb 01 07:08 ttyp0
crw-rw-rw-  1 root      root         6,   1 Feb 01 07:07 ttyp1
crw-rw-rw-  1 root      root         6,   2 Feb 01 07:07 ttyp2
crw-rw-rw-  1 root      root         6,   3 Feb 01 07:07 ttyp3
crw-rw-rw-  1 root      root         6,   4 Feb 01 07:07 ttyp4
crw-rw-rw-  1 root      root         6,   5 Feb 01 07:07 ttyp5
crw-rw-rw-  1 root      root         6,   6 Feb 01 07:07 ttyp6
crw-rw-rw-  1 root      root         6,   7 Feb 01 07:07 ttyp7
crw-------  1 root      root         0,   1 Feb 01 07:08 tun0
crw-------  1 root      root         0,   1 Feb 01 07:08 tun1
crw-------  1 root      root         0,   1 Feb 01 07:08 tun2
crw-------  1 root      root         0,   1 Feb 01 07:08 tun3
drwxrwxrwx  2 root      root              0 Feb 01 07:08 tymem
crw-rw-rw-  1 root      root         0,   1 Feb 01 07:07 ugzzf
nrw-rw-rw-  1 root      root              0 Feb 01 07:00 urandom
crw-rw-rw-  1 root      root         1,   6 Feb 01 07:08 zero

`top -i 1 -d`#

https://www.qnx.com/developers/docs/6.5.0SP1.update/com.qnx.doc.neutrino_utilities/t/top.html

Computing times...87 processes; 404 threads;
CPU states: 90.4% idle, 7.8% user, 1.6% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:06   1.67% SensorHandler
        1    11  12 Run       0:00:00   1.67% kernel
   389151     4  57 Sem       0:00:02   1.27% ECD
  1015892     1  12 Rply      0:00:00   0.78% top
   389151     3  52 Rcv       0:00:01   0.58% ECD
   442414     2  12 Sem       0:00:00   0.39% CarServices
   413737     2  15 Sem       0:00:00   0.39% MostCanRouter
    49163     3  20 Intr      0:00:00   0.29% EasyLinkMgr
   430124     5  10 CdV       0:00:00   0.19% j9
   495680    14  14 CdV       0:00:00   0.19% TunerManager_SDARS

             Min        Max       Average
CPU idle:     90%        90%        90%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

# top -i 10 -d
Computing times...87 processes; 404 threads;
CPU states: 90.0% idle, 8.4% user, 1.4% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:06   2.35% SensorHandler
        1    10  12 Run       0:00:00   1.47% kernel
   389151     4  57 Sem       0:00:03   1.07% ECD
  1024084     1  12 Rply      0:00:00   0.78% top
   442414     2  12 Sem       0:00:00   0.49% CarServices
   430124    19  13 CdV       0:00:05   0.39% j9
   495680    16  10 CdV       0:00:01   0.39% TunerManager_SDARS
   413737     2  15 Sem       0:00:00   0.29% MostCanRouter
   389151     3  52 Rcv       0:00:01   0.19% ECD
    49163     3  20 Intr      0:00:00   0.19% EasyLinkMgr

             Min        Max       Average
CPU idle:     90%        90%        90%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

87 processes; 404 threads;
CPU states: 91.6% idle, 7.6% user, 0.6% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:06   2.25% SensorHandler
   430124     4  13 CdV       0:00:03   0.69% j9
        1    10  12 Run       0:00:00   0.65% kernel
   389151     4  57 Sem       0:00:03   0.59% ECD
   389151     3  52 Rcv       0:00:01   0.41% ECD
   430124    19  13 CdV       0:00:05   0.31% j9
    49163     3  20 Intr      0:00:00   0.29% EasyLinkMgr
   655437     2  10 Rdy       0:00:00   0.23% AndroidAuto
   495680    16  10 CdV       0:00:01   0.21% TunerManager_SDARS
   430124    12  12 CdV       0:00:00   0.13% j9

             Min        Max       Average
CPU idle:     90%        91%        90%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

87 processes; 404 threads;
CPU states: 92.6% idle, 6.6% user, 0.7% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:07   1.70% SensorHandler
        1    10  12 Run       0:00:00   0.70% kernel
   389151     4  57 Sem       0:00:03   0.60% ECD
    49163     3  20 Intr      0:00:01   0.40% EasyLinkMgr
   430124     4  13 CdV       0:00:03   0.28% j9
   389151     3  52 Rcv       0:00:01   0.28% ECD
   430124    19  13 CdV       0:00:05   0.22% j9
   495680    16  10 CdV       0:00:01   0.20% TunerManager_SDARS
   430124    10  16 Sem       0:00:00   0.20% j9
  1024084     1  12 Rply      0:00:00   0.20% top

             Min        Max       Average
CPU idle:     90%        92%        91%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

87 processes; 404 threads;
CPU states: 90.3% idle, 9.1% user, 0.4% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:07   1.88% SensorHandler
   430124    19  13 CdV       0:00:05   1.36% j9
   389151     4  57 Sem       0:00:03   1.00% ECD
   389151     3  52 Rcv       0:00:01   0.60% ECD
        1    10  12 Run       0:00:00   0.40% kernel
   430124     4  13 CdV       0:00:03   0.38% j9
   495680    16  10 CdV       0:00:01   0.22% TunerManager_SDARS
    49163     3  20 Intr      0:00:01   0.22% EasyLinkMgr
   442414     2  12 Sem       0:00:00   0.20% CarServices
   487489     3  10 Sem       0:00:00   0.20% TunerManager

             Min        Max       Average
CPU idle:     90%        92%        90%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

87 processes; 404 threads;
CPU states: 91.9% idle, 7.5% user, 0.5% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:07   2.12% SensorHandler
   389151     4  57 Sem       0:00:03   0.84% ECD
        1    10  12 Run       0:00:00   0.52% kernel
   430124    19  13 CdV       0:00:05   0.46% j9
   389151     3  52 Rcv       0:00:01   0.46% ECD
   430124     4  13 CdV       0:00:03   0.42% j9
    49163     3  20 Intr      0:00:01   0.30% EasyLinkMgr
   495680    16  10 CdV       0:00:01   0.24% TunerManager_SDARS
   413737     2  15 Sem       0:00:00   0.20% MostCanRouter
   655437     2  10 Sem       0:00:00   0.18% AndroidAuto

             Min        Max       Average
CPU idle:     90%        92%        90%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

87 processes; 404 threads;
CPU states: 92.8% idle, 6.4% user, 0.6% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:07   1.96% SensorHandler
   389151     4  57 Sem       0:00:03   0.78% ECD
        1    10  12 Run       0:00:00   0.68% kernel
   389151     3  52 Rcv       0:00:01   0.46% ECD
   430124     4  13 CdV       0:00:03   0.24% j9
   430124    19  13 CdV       0:00:05   0.20% j9
   430124    13  12 CdV       0:00:00   0.18% j9
   413737     2  15 Sem       0:00:00   0.18% MostCanRouter
   671823     2  10 Sem       0:00:00   0.18% CarPlay
    49163     3  20 Intr      0:00:01   0.16% EasyLinkMgr

             Min        Max       Average
CPU idle:     90%        92%        91%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

87 processes; 404 threads;
CPU states: 90.3% idle, 8.8% user, 0.7% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:07   1.79% SensorHandler
   430124    19  13 CdV       0:00:05   1.37% j9
   389151     4  57 Sem       0:00:03   0.99% ECD
        1    10  12 Run       0:00:00   0.73% kernel
   430124     4  13 CdV       0:00:03   0.47% j9
   389151     3  52 Rcv       0:00:01   0.39% ECD
    49163     3  20 Intr      0:00:01   0.37% EasyLinkMgr
   495680    16  10 CdV       0:00:01   0.19% TunerManager_SDARS
   430124     5  10 CdV       0:00:00   0.19% j9
  1024084     1  12 Rply      0:00:00   0.19% top

             Min        Max       Average
CPU idle:     90%        92%        90%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

87 processes; 404 threads;
CPU states: 92.0% idle, 7.3% user, 0.5% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:07   2.07% SensorHandler
   389151     4  57 Sem       0:00:03   0.79% ECD
        1    10  12 Run       0:00:00   0.57% kernel
   430124     4  13 CdV       0:00:03   0.47% j9
   430124    19  13 CdV       0:00:05   0.41% j9
   389151     3  52 Rcv       0:00:01   0.35% ECD
  1024084     1  12 Rply      0:00:00   0.25% top
    49163     3  20 Intr      0:00:01   0.23% EasyLinkMgr
   655437     2  10 Rdy       0:00:00   0.23% AndroidAuto
   413737     2  15 Sem       0:00:00   0.19% MostCanRouter

             Min        Max       Average
CPU idle:     90%        92%        91%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

87 processes; 404 threads;
CPU states: 91.8% idle, 7.6% user, 0.5% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:07   2.09% SensorHandler
   389151     4  57 Sem       0:00:03   0.97% ECD
        1    10  12 Run       0:00:00   0.51% kernel
   389151     3  52 Rcv       0:00:01   0.41% ECD
   430124     4  13 CdV       0:00:03   0.37% j9
   495680    16  10 CdV       0:00:01   0.29% TunerManager_SDARS
    49163     3  20 Intr      0:00:01   0.27% EasyLinkMgr
   430124    19  13 CdV       0:00:05   0.25% j9
   442414     2  12 Sem       0:00:00   0.15% CarServices
   430124    13  12 CdV       0:00:00   0.15% j9

             Min        Max       Average
CPU idle:     90%        92%        91%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

87 processes; 404 threads;
CPU states: 91.4% idle, 8.0% user, 0.5% kernel
Memory: 0 total, 489M avail, page size 4K

      PID   TID PRI STATE    HH:MM:SS    CPU  COMMAND
   442413     3  12 Sem       0:00:07   1.97% SensorHandler
   430124    19  13 CdV       0:00:05   1.19% j9
   389151     4  57 Sem       0:00:03   0.95% ECD
   389151     3  52 Rcv       0:00:01   0.45% ECD
        1    10  15 Rcv       0:00:00   0.35% kernel
   430124     4  13 CdV       0:00:03   0.25% j9
    49163     3  20 Intr      0:00:01   0.21% EasyLinkMgr
        1    11  12 Run       0:00:00   0.19% kernel
   413737     2  15 Sem       0:00:00   0.17% MostCanRouter
   442413     6  52 Rcv       0:00:00   0.17% SensorHandler

             Min        Max       Average
CPU idle:     90%        92%        91%
Mem Avail:   489MB      489MB      489MB
Processes:    87         87         87
Threads:     404        404        404

`lsusb`#

USB 0 (XHCI) v1.10, v1.01 DDK, v1.01 HCD

Device Address             : 1
Vendor                     : 0x0424
Product                    : 0x2640
Class                      : 0x09 (Hub)
Subclass                   : 0x00
Protocol                   : 0x01
Hub Number Ports           : 3
Hub Characteristics        : 0x000d (Individual power, Compound, Individual over-current)
Hub Power On->Good         : 100 ms
Hub Power Requirements     : 1 mA

Device Address             : 2
Vendor                     : 0x0424 (Generic)
Product                    : 0x4040 (Ultra Fast Media Reader)
Class                      : 0x00 (Independent per interface)

USB 0 (XHCI) v1.10, v1.01 DDK, v1.01 HCD

Device Address             : 1
Vendor                     : 0x0b95 (ASIX Elec. Corp.)
Product                    : 0x7720 (AX88x72A)
Class                      : 0xff (Vendor-specific)
Subclass                   : 0xff
Protocol                   : 0x00

`pidin arguments`#

     pid Arguments
       1 procnto-smp-instr -mL -F 10000
   16386 devc-seromap -T56 -O 262144 -opriority=26 -e -F -b115200 -u3 -c48000000/16 0x48020000^2,106
   16387 slogger
   16388 pipe
   20485 devf-generic -r -x1 edma=8,clk=64000000,dc=0
   20486 ksh
   28681 devb-sd cam pnp,bounce=64k disk name=mmc blk noatime,cache=512K,commit=high qnx6 snapshot=0 sd d=sddriver_j6:if=2,name=emmc
   36872 TimeStampDriver
   49162 SlogPrinter
   49163 EasyLinkMgr
   49165 devc-pty
   65551 io-usb -c -d omap5-xhci ioport=0x48890000,irq=108,verbose=0
   65552 io-usb -c -d omap5-xhci ioport=0x488D0000,irq=110,verbose=0 -n/dev/io-usb1/io-usb
  147468 screen-cda -a /persistence/splash/splash.xml -A /extbin/apps/splash/splash_default.xml -z
  213010 pps
  221203 dumper -m -d /tmp
  237589 i2c_drax -p0x4807A000 -i94
  241686 i2c_drax -p0x4807c000 -i92
  245783 i2c_usb_bridge -opnp
  266254 devf-ram -s0,16m,,,512k -i1
  290833 MountIFS -f /extbin/apps/bin/vwjxe.ifs -T -m /ifs1
  311320 MountIFS -f /extbin/apps/bin/delphibin.ifs -T -m /ifs2
  327700 io-pkt-v6-hc -i1 –ptcpip
  331801 io-pkt-v6-hc -i2 -ptcpip stacksize=294912,prefix=/dev/d_ugzzf
  335898 io-pkt-v6-hc -i5 -ptcpip stacksize=16384,prefix=/dev/d_carplay
  339995 devc-seromap -E -F -S -T56 -t14 -u1 -b57600 -c48000000/16 0x4806A000^2,104
  344092 procman -f /etc/procman_core.cfg
  389150 RearViewCam
  389151 ECD
  389152 CPUMonitor -c 5
  389153 PrioWatchdog -n5 -m0x07729C00
  389154 TraceServer
  389155 VIPLogger -t
  389156 SystemManager
  389157 PersistenceManager -t
  389158 DiagnosticsManager
  409639 AudioManager -v1 -t
  413736 Most -v0
  413737 MostCanRouter -v0
  413738 ThermalManager
  430124 /ifs2/j9 -Xmca256k -Xmco128k -Xmo34m -Xmoi0 -Xmn2048k -Xmx36m -Xmjit:code=4096,singlecache -DLOG=all=2 -Dde.vw.mib.startup.order=TARGET -noverify -DuseStartupBootExtension -Dde.vw.mib.main.thread.prio=6 -DGenericEvents.queueOverloadThreshold=400 -Dde.vw.mib.installation.directory=/extbin/apps/hmi/HMI/ -Dde.vw.mib.configuration.directory=/extbin/apps/hmi/HMI/config/ -Dde.vw.mib.resources.directory=/extbin/apps/hmi/Resources/ -Dbundles.properties=/extbin/apps/hmi/HMI/config/bundles.properties -Dthreads.properties=/extbin/apps/hmi/HMI/config/threads.properties -Dlogging.properties=/extbin/apps/hmi/HMI/config/logging.properties -Dsystem.properties=/extbin/apps/hmi/HMI/config/system.properties -Ddebugprobes.config.path=/extbin/apps/hmi/HMI/config -Ddsiexclude.properties=/extbin/apps/hmi/HMI/config/dsiexclude.properties -DConfigurationManager.SdRoots=/sdc1;/sdc2 -Dviewhandler.format=zip -Dvw.mib.resources=/extbin/apps/hmi/HMI/res -DGenericEvents.activatePooling=true -DGenericEventPool.poolSize=2048 -DGenericEventPool.poolPreFill=512 -DdsiTimeout=20000 -DdomainTimeout=120000 -Dde.audi.gem.path.scriptfifo=/etc -Dde.audi.gem.path.esdfiles=/extbin/apps/GEM_PROD -DSTARTUP_LUM_READY=true -Dde.vw.mib.asl.internal.util.SystemKeyUtil.abtMaskSetting=255 -Dde.vw.mib.log4mib.watchdog.enabled=true -Dde.vw.mib.asl.media.startupListTimer=20000 -Dde.vw.mib.format.4asl.rulesets=/extbin/apps/hmi/HMI/config/locationformattingrules_en_US.properties -Dde.vw.mib.format.4asl.rulesets.directory=/extbin/apps/hmi/HMI/config -Dde.vw.mib.useNewScreenOff=true -Dde.vw.mib.asl.internal.system.updateGesture2TimeScaleFactor=10 -Dde.vw.mib.lsc.languagechangetimeout4language=60000 -Dde.vw.mib.lsc.languagechangetimeouttotal=60000 -Dde.vw.mib.log4mib.mlp.enabled=true -Dde.vw.mib.personalization.useDsiUpdates=true -Dde.vw.mib.driverdistraction.default=ALLOFF -Dde.vw.mib.runmode.is_normal -DheapDumpOnOOM=true -DErrorDumpDir=/extbin/apps/hmi/errlog/ -Dcom.delphi.vw.mib.spi.resourcespath=/extbin/apps/hmi/Resources -Dcom.delphi.vw.mib.spi.file.basedirectory=/extbin/apps/hmi/Resources -Dcom.delphi.vw.mib.spi.file.useobjectswapperjava=false -Dcom.delphi.vw.mib.spi.debug.enable.stdout=true -Dcom.delphi.vw.mib.spi.debug.enable.stderr=true -DJDSI_THREAD_POOL_TYPE=SIMPLE -DJDSI_THREAD_POOL_TYPE=ONE2ONEMAPPING -DJDSI_THREAD_POOL_NUM_THREADS=3 -DJDSI_THREAD_POOL_QUEUE_LIMIT=500 -DJDSI_POOL_THREAD_PRIO=7 -DJDSI_NOTIFIER_QUEUE_SIZE=300 -DJDSI_NOTIFIER_THREAD_PRIO=16 -DJDSI_PROCESS_CONFIG_FILE=/extbin/apps/cfg/apps.txt -DJDSI_DOMAIN_CONFIG_FILE=/extbin/apps/cfg/domains.txt -DJDSI_DEBUG=0 -DJSAL_DEBUG=0 -jcl:foun11 -Dcom.ibm.oti.vm.bootstrap.library.path=/ifs2:/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6:/extbin/apps/J9/bin:/extbin/apps/J9/lib:. -Djava.library.path=/ifs2:/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6:/extbin/apps/J9/bin:/extbin/apps/J9/lib:. -Xbootclasspath:/ifs1/delphi.jxe:/ifs1/MIBHMI.jxe:/extbin/apps/hmi/HMI/jar/TestInterface-H29.319.58.jar:/extbin/apps/J9/lib/charconv.zip:/extbin/apps/J9/lib/jclFoundation11/locale.zip:/extbin/apps/hmi/HMI/jar/GEM.jar:/extbin/apps/hmi/HMI/lib/bcprov-jdk14.jar:/extbin/apps/J9/lib/jclFoundation11/ext/j9jce.jar de.vw.mib.MIBMain
  442411 SystemTimeApp -i3 -p15
  442413 SensorHandler
  442414 CarServices -p12 -t
  442415 devb-cd cdrom name=cdd blk cache=1M,ra=0 cdd spin=300,verify,no_init
  442416 MediaHandler -c../cfg/MHConfig.cfg
  442417 PersistenceServices
  446516 InfotainmentRecorder -n
  446517 SysServices
  454707 DisplayManagement -z
  454710 WavePlayer -f/extbin/apps/cfg/wavePlayerCfg.xml
  454711 ImageLoader
  454713 PictureServices
  454714 SWaP
  454715 inetd -D /etc/inetd.conf
  454717 devb-sd cam pnp,bounce=64k disk name=sdc blk noatime,cache=512K, dos exe=all sd d=sddriver_j6:if=0
  475192 dvfsmgr-j6 -c /ramdisk/dvfs_j6.conf -o /ramdisk/dvfs_pwrtbl_j6.conf -Di2c_dev=5
  475199 ClusterServices -v0
  487489 TunerManager -v1 -g60002 -t
  487490 devc-seromap -E -F -S -T56 -t16 -u10 -b19200 -c48000000/16 0x4AE2B000^2,113
  495680 TunerManager_SDARS
  512067 dvfs_client
  548914 MediaServer -c/extbin/apps/cfg/MediaServerConfig.xml -t
  548924 PhoneServer -v1 -t
  561181 splash
  561223 HKPLogger -t
  561224 DSPLogger -t
  561226 UnitInfo
  634948 AppConnect -v1
  634949 random -p
  634953 mqueue
  655435 MirrorLinkApp
  655436 AndroidAutoServices
  655437 AndroidAuto
  671822 CarPlayServices
  671823 CarPlay
  671824 in.telnetd
  671826 Exlap
  696382 SpeechManager -fttspath=/lng/lng/tts -fasrpath=/lng/lng/asr -fdbname=/extbin/apps/cfg/SMConfig.db
  708615 SpeechServices -fversion=/extbin/apps/hmi/Resources/skin1/Speech/nuance_res/target/version.txt
  708678 -ksh
  708689 InstallationServices
  712789 InstallationManager
  712790 DiagSwVersionMonitor
  716889 MOSTUpdate -s
  753747 ABTUpdate -s
 1286228 elvis
 1290327 /bin/ksh -c /bin/ksh
 1294424 /bin/ksh
 1445978 UnitInfo
 1572955 pidin arguments

`pidin env`#

     pid name               Environment
       1 /procnto-smp-instr PATH=/proc/boot:/extbin/apps/bin:/ffs/sbin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:. LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6
   16386 /boot/devc-seromap
   16387 proc/boot/slogger
   16388 proc/boot/pipe
   20485 /boot/devf-generic
   20486 proc/boot/ksh      SYSNAME=nto TERM=qansi SHELL=/bin/ksh ADAPTERTYPE=mcs7830 HOME=/home/delphi GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_ARENA_SIZE=65536 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:.
   28681 proc/boot/devb-sd  _=/proc/boot/devb-sd PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
   36872 ot/TimeStampDriver _=/proc/boot/TimeStampDriver PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
   49162 c/boot/SlogPrinter _=/proc/boot/SlogPrinter PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
   49163 c/boot/EasyLinkMgr _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
   49165 ffs/sbin/devc-pty  _=/ffs/sbin/devc-pty PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
   65551 proc/boot/io-usb   _=/proc/boot/io-usb PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
   65552 proc/boot/io-usb   _=/proc/boot/io-usb PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  147468 oc/boot/screen-cda _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  213010 n/apps/usr/bin/pps _=/extbin/apps/usr/bin/pps PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  221203 pps/usr/bin/dumper _=/extbin/apps/usr/bin/dumper PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  237589 /apps/bin/i2c_drax _=/extbin/apps/bin/i2c_drax PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  241686 /apps/bin/i2c_drax _=/extbin/apps/bin/i2c_drax PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  245783 bin/i2c_usb_bridge _=/extbin/apps/bin/i2c_usb_bridge PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  266254 ffs/sbin/devf-ram  _=/ffs/sbin/devf-ram PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  290833 proc/boot/MountIFS _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  311320 proc/boot/MountIFS _=/proc/boot/MountIFS PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  327700 ifs2/io-pkt-v6-hc  _=/ifs2/io-pkt-v6-hc PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  331801 ifs2/io-pkt-v6-hc  _=/ifs2/io-pkt-v6-hc PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  335898 ifs2/io-pkt-v6-hc  _=/ifs2/io-pkt-v6-hc PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  339995 /boot/devc-seromap _=/proc/boot/devc-seromap PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  344092 proc/boot/procman  _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  389150 ifs2/RearViewCam   _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  389151 proc/boot/ECD      _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  389152 ifs2/CPUMonitor    _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  389153 s/bin/PrioWatchdog _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  389154 ifs2/TraceServer   _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  389155 apps/bin/VIPLogger _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  389156 ifs2/SystemManager _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  389157 PersistenceManager _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  389158 DiagnosticsManager _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  409639 ifs2/AudioManager  _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  413736 ifs2/Most          _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  413737 /bin/MostCanRouter _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  413738 bin/ThermalManager _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  430124 ifs2/j9            _=/ifs2/on PATH=/ifs2:/extbin/apps/J9/bin:/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_BOOTLIBRARY_PATH=/ifs2:/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6:/extbin/apps/J9/bin:/extbin/apps/J9/lib:. J9VM=on -Xaps=System  /ifs2/j9 LD_LIBRARY_PATH=/ifs2:/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6:/extbin/apps/J9/bin:/extbin/apps/J9/lib:. HOME=/home/delphi JAVA_HOME2=/extbin/apps/J9 JAVA_HOME=/ifs2 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi J9=on -Xaps=System  /ifs2/j9 ADAPTERTYPE=mcs7830 SYSNAME=nto
  442411 /bin/SystemTimeApp _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  442413 /bin/SensorHandler _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  442414 ifs2/CarServices   _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  442415 n/apps/bin/devb-cd _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  442416 s/bin/MediaHandler _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  442417 ersistenceServices _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  446516 fotainmentRecorder _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  446517 ps/bin/SysServices _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  454707 /DisplayManagement _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  454710 ifs2/WavePlayer    _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  454711 ifs2/ImageLoader   _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  454713 s2/PictureServices _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  454714 ifs2/SWaP          _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  454715 apps/usr/bin/inetd _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  454717 proc/boot/devb-sd  _=/proc/boot/devb-sd PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  475192 usr/bin/dvfsmgr-j6 _=/extbin/apps/usr/bin/dvfsmgr-j6 PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_ARENA_SIZE=65536 SHELL=/bin/ksh TERM=qansi LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  475199 in/ClusterServices _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  487489 s/bin/TunerManager _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  487490 /boot/devc-seromap _=/proc/boot/devc-seromap PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_ARENA_SIZE=65536 SHELL=/bin/ksh TERM=qansi LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  495680 TunerManager_SDARS _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  512067 sr/bin/dvfs_client _=/extbin/apps/usr/bin/dvfs_client PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_ARENA_SIZE=65536 SHELL=/bin/ksh TERM=qansi LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  548914 ps/bin/MediaServer _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  548924 ps/bin/PhoneServer _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  561181 in/apps/bin/splash _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  561223 apps/bin/HKPLogger _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  561224 apps/bin/DSPLogger _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  561226 ffs/sbin/UnitInfo  _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  634948 pps/bin/AppConnect _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  634949 pps/usr/bin/random _=/extbin/apps/usr/bin/random PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_ARENA_SIZE=65536 SHELL=/bin/ksh TERM=qansi LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  634953 pps/usr/bin/mqueue _=/extbin/apps/usr/bin/mqueue PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 MALLOC_ARENA_SIZE=65536 SHELL=/bin/ksh TERM=qansi LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi ADAPTERTYPE=mcs7830 SYSNAME=nto
  655435 /bin/MirrorLinkApp _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  655436 ndroidAutoServices _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  655437 ps/bin/AndroidAuto _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  671822 in/CarPlayServices _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  671823 n/apps/bin/CarPlay _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  671824 ps/usr/bin/telnetd _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  671826 bin/apps/bin/Exlap _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  696382 /bin/SpeechManager _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  708615 bin/SpeechServices _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  708678 bin/ksh            DISPLAY=Vandelay.localdomain:0 TERM=xterm-256color SHELL=/bin/ksh HOME=/ LOGNAME=root USER=root PATH=/proc/boot:/extbin/apps/bin:/ffs/sbin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:.
  708689 stallationServices _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  712789 nstallationManager _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  712790 agSwVersionMonitor _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  716889 pps/bin/MOSTUpdate _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
  753747 apps/bin/ABTUpdate _=/proc/boot/on PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh MALLOC_ARENA_SIZE=65536 LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 HOME=/home/delphi MALLOC_BAND_CONFIG_STR=8:16,32,0:24,32,0:32,32,0:48,24,0:64,24,0:80,24,0:96,16,0:128,8,0 GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 SYSNAME=nto
 1605716 proc/boot/pidin    _=/proc/boot/pidin PATH=/proc/boot:/extbin/apps/bin:/ifs2:/extbin/apps/usr/bin:/extbin/apps/usr/bin/graphics:/ffs/sbin:. SHELL=/bin/ksh USER=root LD_LIBRARY_PATH=/proc/boot:/extbin/apps/lib:/ifs2:/extbin/apps/usr/lib/graphics:/extbin/apps/usr/lib/graphics/jacinto6 DISPLAY=Vandelay.localdomain:0 HOME=/home/delphi GRAPHICS_ROOT=/extbin/apps/usr/lib/graphics/jacinto6 TERM=qansi ADAPTERTYPE=mcs7830 LOGNAME=root SYSNAME=nto

MIB2 Developer Mode HomeLink Rearview Mirror

MIB2 Composition Media Hacking

Contents

MIB2 Composition Media Hacking#

Root Shell#

Enabling Development Mode#

Enabling Ethernet#

Telnet or FTP#

Dumps#

Filesystem#

`uname -a`#

`df -h`#

`mount`#

`showmem -S`#

`ls -lah /dev`#

`top -i 1 -d`#

`lsusb`#

`pidin arguments`#

`pidin env`#

Comments

MIB2 Composition Media Hacking

Contents

MIB2 Composition Media Hacking#

Root Shell#

Enabling Development Mode#

Enabling Ethernet#

Telnet or FTP#

Dumps#

Filesystem#

uname -a#

df -h#

mount#

showmem -S#

ls -lah /dev#

top -i 1 -d#

lsusb#

pidin arguments#

pidin env#

Comments

`uname -a`#

`df -h`#

`mount`#

`showmem -S`#

`ls -lah /dev`#

`top -i 1 -d`#

`lsusb`#

`pidin arguments`#

`pidin env`#
