T-Mobile Franklin T9 Hacking

My goal for this project is to have an LTE hotspot in my car that shuts off automatically when I get home to avoid wasting data. I’m using it with Google Fi.

Loading...

Downgrade Firmware

I bought my unit from a seller on eBay brand new locked to the T-Mobile network (which is fine, Google Fi is a T-Mobile MVNO) for $37 in November 2021. Sadly it came with firmware R717F21.FR.2602 which removed the hidden menus. Thankfully someone figured out how to downgrade this.

Follow these instructions to downgrade to firmware R717F21.FR.1311: https://snt.sh/2021/09/rooting-the-t-mobile-t9-franklin-wireless-r717-again/

For me, once I downgraded the firmware the hotspot could no longer get service even though the Google Fi data-only SIM wasn’t removed. The only fix I found was to upgrade the firmware to a more recent version. Firmware R717F21.FR.2000 fixed the issue and still has the hidden pages. Download R717F21.FR.2000_ota_update_all.enc from: https://mega.nz/folder/FJ8wWYAJ#Q1oUEtIUJrtjB1atkOAXrA

(Got that link from: https://www.howardforums.com/showthread.php/1921612-Franklin-T9-Test-Drive-stuck-on-Welcome-This-is-the-fix)

SSH and Root

After downgrading the firmware the next step is to enable SSH access so I can log in as root and have full control. These steps came from: https://snt.sh/2020/09/rooting-the-t-mobile-t9-franklin-wireless-r717/

Download current configuration
Unpack the configuration file
# Decrypt.
openssl enc -aes-128-cbc -d -k "frkenc##[email protected]" -md md5 -in hotspot_cfg.bin -out hotspot_cfg.tgz
# Extract nested tar.gz files.
mkdir -p hotspot_cfg/hotspot_cfg
tar -xzf hotspot_cfg.tgz -C hotspot_cfg
tar -xzf hotspot_cfg/hotspot_cfg.tar -C hotspot_cfg/hotspot_cfg
Edit hotspot_cfg/hotspot_cfg/data/configs/mobileap_cfg.xml
  • Look for <Ssh>0</Ssh> and change it to 1

Repack the configuration file
# Package inner tar.gz file.
tar -czf hotspot_cfg/hotspot_cfg.tar -C hotspot_cfg/hotspot_cfg .
rm -r hotspot_cfg/hotspot_cfg
# Update hash from new inner tar.gz file.
openssl dgst -md5 < hotspot_cfg/hotspot_cfg.tar |awk '{print "hotspot_cfg.tar="$2}' > hotspot_cfg/hashfile
# Package outer tar.gz file.
tar -czf hotspot_cfg.tgz -C hotspot_cfg .
rm -r hotspot_cfg
# Encrypt.
openssl enc -aes-128-cbc -k "frkenc##[email protected]" -md md5 -in hotspot_cfg.tgz -out hotspot_cfg_new.bin
Upload new configuration file
Generate SSH key to use instead of password authentication
# On local computer
ssh-keygen -t rsa -b 4096 -f ~/.ssh/franklin_t9
cat ~/.ssh/franklin_t9.pub
# On hotspot
mkdir /home/root/.ssh
touch /home/root/.ssh/authorized_keys  # Paste public key in this file

Flash Dumps

https://mega.nz/folder/K1ITBaqY#ess3TbmfhzrKCe_EyU5jSg

The dumps in the above link were created using the below command. I wasn’t able to dump mtd2. Every time I tried to read it the hotspot started to hang and I had to power cycle it.

for i in 0 1 {3..14}; do ssh 192.168.0.1 dd "if=/dev/mtd${i}ro" |pv > "mtd${i}ro.bin"; done

Something funny I noticed when running strings mtd0ro-sbl.bin:

gcc_spmi_ser_clk
gcc_spmi_ahb_clk
`i9FBj
 pGO
BF1F F
fs_pm_ptable_nand.c
@!hF
[email protected]
@"|@
`a|
DBGP
 pGpGp
DENTAL PLAN!
`BiB
 pGo
zppG
fs_efs2.c
fs_efs2.c

Static DHCP

One feature that I need for my project that’s missing is static DHCP. I want certain clients to always get the same IP address without having to configure them to use a static IP (since they also connect to other networks). I enabled this by running the following commands:

# Enable dnsmasq conf-dir.
echo "conf-dir=/etc/dnsmasq.d" >> /etc/default/dnsmasq.conf

# Add configuration to separate file (last column optional).
cat > /etc/dnsmasq.d/static_dhcp.conf <<EOF
dhcp-host=bridge0,74:72:f3:90:ef:f6,192.168.0.10,raspberrypi
dhcp-host=bridge0,96:9c:a2:b5:ae:70,192.168.0.11
EOF

This survives reboots and user re-configurations from the hotspot web interface.

Disable WiFi When Home

The main goal of this project is to kick off wireless users when the hotspot sees my home WiFi. I’m accomplishing this by having a bash script that starts when the hotspot boots and does a WiFi scan every minute looking for my home SSID. When it sees it the script will turn off the WiFi access point of the hotspot.

It will keep scanning every minute until it no longer sees my home SSID for a couple of scans (sometimes SSIDs intermittently don’t show up). Once that condition is met the script will re-enable the hotspot’s WiFi access point.

Save to /etc/default/wifi_toggle
HOME_SSID="your home ssid here"
Save to /usr/bin/wifi_toggle.sh
#!/bin/bash
#
# Copyright (c) 2021 Robpol86. All Rights Reserved.
#
# Disables hostapd while home SSID is present in a WiFi access point scan.
#

set -eu

CONFIRM_GONE_ITER=2  # Verify home SSID is missing from scan these many times.
HOME_SSID="FBI SURVEILLANCE VAN"  # Your home WiFi SSID.
INTERVAL=1m  # Sleep between scans.
START_GRACE_PERIOD=5m  # Sleep at the start of this script.

if [ -f /etc/default/wifi_toggle ]; then
        . /etc/default/wifi_toggle
fi

# Scan and search for SSID.
is_home_visible() {
    iw dev wlan0 scan |sed -n 's/^\s\+SSID: //p' |grep -qxF "$HOME_SSID"
}

# Grace period on start.
sleep "$START_GRACE_PERIOD"

# Main loop.
count=0
while true; do
    if is_home_visible; then
        hostapd_cli -iwlan0 disable
        count=0
    elif (( count >= CONFIRM_GONE_ITER )); then
        hostapd_cli -iwlan0 enable
        count=0
    else
        : $((count++))
    fi

    sleep "$INTERVAL"
done
Save to /etc/init.d/start_wifi_toggle
#!/bin/bash
#
# Copyright (c) 2021 Robpol86. All Rights Reserved.
#
# Starts the wifi_toggle daemon
#

### BEGIN INIT INFO
# Provides:          wifi_toggle
# Required-Start:    $local_fs $networking
# Required-Stop:     $local_fs
# Default-Start:     3 4 5
# Default-Stop:      0 1 2 6
# Short-Description: Disables hostapd while home SSID is present
### END INIT INFO

PATH=/sbin:/bin:/usr/sbin:/usr/bin
PIDFILE=/var/run/wifi_toggle.pid

case "$1" in
    start)
        echo "Starting wifi_toggle... $*"
        start-stop-daemon -S -p "$PIDFILE" -m -b -a /bin/bash -- /usr/bin/wifi_toggle.sh
        echo "done"
        ;;
    stop)
        echo -n "Stopping wifi_toggle: "
        start-stop-daemon -K -p "$PIDFILE" && rm "$PIDFILE"
        echo "done"
        ;;
    restart)
        $0 stop
        $0 start
        ;;
    *)
        echo "Usage: start_wifi_toggle { start | stop | restart }" >&2
        exit 1
        ;;
esac

exit 0
Enable the service
chmod +x /usr/bin/wifi_toggle.sh /etc/init.d/start_wifi_toggle
update-rc.d start_wifi_toggle defaults
/etc/init.d/start_wifi_toggle start

Custom Logos

You can easily change the logo on the little LCD by editing a PNG file. Since my unit is locked to T-Mobile I used:

  • /usr/franklin/mwin/resource/image/default/BW/t_mobile_idle_logo.png

I edited that file using Paint 3D to keep the transparency.

Hacked Logo

Fastboot

There are a couple of ways to get the device to boot into fastboot mode: the hard way and the easy way. This hotspot is basically an Android device without the screen or phone part.

Hard Way

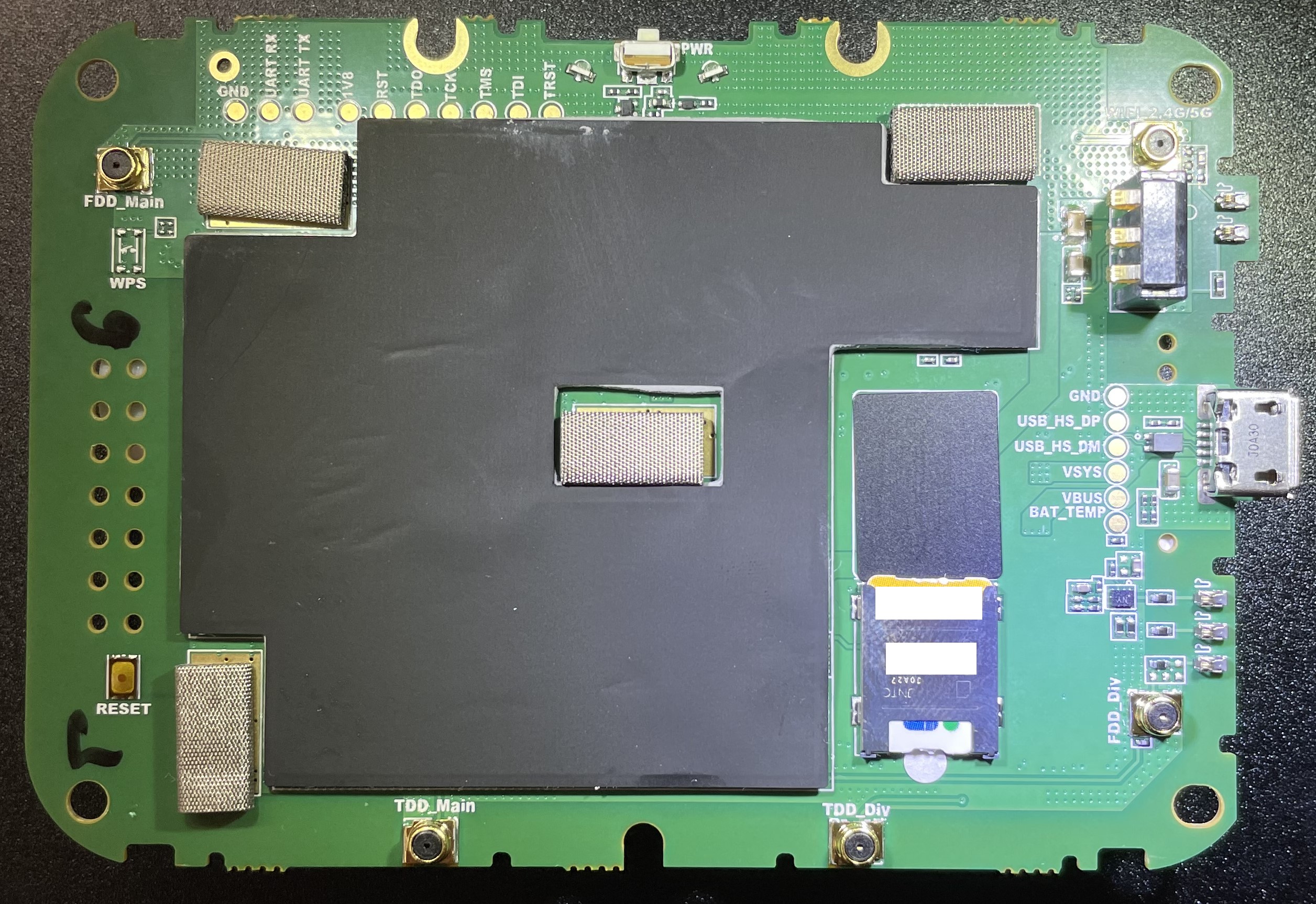

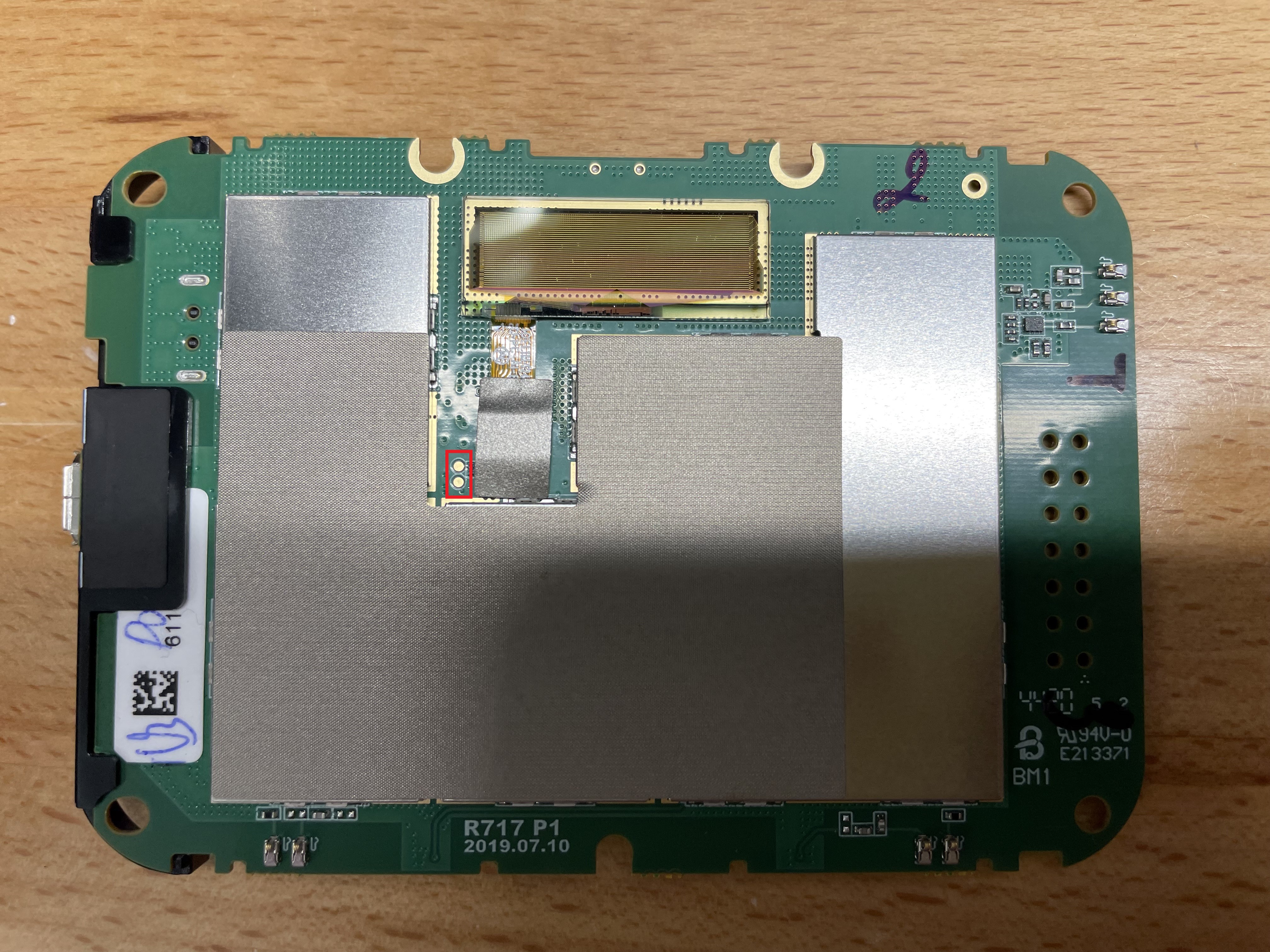

The hard way to get into fastboot is to open up the device and short a couple of pins:

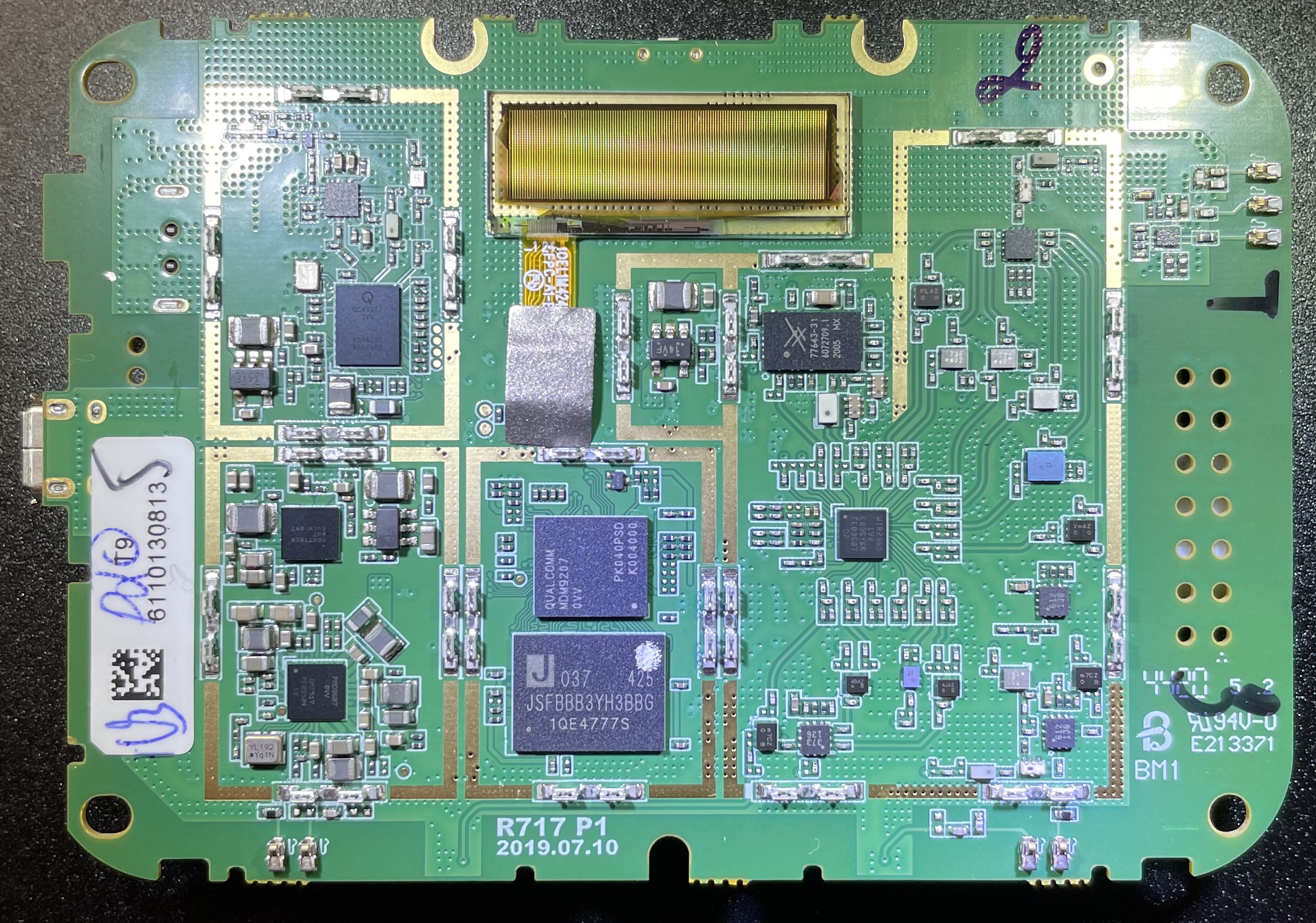

  1. Remove circuit board from case

  2. Plug in USB power

  3. Short the two pins circled in red in the image below

  4. Power on with the power button

i.imgur.com/gi7e24zh.jpg

The device should show up when you run fastboot devices within a couple of seconds, and the hotspot’s display will just say “Welcome” the entire time.

i.imgur.com/pJ9WuSfh.png

To get out of fastboot mode just power cycle it or run fastboot continue.

Easy Way

There’s an easier way to get into fastboot mode if you have root SSH access. There’s no need to open up the device either. Just SSH in and run the command:

reboot-bootloader

ADB

Enabling ADB takes more than just running /sbin/adbd. You need to change the USB mode with a conveniently installed command: usb_composition

When you run usb_composition you’ll get the current setting, the list of available settings, and a prompt where you can change the current setting. In my case the original setting was 9057 - RNDIS : ECM. To enable ADB I chose 902D - RNDIS + DIAG + ADB [Android]. This setting enabled ADB and still kept USB networking so I could still SSH and have network access over USB.

Pid number : 902D
Choose core: y - hsic, n - hsusb  ? (y/n)n
Would you like it to be the default composition ? (y/n)y
Would you like the composition to change immediately? (y/n)y
Are you performing the composition switch from adbd? (y/n)n
ln: /sbin/usb/compositions/hsusb_next: File exists

The device should immediately show up when you run adb devices.

i.imgur.com/dFVo3HQh.png

Automatic Power On

Unfortunately this hotspot does not automatically boot up upon being powered, you have to press the power button. I spent an entire day trying to find a software solution for this but sadly I could not. Not even fastboot oem off-mode-charge 0 worked. I ended up with a physical solution instead.

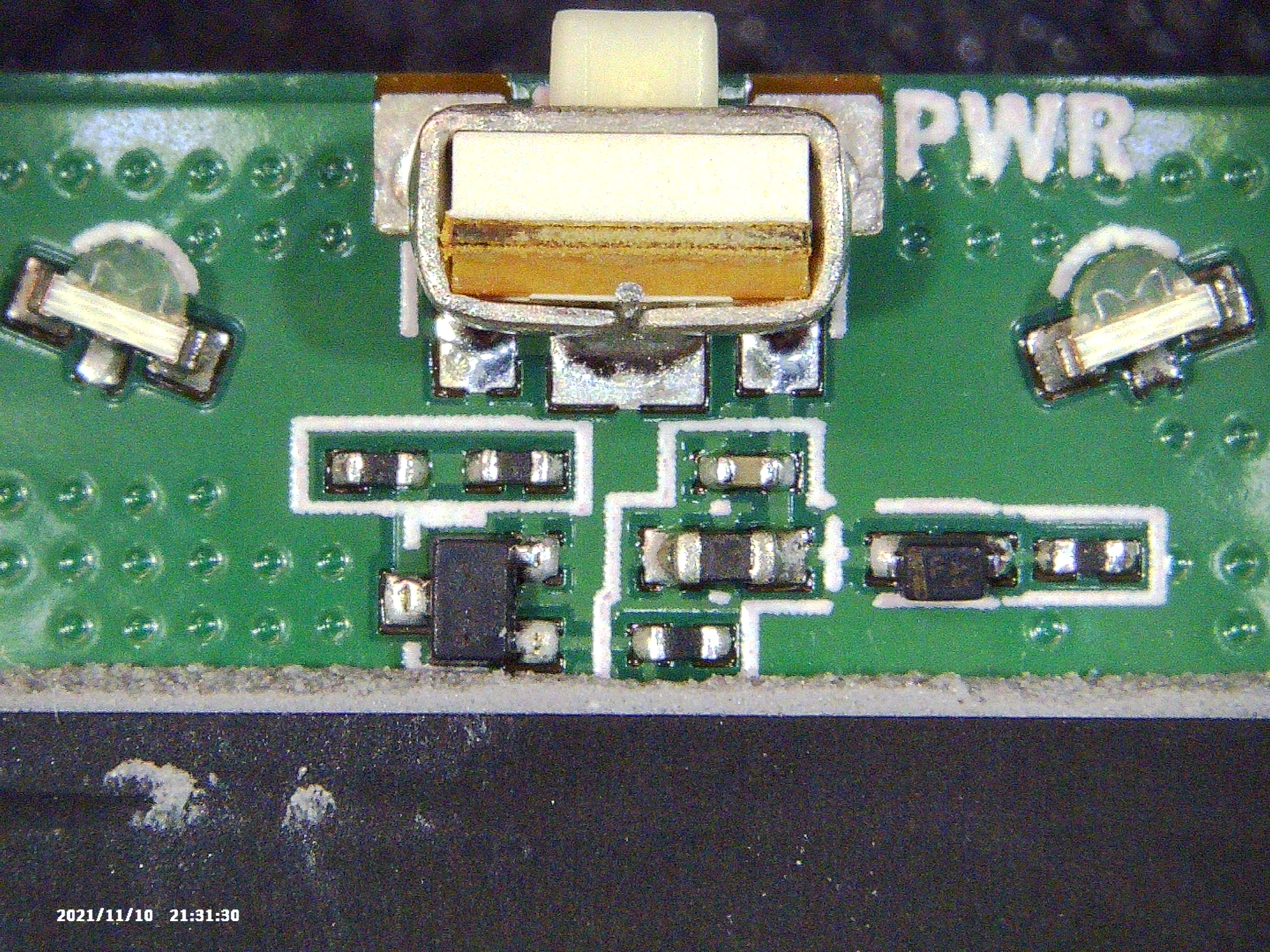

It turns out if you hold down the power button when you plug in the device, it will fully boot up. Luckily if you continue to hold the button it won’t shut back down. Knowing this the solution is to cut a piece of plastic into a “U” shape and wedge it between the case and the button so it’s always pressed down.

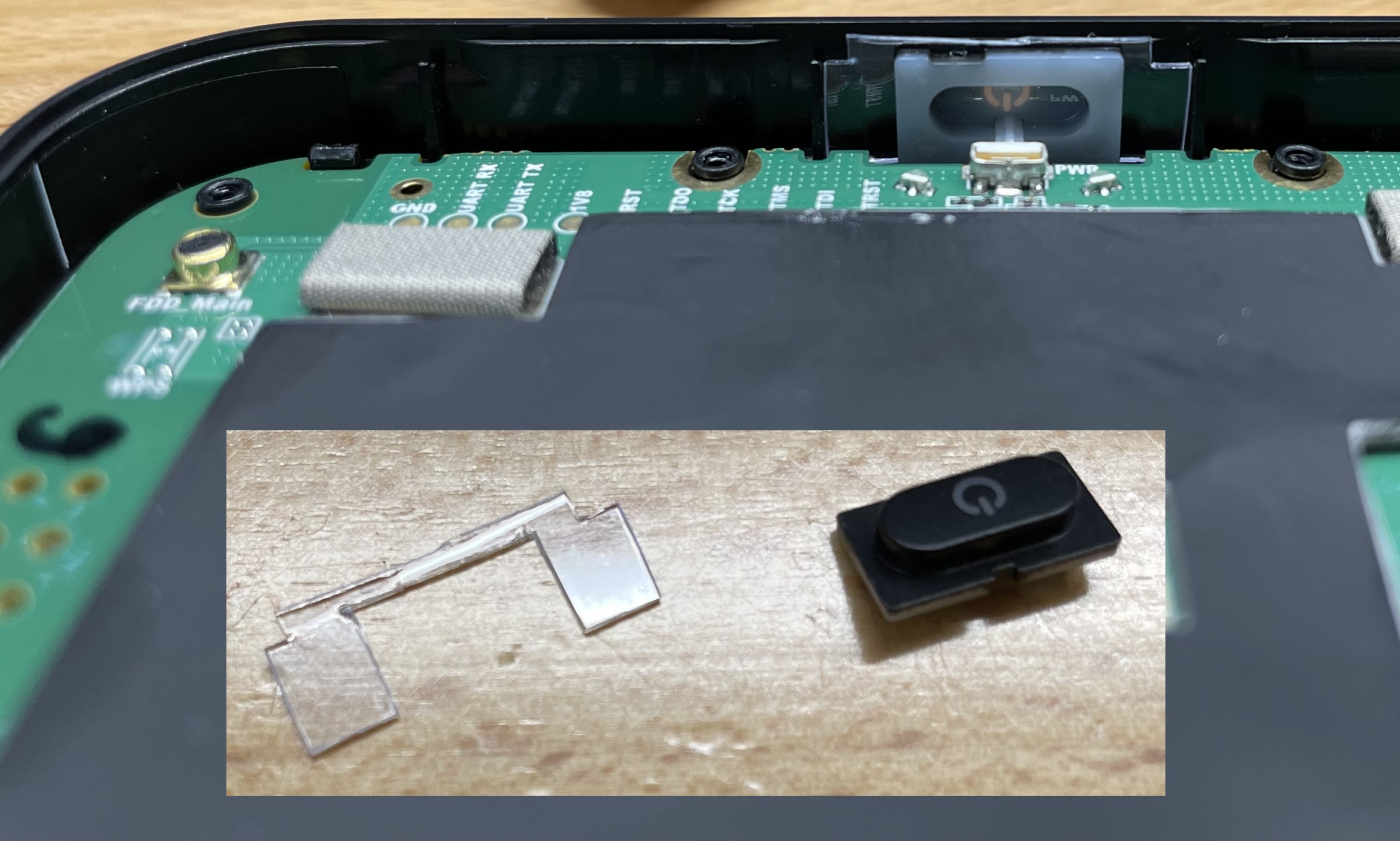

T9 Power Button Wedge

Notes

Miscellaneous notes I took during my investigation.

Extract Kernel

Retrieve boot image from flash
# Shelled into hotspot
grep boot /proc/mtd  # Mine says mtd6: 007e0000 00020000 "boot"
# Local computer
ssh [email protected] dd if=/dev/mtd6ro |dd of=mtd6ro-boot.bin
Extract compressed kernel image
git clone https://github.com/xiaolu/mkbootimg_tools.git
mkbootimg_tools/mkboot mtd6ro-boot.bin mtd6ro-boot
binwalk mtd6ro-boot/kernel  # Mine says 16431 0x402F gzip compressed data
dd if=mtd6ro-boot/kernel of=piggy.gz bs=1 skip=16431

Interesting Info

free -m

             total         used         free       shared      buffers
Mem:           169          112           56            5            0
-/+ buffers:                112           56
Swap:            0            0            0

df -h

Filesystem                Size      Used Available Use% Mounted on
ubi0:rootfs              49.2M     45.8M      3.3M  93% /
tmpfs                    64.0K      4.0K     60.0K   6% /dev
tmpfs                    78.0M     36.0K     77.9M   0% /run
tmpfs                    78.0M      5.2M     72.7M   7% /var/volatile
tmpfs                    78.0M         0     78.0M   0% /media/ram
ubi0:usrfs                8.1M    724.0K      7.4M   9% /data
ubi0:cachefs             63.1M     55.5M      4.3M  93% /cache
/dev/ubi1_0              29.9M     26.5M      3.4M  89% /firmware

cat /proc/cpuinfo

processor       : 0
model name      : ARMv7 Processor rev 5 (v7l)
BogoMIPS        : 38.40
Features        : half thumb fastmult vfp edsp neon vfpv3 tls vfpv4 idiva idivt vfpd32 lpae
CPU implementer : 0x41
CPU architecture: 7
CPU variant     : 0x0
CPU part        : 0xc07
CPU revision    : 5
Hardware        : Qualcomm Technologies, Inc MDM9207
Revision        : 0000
Serial          : 0000000000000000
Processor       : ARMv7 Processor rev 5 (v7l)

uname -a

Linux mdm9607 3.18.48 #1 PREEMPT Fri Nov 13 14:21:47 KST 2020 armv7l GNU/Linux

lsmod

shortcut_fe_cm 6828 0 - Live 0xbf470000 (O)
shortcut_fe_ipv6 66440 1 shortcut_fe_cm, Live 0xbf45a000 (O)
shortcut_fe 68047 1 shortcut_fe_cm, Live 0xbf444000 (O)
wlan 4467738 0 - Live 0xbf000000 (O)

cat /proc/cmdline

noinitrd rw console=ttyHSL0,115200,n8 androidboot.hardware=qcom ehci-hcd.park=3 msm_rtb.filter=0x37 lpm_levels.sleep_disabled=1 earlycon=msm_hsl_uart,0x78b3000 androidboot.serialno=12345678 androidboot.authorized_kernel=true androidboot.baseband=msm rootfstype=ubifs rootflags=bulk_read root=ubi0:rootfs ubi.mtd=14

cat /build.prop

ro.build.version.release=202011131402
ro.product.name=mdm9607-base

cat /proc/mtd

dev:    size   erasesize  name
mtd0: 00140000 00020000 "sbl"
mtd1: 00140000 00020000 "mibib"
mtd2: 00c00000 00020000 "efs2"
mtd3: 000c0000 00020000 "tz"
mtd4: 00060000 00020000 "rpm"
mtd5: 000a0000 00020000 "aboot"
mtd6: 007e0000 00020000 "boot"
mtd7: 01040000 00020000 "scrub"
mtd8: 02900000 00020000 "modem"
mtd9: 00140000 00020000 "misc"
mtd10: 007e0000 00020000 "recovery"
mtd11: 00180000 00020000 "fota"
mtd12: 011e0000 00020000 "recoveryfs"
mtd13: 00040000 00020000 "sec"
mtd14: 091e0000 00020000 "system"

iw list

Wiphy phy0
	Band 1:
		Capabilities: 0x9072
			HT20/HT40
			Static SM Power Save
			RX Greenfield
			RX HT20 SGI
			RX HT40 SGI
			No RX STBC
			Max AMSDU length: 3839 bytes
			DSSS/CCK HT40
			L-SIG TXOP protection
		Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
		Minimum RX AMPDU time spacing: 16 usec (0x07)
		HT TX/RX MCS rate indexes supported: 0-7
		Frequencies:
			* 2412 MHz [1] (30.0 dBm)
			* 2417 MHz [2] (30.0 dBm)
			* 2422 MHz [3] (30.0 dBm)
			* 2427 MHz [4] (30.0 dBm)
			* 2432 MHz [5] (30.0 dBm)
			* 2437 MHz [6] (30.0 dBm)
			* 2442 MHz [7] (30.0 dBm)
			* 2447 MHz [8] (30.0 dBm)
			* 2452 MHz [9] (30.0 dBm)
			* 2457 MHz [10] (30.0 dBm)
			* 2462 MHz [11] (30.0 dBm)
			* 2467 MHz [12] (disabled)
			* 2472 MHz [13] (disabled)
			* 2484 MHz [14] (disabled)
		Bitrates (non-HT):
			* 1.0 Mbps
			* 2.0 Mbps
			* 5.5 Mbps
			* 11.0 Mbps
			* 6.0 Mbps
			* 9.0 Mbps
			* 12.0 Mbps
			* 18.0 Mbps
			* 24.0 Mbps
			* 36.0 Mbps
			* 48.0 Mbps
			* 54.0 Mbps
	Band 2:
		Capabilities: 0x9072
			HT20/HT40
			Static SM Power Save
			RX Greenfield
			RX HT20 SGI
			RX HT40 SGI
			No RX STBC
			Max AMSDU length: 3839 bytes
			DSSS/CCK HT40
			L-SIG TXOP protection
		Maximum RX AMPDU length 65535 bytes (exponent: 0x003)
		Minimum RX AMPDU time spacing: 16 usec (0x07)
		HT TX/RX MCS rate indexes supported: 0-7
		Frequencies:
			* 5180 MHz [36] (30.0 dBm)
			* 5200 MHz [40] (30.0 dBm)
			* 5220 MHz [44] (30.0 dBm)
			* 5240 MHz [48] (30.0 dBm)
			* 5260 MHz [52] (24.0 dBm) (radar detection)
			* 5280 MHz [56] (24.0 dBm) (radar detection)
			* 5300 MHz [60] (24.0 dBm) (radar detection)
			* 5320 MHz [64] (24.0 dBm) (radar detection)
			* 5500 MHz [100] (24.0 dBm) (radar detection)
			* 5520 MHz [104] (24.0 dBm) (radar detection)
			* 5540 MHz [108] (24.0 dBm) (radar detection)
			* 5560 MHz [112] (24.0 dBm) (radar detection)
			* 5580 MHz [116] (24.0 dBm) (radar detection)
			* 5600 MHz [120] (24.0 dBm) (radar detection)
			* 5620 MHz [124] (24.0 dBm) (radar detection)
			* 5640 MHz [128] (24.0 dBm) (radar detection)
			* 5660 MHz [132] (24.0 dBm) (radar detection)
			* 5680 MHz [136] (24.0 dBm) (radar detection)
			* 5700 MHz [140] (24.0 dBm) (radar detection)
			* 5720 MHz [144] (24.0 dBm) (radar detection)
			* 5745 MHz [149] (30.0 dBm)
			* 5765 MHz [153] (30.0 dBm)
			* 5785 MHz [157] (30.0 dBm)
			* 5805 MHz [161] (30.0 dBm)
			* 5825 MHz [165] (30.0 dBm)
			* 5845 MHz [169] (disabled)
			* 5865 MHz [173] (20.0 dBm) (passive scanning, no IBSS, radar detection)
		Bitrates (non-HT):
			* 6.0 Mbps
			* 9.0 Mbps
			* 12.0 Mbps
			* 18.0 Mbps
			* 24.0 Mbps
			* 36.0 Mbps
			* 48.0 Mbps
			* 54.0 Mbps
	max # scan SSIDs: 10
	max scan IEs length: 500 bytes
	Coverage class: 0 (up to 0m)
	Supported Ciphers:
		* WEP40 (00-0f-ac:1)
		* WEP104 (00-0f-ac:5)
		* TKIP (00-0f-ac:2)
		* CCMP (00-0f-ac:4)
		* WPI-SMS4 (00-14-72:1)
		* CMAC (00-0f-ac:6)
	Available Antennas: TX 0 RX 0
	Supported interface modes:
		 * IBSS
		 * managed
		 * AP
		 * P2P-client
		 * P2P-GO
	software interface modes (can always be added):
	valid interface combinations:
		 * #{ managed } <= 3,
		   total <= 3, #channels <= 2
		 * #{ managed } <= 1, #{ IBSS } <= 1,
		   total <= 2, #channels <= 1
		 * #{ AP } <= 3,
		   total <= 3, #channels <= 2
		 * #{ P2P-client } <= 1, #{ P2P-GO } <= 1,
		   total <= 2, #channels <= 2
		 * #{ managed } <= 2, #{ AP } <= 2,
		   total <= 4, #channels <= 2, STA/AP BI must match
		 * #{ managed } <= 2, #{ P2P-client, P2P-GO } <= 2,
		   total <= 4, #channels <= 2, STA/AP BI must match
		 * #{ managed } <= 2, #{ P2P-GO } <= 1, #{ AP } <= 1,
		   total <= 4, #channels <= 2, STA/AP BI must match
	Supported commands:
		 * new_interface
		 * set_interface
		 * new_key
		 * start_ap
		 * new_station
		 * set_bss
		 * join_ibss
		 * set_pmksa
		 * del_pmksa
		 * flush_pmksa
		 * remain_on_channel
		 * frame
		 * frame_wait_cancel
		 * set_channel
		 * testmode
		 * connect
		 * disconnect
	Supported TX frame types:
		 * IBSS: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
		 * managed: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
		 * AP: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
		 * P2P-client: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
		 * P2P-GO: 0x00 0x10 0x20 0x30 0x40 0x50 0x60 0x70 0x80 0x90 0xa0 0xb0 0xc0 0xd0 0xe0 0xf0
	Supported RX frame types:
		 * IBSS: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
		 * managed: 0x40 0x60 0xd0
		 * AP: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
		 * P2P-client: 0x40 0xd0
		 * P2P-GO: 0x00 0x20 0x40 0xa0 0xb0 0xc0 0xd0
	WoWLAN support:
		 * wake up on anything (device continues operating normally)
		 * wake up on disconnect
		 * wake up on magic packet
		 * wake up on pattern match, up to 4 patterns of 6-64 bytes
		 * can do GTK rekeying
		 * wake up on GTK rekey failure
		 * wake up on EAP identity request
		 * wake up on 4-way handshake
		 * wake up on rfkill release
	Device supports roaming.
	Device supports HT-IBSS.

cat /sys/devices/1800000.qcom,debug/uevent

DRIVER=qcom,cc-debug-mdm9607
OF_NAME=qcom,debug
OF_FULLNAME=/soc/qcom,[email protected]
OF_COMPATIBLE_0=qcom,cc-debug-mdm9607
OF_COMPATIBLE_N=1
MODALIAS=of:Nqcom,debugT<NULL>Cqcom,cc-debug-mdm9607

cat /sys/class/power_supply/usb/device/uevent

DRIVER=msm_otg
OF_NAME=usb
OF_FULLNAME=/soc/[email protected]
OF_COMPATIBLE_0=qcom,hsusb-otg
OF_COMPATIBLE_N=1
MODALIAS=of:NusbT<NULL>Cqcom,hsusb-otg

lsusb  # From host computer

Powered on normally
Bus 001 Device 031: ID 05c6:902d Qualcomm, Inc. MDM9207-MTP _SN:26F711A1
Fastboot mode
Bus 001 Device 030: ID 18d1:d00d Google Inc. Xiaomi Mi/Redmi 2 (fastboot)

cat /proc/tty/drivers

/dev/tty             /dev/tty        5       0 system:/dev/tty
/dev/console         /dev/console    5       1 system:console
/dev/ptmx            /dev/ptmx       5       2 system
/dev/vc/0            /dev/vc/0       4       0 system:vtmaster
g_serial             /dev/ttyGS    239 0-3 serial
acm                  /dev/ttyACM   166 0-31 serial
smd_tty_driver       /dev/smd      245 0-36 serial
msm_serial_hsl       /dev/ttyHSL   246 0-2 serial
msm_serial_hs        /dev/ttyHS    247 0-255 serial
pty_slave            /dev/pts      136 0-1048575 pty:slave
pty_master           /dev/ptm      128 0-1048575 pty:master
unknown              /dev/tty        4 1-63 console

fastboot getvar all

(bootloader) version:0.5
(bootloader) variant:modem UFS
(bootloader) secure:no
(bootloader) version-baseband:
(bootloader) version-bootloader:
(bootloader) display-panel:
(bootloader) off-mode-charge:0
(bootloader) charger-screen-enabled:0
(bootloader) max-download-size: 0x8000000
(bootloader) serialno:12345678
(bootloader) kernel:lk
(bootloader) product:
all:
Finished. Total time: 0.021s

fastboot oem device-info

(bootloader)    Device tampered: false
(bootloader)    Device unlocked: false
(bootloader)    Device critical unlocked: false
(bootloader)    Charger screen enabled: false
(bootloader)    Display panel:
OKAY [  0.006s]
Finished. Total time: 0.007s

usb_composition

boot hsusb composition: 9057
boot hsic composition: empty
Choose Composition by Pid:
   901D -	DIAG + ADB
   9021 -	DIAG + QMI_RMNET (Android)
   9022 -	DIAG + ADB + QMI_RMNET (Android)
   9024 -	RNDIS + ADB [Android]
   9025 -	DIAG + ADB + MODEM + NMEA + QMI_RMNET + Mass Storage (Android)
   902B -	RNDIS + ADB + Mass Storage
   902D -	RNDIS + DIAG + ADB [Android]
   9039 -	MTP + ADB(Android)
   9049 -	DIAG + ADB + DUN + RMNET + Mass Storage + QDSS [Android]
   904A -	DIAG + QDSS [Android]
   9056 -	DIAG + ADB + SERIAL + RMNET + Mass Storage + Audio [Android]
   9057 -	RNDIS : ECM
   9059 -	DIAG+ADB+RNDIS : ECM
   905B -	MBIM
   9060 -	DIAG + QDSS + ADB
   9063 -	RNDIS : ECM : MBIM
   9064 -	DIAG + ADB + MODEM + QMI_RMNET : ECM : MBIM
   9067 -	Mass storage + QMI_RMNET : Mass Storage + MBIM
   9084 -	DIAG + QDSS + ADB + RMNET
   9085 -	DIAG+ADB+MBIM+GNSS
   9091 -	DIAG + MODEM + QMI_RMNET + ADB
   90A1 -	DIAG + ADB + (multiplexed) QMI_RMNET (Android)
   90A9 -	DIAG + ADB + MODEM + NMEA + QDSS (bulk in) + RMNET : ECM : MBIM
   90AD -	DIAG + ADB + MODEM + NMEA (Disable in 9x07 only : + QMI_RMNET + Mass Storage + DPL)
   90B1 -	ECM
   90CA -	DIAG + ADB + UAC2
   90CD -	DIAG + ADB + GNSS
   90D5 -	DIAG + ADB + MBIM + GNSS + DUN
   90D6 -	DIAG + MBIM + GNSS + DUN
   90F3 -	DIAG + RmNet + IPC_ROUTER
   F000 -	Mass Storage
   __emptyfile__ -
   empty -	it is used to allow either hsic or hsusb to have no composition at all(must reboot to take effect).
   hsic_next -
   hsusb_next -

cat /proc/kmsg  # dmesg

<6>[    0.000000] Booting Linux on physical CPU 0x0
<5>[    0.000000] Linux version 3.18.48 ([email protected]) (gcc version 4.9.3 (GCC) ) #1 PREEMPT Fri Nov 13 14:21:47 KST 2020
<6>[    0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c53c7d
<6>[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
<6>[    0.000000] Machine model: Franklin Technologies, Inc. MDM 9607 R717 P1
<6>[    0.000000] Early serial console at I/O port 0x0 (options '')
<6>[    0.000000] bootconsole [uart0] enabled
<6>[    0.000000] Reserved memory: reserved region for node '[email protected]': base 0x82a00000, size 80 MiB
<6>[    0.000000] Reserved memory: reserved region for node '[email protected]': base 0x87a00000, size 2 MiB
<6>[    0.000000] Reserved memory: reserved region for node '[email protected]': base 0x87c00000, size 4 MiB
<6>[    0.000000] Removed memory: created DMA memory pool at 0x82a00000, size 80 MiB
<6>[    0.000000] Reserved memory: initialized node [email protected], compatible id removed-dma-pool
<6>[    0.000000] Removed memory: created DMA memory pool at 0x87a00000, size 2 MiB
<6>[    0.000000] Reserved memory: initialized node [email protected], compatible id removed-dma-pool
<6>[    0.000000] Removed memory: created DMA memory pool at 0x87c00000, size 4 MiB
<6>[    0.000000] Reserved memory: initialized node [email protected], compatible id removed-dma-pool
<6>[    0.000000] cma: Reserved 4 MiB at 0x8fc00000
<6>[    0.000000] Memory policy: Data cache writeback
<7>[    0.000000] On node 0 totalpages: 64000
<7>[    0.000000] free_area_init_node: node 0, pgdat c0a18378, node_mem_map cf950000
<7>[    0.000000]   Normal zone: 640 pages used for memmap
<7>[    0.000000]   Normal zone: 0 pages reserved
<7>[    0.000000]   Normal zone: 64000 pages, LIFO batch:15
<6>[    0.000000] CPU: All CPU(s) started in SVC mode.
<7>[    0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
<7>[    0.000000] pcpu-alloc: [0] 0
<4>[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 63360
<5>[    0.000000] Kernel command line: noinitrd rw console=ttyHSL0,115200,n8 androidboot.hardware=qcom ehci-hcd.park=3 msm_rtb.filter=0x37 lpm_levels.sleep_disabled=1 earlycon=msm_hsl_uart,0x78b3000 androidboot.serialno=12345678 androidboot.authorized_kernel=true androidboot.baseband=msm rootfstype=ubifs rootflags=bulk_read root=ubi0:rootfs ubi.mtd=14
<6>[    0.000000] PID hash table entries: 1024 (order: 0, 4096 bytes)
<6>[    0.000000] Dentry cache hash table entries: 32768 (order: 5, 131072 bytes)
<6>[    0.000000] Inode-cache hash table entries: 16384 (order: 4, 65536 bytes)
<4>[    0.000000] Memory: 155224K/256000K available (6682K kernel code, 545K rwdata, 2684K rodata, 333K init, 906K bss, 100776K reserved)
<5>[    0.000000] Virtual kernel memory layout:
<5>[    0.000000]     vector  : 0xffff0000 - 0xffff1000   (   4 kB)
<5>[    0.000000]     fixmap  : 0xffc00000 - 0xfff00000   (3072 kB)
<5>[    0.000000]     vmalloc : 0xd0800000 - 0xff000000   ( 744 MB)
<5>[    0.000000]     lowmem  : 0xc0000000 - 0xd0000000   ( 256 MB)
<5>[    0.000000]     modules : 0xbf000000 - 0xc0000000   (  16 MB)
<5>[    0.000000]       .text : 0xc0008000 - 0xc068ed10   (6684 kB)
<5>[    0.000000]       .init : 0xc0960000 - 0xc09b342c   ( 334 kB)
<5>[    0.000000]       .data : 0xc09b4000 - 0xc0a3c714   ( 546 kB)
<5>[    0.000000]        .bss : 0xc0a3c7d8 - 0xc0b1f2b4   ( 907 kB)
<6>[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
<6>[    0.000000] Preemptible hierarchical RCU implementation.
<4>[    0.000000]
<4>[    0.000000] **********************************************************
<4>[    0.000000] **   NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE   **
<4>[    0.000000] **                                                      **
<4>[    0.000000] ** trace_printk() being used. Allocating extra memory.  **
<4>[    0.000000] **                                                      **
<4>[    0.000000] ** This means that this is a DEBUG kernel and it is     **
<4>[    0.000000] ** unsafe for produciton use.                           **
<4>[    0.000000] **                                                      **
<4>[    0.000000] ** If you see this message and you are not debugging    **
<4>[    0.000000] ** the kernel, report this immediately to your vendor!  **
<4>[    0.000000] **                                                      **
<4>[    0.000000] **   NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE NOTICE   **
<4>[    0.000000] **********************************************************
<6>[    0.000000] kmemleak: Kernel memory leak detector disabled
<6>[    0.000000] NR_IRQS:16 nr_irqs:16 16
<2>[    0.000000] GIC CPU mask not found - kernel will fail to boot.
<2>[    0.000000] GIC CPU mask not found - kernel will fail to boot.
<4>[    0.000000] mpm_init_irq_domain(): Cannot find irq controller for qcom,gpio-parent
<3>[    0.000000] MPM 1 irq mapping errored -517
<6>[    0.000000] Architected mmio timer(s) running at 19.20MHz (virt).
<6>[    0.000011] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 3579139424256ns
<6>[    0.007974] Switching to timer-based delay loop, resolution 52ns
<6>[    0.013967] Switched to clocksource arch_mem_counter
<6>[    0.019891] Console: colour dummy device 80x30
<6>[    0.023347] Calibrating delay loop (skipped), value calculated using timer frequency.. 38.40 BogoMIPS (lpj=192000)
<6>[    0.033664] pid_max: default: 32768 minimum: 301
<6>[    0.038498] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
<6>[    0.044915] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
<6>[    0.052628] CPU: Testing write buffer coherency: ok
<6>[    0.057260] Setting up static identity map for 0x8068e150 - 0x8068e1a8
<6>[    0.075145] MSM Memory Dump base table set up
<6>[    0.078533] MSM Memory Dump apps data table set up
<6>[    0.088292] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
<6>[    0.099058] pinctrl core: initialized pinctrl subsystem
<6>[    0.103853] regulator-dummy: no parameters
<6>[    0.164515] NET: Registered protocol family 16
<6>[    0.179811] DMA: preallocated 256 KiB pool for atomic coherent allocations
<6>[    0.244028] cpuidle: using governor ladder
<6>[    0.274022] cpuidle: using governor menu
<6>[    0.304021] cpuidle: using governor qcom
<6>[    0.318304] msm_watchdog b017000.qcom,wdt: wdog absent resource not present
<6>[    0.324669] msm_watchdog b017000.qcom,wdt: MSM Watchdog Initialized
<4>[    0.333604] irq: no irq domain found for /soc/[email protected] !
<4>[    0.340136] irq: no irq domain found for /soc/[email protected] !
<3>[    0.352535] spmi_pmic_arb 200f000.qcom,spmi: PMIC Arb Version-2 0x20010000
<6>[    0.362115] platform 4080000.qcom,mss: assigned reserved memory node [email protected]
<4>[    0.370423] irq: no irq domain found for /soc/[email protected] !
<6>[    0.377108] mem_acc_corner: 0 <--> 0 mV
<6>[    0.382827] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
<6>[    0.389866] hw-breakpoint: maximum watchpoint size is 8 bytes.
<7>[    0.396750] gpiochip_add: registered GPIOs 0 to 79 on device: 1000000.pinctrl
<7>[    0.396776] GPIO chip 1000000.pinctrl: created GPIO range 0->79 ==> 1000000.pinctrl PIN 0->79
<4>[    0.397558] __of_mpm_init(): MPM driver mapping exists
<4>[    0.402356] msm_rpm_glink_dt_parse: qcom,rpm-glink compatible not matches
<6>[    0.408512] msm_rpm_dev_probe: APSS-RPM communication over SMD
<6>[    0.414283] smd_open() before smd_init()
<3>[    0.418980] msm_mpm_dev_probe(): Cannot get clk resource for XO: -517
<3>[    0.427668] smd_channel_probe_now: allocation table not initialized
<6>[    0.435787] mdm9607_s1: 1050 <--> 1350 mV at 1100 mV normal idle
<6>[    0.441083] spm_regulator_probe: name=mdm9607_s1, range=LV, voltage=1100000 uV, mode=AUTO, step rate=4800 uV/us
<6>[    0.451786] cpr_efuse_init: apc_corner: efuse_addr = 0x000a4000 (len=0x1000)
<6>[    0.458050] cpr_read_fuse_revision: apc_corner: fuse revision = 2
<6>[    0.464068] cpr_parse_speed_bin_fuse: apc_corner: [row: 37]: 0x79303d3226f711a1, speed_bits = 4
<6>[    0.472783] cpr_pvs_init: apc_corner: pvs voltage: [1050000 1100000 1250000] uV
<6>[    0.480030] cpr_pvs_init: apc_corner: ceiling voltage: [1050000 1225000 1350000] uV
<6>[    0.487667] cpr_pvs_init: apc_corner: floor voltage: [1050000 1050000 1150000] uV
<6>[    0.498455] msm-thermal soc:qcom,msm-thermal: msm_thermal:Failed reading node=/soc/qcom,msm-thermal, key=qcom,core-limit-temp. err=-22. KTM continues
<6>[    0.510956] msm-thermal soc:qcom,msm-thermal: probe_therm_reset:Failed reading node=/soc/qcom,msm-thermal, key=qcom,therm-reset-temp err=-22. KTM continues
<3>[    0.524829] msm_thermal:msm_thermal_dev_probe Failed reading node=/soc/qcom,msm-thermal, key=qcom,online-hotplug-core. err:-517
<6>[    0.538111] sps:sps is ready.
<4>[    0.542683] msm_rpm_glink_dt_parse: qcom,rpm-glink compatible not matches
<6>[    0.548577] msm_rpm_dev_probe: APSS-RPM communication over SMD
<6>[    0.555543] mdm9607_s2: 750 <--> 1275 mV at 750 mV normal idle
<6>[    0.561541] mdm9607_s3_level: 0 <--> 0 mV at 0 mV normal idle
<6>[    0.567158] mdm9607_s3_level_ao: 0 <--> 0 mV at 0 mV normal idle
<6>[    0.573110] mdm9607_s3_floor_level: 0 <--> 0 mV at 0 mV normal idle
<6>[    0.579500] mdm9607_s3_level_so: 0 <--> 0 mV at 0 mV normal idle
<6>[    0.585827] mdm9607_s4: 1800 <--> 1950 mV at 1800 mV normal idle
<6>[    0.591868] mdm9607_l1: 1250 mV normal idle
<6>[    0.596165] mdm9607_l2: 1800 mV normal idle
<6>[    0.600367] mdm9607_l3: 1800 mV normal idle
<6>[    0.604683] mdm9607_l4: 3075 mV normal idle
<6>[    0.608872] mdm9607_l5: 1700 <--> 3050 mV at 1700 mV normal idle
<6>[    0.614971] mdm9607_l6: 1700 <--> 3050 mV at 1700 mV normal idle
<6>[    0.620969] mdm9607_l7: 1700 <--> 1900 mV at 1700 mV normal idle
<6>[    0.627124] mdm9607_l8: 1800 mV normal idle
<6>[    0.631310] mdm9607_l9: 1200 <--> 1250 mV at 1200 mV normal idle
<6>[    0.637491] mdm9607_l10: 1050 mV normal idle
<6>[    0.641711] mdm9607_l11: 1800 mV normal idle
<6>[    0.646182] mdm9607_l12_level: 0 <--> 0 mV at 0 mV normal idle
<6>[    0.651750] mdm9607_l12_level_ao: 0 <--> 0 mV at 0 mV normal idle
<6>[    0.657988] mdm9607_l12_level_so: 0 <--> 0 mV at 0 mV normal idle
<6>[    0.664092] mdm9607_l12_floor_lebel: 0 <--> 0 mV at 0 mV normal idle
<6>[    0.670759] mdm9607_l13: 1800 <--> 2850 mV at 2850 mV normal idle
<6>[    0.676949] mdm9607_l14: 2650 <--> 3000 mV at 2650 mV normal idle
<3>[    0.682490] msm_mpm_dev_probe(): Cannot get clk resource for XO: -517
<6>[    0.688964] cpr_efuse_init: apc_corner: efuse_addr = 0x000a4000 (len=0x1000)
<6>[    0.695711] cpr_read_fuse_revision: apc_corner: fuse revision = 2
<6>[    0.701680] cpr_parse_speed_bin_fuse: apc_corner: [row: 37]: 0x79303d3226f711a1, speed_bits = 4
<6>[    0.710466] cpr_pvs_init: apc_corner: pvs voltage: [1050000 1100000 1250000] uV
<6>[    0.717680] cpr_pvs_init: apc_corner: ceiling voltage: [1050000 1225000 1350000] uV
<6>[    0.725315] cpr_pvs_init: apc_corner: floor voltage: [1050000 1050000 1150000] uV
<6>[    0.733010] cpr_init_cpr_parameters: apc_corner: up threshold = 2, down threshold = 3
<6>[    0.740624] cpr_init_cpr_parameters: apc_corner: CPR is enabled by default.
<6>[    0.747559] cpr_init_cpr_efuse: apc_corner: [row:65] = 0x156002b12b13a3
<6>[    0.754145] cpr_init_cpr_efuse: apc_corner: CPR disable fuse = 0
<6>[    0.760096] cpr_init_cpr_efuse: apc_corner: Corner[1]: ro_sel = 0, target quot = 689
<6>[    0.767850] cpr_init_cpr_efuse: apc_corner: Corner[2]: ro_sel = 0, target quot = 689
<6>[    0.775575] cpr_init_cpr_efuse: apc_corner: Corner[3]: ro_sel = 0, target quot = 931
<6>[    0.783477] cpr_config: apc_corner: Timer count: 0x17700 (for 5000 us)
<6>[    0.790449] apc_corner: 0 <--> 0 mV
<6>[    0.794133] msm-thermal soc:qcom,msm-thermal: msm_thermal:Failed reading node=/soc/qcom,msm-thermal, key=qcom,core-limit-temp. err=-22. KTM continues
<6>[    0.806761] msm-thermal soc:qcom,msm-thermal: probe_therm_reset:Failed reading node=/soc/qcom,msm-thermal, key=qcom,therm-reset-temp err=-22. KTM continues
<3>[    0.820765] msm_thermal:get_kernel_cluster_info CPU0 topology not initialized.
<3>[    0.828833] cpu cpu0: dev_pm_opp_get_opp_count: device OPP not found (-19)
<3>[    0.834712] msm_thermal:get_cpu_freq_plan_len Error reading CPU0 freq table len. error:-19
<6>[    0.842915] msm_thermal:vdd_restriction_reg_init Defer vdd rstr freq init.
<3>[    0.850383] cpu cpu0: dev_pm_opp_get_opp_count: device OPP not found (-19)
<3>[    0.857582] msm_thermal:get_cpu_freq_plan_len Error reading CPU0 freq table len. error:-19
<3>[    0.865110] cpu cpu0: dev_pm_opp_get_opp_count: device OPP not found (-19)
<3>[    0.872369] msm_thermal:get_cpu_freq_plan_len Error reading CPU0 freq table len. error:-19
<6>[    0.889484] qcom,gcc-mdm9607 1800000.qcom,gcc: Registered GCC clocks
<6>[    0.895340] clock-a7 b010008.qcom,clock-a7: Speed bin: 4 PVS Version: 0
<6>[    0.901475] a7ssmux: set OPP pair(400000000 Hz: 1 uV) on cpu0
<6>[    0.907236] a7ssmux: set OPP pair(1305600000 Hz: 7 uV) on cpu0
<7>[    0.976028] gpiochip_find_base: found new base at 1018
<7>[    0.976271] gpiochip_add: registered GPIOs 1018 to 1023 on device: pm8019-gpio
<7>[    0.976567] qcom,qpnp-pin qpnp-pin-6: qpnp_pin_probe: gpio_chip registered between 1018-1023
<7>[    0.976755] gpiochip_find_base: found new base at 1012
<7>[    0.976933] gpiochip_add: registered GPIOs 1012 to 1017 on device: pm8019-mpp
<7>[    0.977372] qcom,qpnp-pin qpnp-pin-7: qpnp_pin_probe: gpio_chip registered between 1012-1017
<6>[    0.977765] KPI: Bootloader start count = 25122
<6>[    0.981258] KPI: Bootloader end count = 111451
<6>[    0.985829] KPI: Bootloader display count = 2432431526
<6>[    0.990806] KPI: Bootloader load kernel count = 28155
<6>[    0.995886] KPI: Kernel MPM timestamp = 171673
<6>[    1.000268] KPI: Kernel MPM Clock frequency = 32768
<6>[    1.005195] socinfo_print: v0.10, id=297, ver=1.0, raw_id=72, raw_ver=0, hw_plat=8, hw_plat_ver=65536
<6>[    1.005195]  accessory_chip=0, hw_plat_subtype=0, pmic_model=65539, pmic_die_revision=131074 foundry_id=6 serial_number=653726113
<7>[    1.026495] of_get_named_gpiod_flags: parsed 'gpio' property of node '/soc/sdcard_ext_vreg[0]' - status (0)
<6>[    1.026795] sdcard_ext_vreg: no parameters
<7>[    1.030306] of_get_named_gpiod_flags: parsed 'gpio' property of node '/soc/rome_vreg[0]' - status (0)
<6>[    1.030542] rome_vreg: no parameters
<7>[    1.033844] of_get_named_gpiod_flags: parsed 'gpio' property of node '/soc/emac_lan_vreg[0]' - status (0)
<6>[    1.034157] emac_lan_vreg: no parameters
<5>[    1.038465] SCSI subsystem initialized
<6>[    1.041718] usbcore: registered new interface driver usbfs
<6>[    1.046891] usbcore: registered new interface driver hub
<6>[    1.052162] usbcore: registered new device driver usb
<6>[    1.058067] i2c-msm-v2 78b9000.i2c: probing driver i2c-msm-v2
<3>[    1.062878] AXI: msm_bus_scale_register_client(): msm_bus_scale_register_client: Bus driver not ready.
<6>[    1.071973] i2c-msm-v2 78b9000.i2c: msm_bus_scale_register_client(mstr-id:86):0 (not a problem)
<4>[    1.081866] kworker/u2:2 (26) used greatest stack depth: 6980 bytes left
<6>[    1.088056] pps_core: LinuxPPS API ver. 1 registered
<6>[    1.092479] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <[email protected]>
<4>[    1.101709] kworker/u2:2 (27) used greatest stack depth: 6948 bytes left
<6>[    1.108434] PTP clock support registered
<6>[    1.113207] cpufreq: driver msm up and running
<6>[    1.117770] ION heap system created
<6>[    1.120429] ION heap qsecom created at 0x8fc00000 with size 400000
<3>[    1.127300] msm_bus_fabric_init_driver
<6>[    1.138830] qcom,qpnp-power-on qpnp-power-on-1: [email protected] Power-on reason: Triggered from CBL (external power supply) and 'cold' boot
<6>[    1.149882] qcom,qpnp-power-on qpnp-power-on-1: [email protected]: Unknown power-off reason
<6>[    1.157760] input: qpnp_pon as /devices/virtual/input/input0
<6>[    1.163507] [email protected]: PM8019 v2.2 options: 3, 2, 2, 2
<6>[    1.170055] cfg80211: Calling CRDA to update world regulatory domain
<6>[    1.176461] Switched to clocksource arch_mem_counter
<6>[    1.184105] cfg80211: World regulatory domain updated:
<6>[    1.188213] cfg80211:  DFS Master region: unset
<6>[    1.192551] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
<6>[    1.224088] cfg80211:   (2402000 KHz - 2472000 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
<6>[    1.231056] cfg80211:   (2457000 KHz - 2482000 KHz @ 40000 KHz), (N/A, 2000 mBm), (N/A)
<6>[    1.242632] NET: Registered protocol family 2
<6>[    1.246060] cfg80211:   (2474000 KHz - 2494000 KHz @ 20000 KHz), (N/A, 2000 mBm), (N/A)
<6>[    1.253940] cfg80211:   (5170000 KHz - 5250000 KHz @ 80000 KHz), (N/A, 2000 mBm), (N/A)
<6>[    1.262125] cfg80211:   (5250000 KHz - 5330000 KHz @ 80000 KHz), (N/A, 2000 mBm), (N/A)
<6>[    1.269955] cfg80211:   (5490000 KHz - 5710000 KHz @ 80000 KHz), (N/A, 2000 mBm), (N/A)
<6>[    1.277933] cfg80211:   (5735000 KHz - 5835000 KHz @ 80000 KHz), (N/A, 2000 mBm), (N/A)
<6>[    1.285918] cfg80211:   (57240000 KHz - 63720000 KHz @ 2160000 KHz), (N/A, 0 mBm), (N/A)
<6>[    1.294559] TCP established hash table entries: 2048 (order: 1, 8192 bytes)
<6>[    1.300928] TCP bind hash table entries: 2048 (order: 1, 8192 bytes)
<6>[    1.307361] TCP: Hash tables configured (established 2048 bind 2048)
<6>[    1.313663] TCP: reno registered
<6>[    1.316845] UDP hash table entries: 256 (order: 0, 4096 bytes)
<6>[    1.322614] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
<6>[    1.329110] NET: Registered protocol family 1
<6>[    1.335641] futex hash table entries: 256 (order: -1, 3072 bytes)
<6>[    1.350318] msgmni has been set to 311
<6>[    1.355142] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 248)
<6>[    1.361570] io scheduler noop registered
<6>[    1.365622] io scheduler deadline registered
<6>[    1.369928] io scheduler cfq registered (default)
<7>[    1.374993] gpiochip_find_base: found new base at 980
<7>[    1.375143] gpiochip_add: registered GPIOs 980 to 1011 on device: smp2p
<7>[    1.375343] gpiochip_find_base: found new base at 948
<7>[    1.375468] gpiochip_add: registered GPIOs 948 to 979 on device: smp2p
<7>[    1.375514] gpiochip_find_base: found new base at 916
<7>[    1.375621] gpiochip_add: registered GPIOs 916 to 947 on device: smp2p
<7>[    1.375791] gpiochip_find_base: found new base at 884
<7>[    1.375902] gpiochip_add: registered GPIOs 884 to 915 on device: smp2p
<7>[    1.375944] gpiochip_find_base: found new base at 852
<7>[    1.376061] gpiochip_add: registered GPIOs 852 to 883 on device: slave-kernel
<7>[    1.376195] gpiochip_find_base: found new base at 852
<7>[    1.376302] gpiochip_add: registered GPIOs 852 to 883 on device: master-kernel
<5>[    1.381181] msm_rpm_log_probe: OK
<4>[    1.385378] pil-q6v5-mss 4080000.qcom,mss: Failed to find the pas_id.
<7>[    1.390887] of_get_named_gpiod_flags: parsed 'qcom,gpio-proxy-unvote' property of node '/soc/qcom,[email protected][0]' - status (-517)
<7>[    1.392242] of_get_named_gpiod_flags: can't parse 'qcom,tx-gpio' property of node '/soc/[email protected][0]'
<3>[    1.392256] uart_tx_gpio is not available
<7>[    1.395458] of_get_named_gpiod_flags: can't parse 'qcom,rx-gpio' property of node '/soc/[email protected][0]'
<3>[    1.395469] uart_rx_gpio is not available
<7>[    1.399274] of_get_named_gpiod_flags: can't parse 'qcom,cts-gpio' property of node '/soc/[email protected][0]'
<3>[    1.399282] uart_cts_gpio is not available
<7>[    1.403364] of_get_named_gpiod_flags: can't parse 'qcom,rfr-gpio' property of node '/soc/[email protected][0]'
<3>[    1.403372] uart_rfr_gpio is not available
<3>[    1.408131] sps: BAM device 0x07884000 is not registered yet.
<6>[    1.413714] sps:BAM 0x07884000 is registered.
<6>[    1.420311] 78b1000.uart: ttyHS0 at MMIO 0x78b1000 (irq = 26, base_baud = 460800) is a MSM HS UART
<6>[    1.430607] msm_serial_hs module loaded
<6>[    1.433959] msm_serial_hsl_probe: detected port #0 (ttyHSL0)
<3>[    1.439254] AXI: get_pdata(): Error: Client name not found
<3>[    1.444611] AXI: msm_bus_cl_get_pdata(): client has to provide missing entry for successful registration
<3>[    1.454071] msm_serial_hsl_probe: Bus scaling is disabled
<6>[    1.459567] 78b3000.serial: ttyHSL0 at MMIO 0x78b3000 (irq = 24, base_baud = 460800) is a MSM
<6>[    1.468021] msm_hsl_console_setup: console setup on port #0
<6>[    1.472652] console [ttyHSL0] enabled
<6>[    1.479938] bootconsole [uart0] disabled
<6>[    1.488235] msm_serial_hsl_init: driver initialized
<6>[    1.515541] brd: module loaded
<6>[    1.521073] loop: module loaded

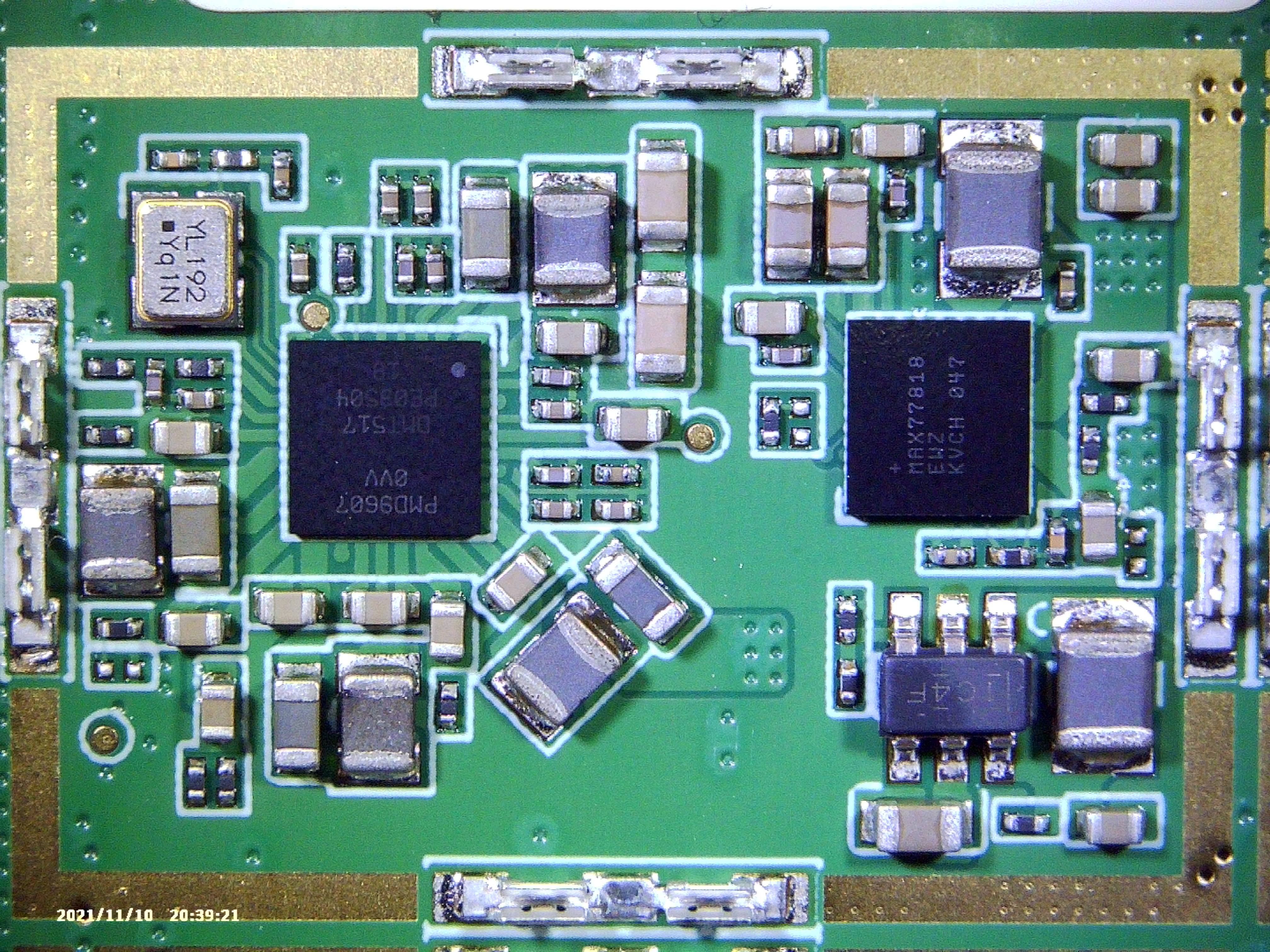

<6>[    1.523748] max77818_i2c_probe : attached
<7>[    1.527846] of_get_named_gpiod_flags: parsed 'max77818,int-gpio' property of node '/soc/[email protected]/[email protected][0]' - status (0)
<6>[    1.527888] max77818_pmic_get_platdata : INTGPIO 4 assigned
<6>[    1.532732] max77818_pmic_get_platdata : property:INTGPIO   4
<6>[    1.538559] max77818_pmic_get_platdata : property:IRQ       55
<6>[    1.544340] max77818_pmic_get_platdata : property:FUEL_MODE 1
<6>[    1.550398] max77818_pmic_setup : driver core 1.0 installed
<3>[    1.555849] i2c-msm-v2 78b9000.i2c: msm_bus_scale_register_client(mstr-id:86):0x3 (ok)
<6>[    1.565319] max77818_pmic_setup : CHIP ID 23h REV 3h
<6>[    1.569248] max77818_i2c_probe : probe done !!
<6>[    1.574286] QCE50: __qce_get_device_tree_data: BAM Apps EE is not defined, setting to default 1
<6>[    1.583869] qce 720000.qcedev: Qualcomm Crypto 5.3.3 device found @0x720000
<6>[    1.589889] qce 720000.qcedev: CE device = 0x0
<6>[    1.589889] , IO base, CE = 0xd0b40000
<6>[    1.589889] , Consumer (IN) PIPE 2,    Producer (OUT) PIPE 3
<6>[    1.589889] IO base BAM = 0x  (null)
<6>[    1.589889] BAM IRQ 43
<6>[    1.589889] Engines Availability = 0x2010853
<6>[    1.614475] sps:BAM 0x00704000 is registered.
<6>[    1.618621] sps:BAM 0x00704000 (va:0xd0b80000) enabled: ver:0x27, number of pipes:8
<6>[    1.627294] QCE50: qce_sps_init:  Qualcomm MSM CE-BAM at 0x0000000000704000 irq 43
<6>[    1.636985] QCE50: __qce_get_device_tree_data: BAM Apps EE is not defined, setting to default 1
<6>[    1.647075] qcrypto 720000.qcrypto: Qualcomm Crypto 5.3.3 device found @0x720000
<6>[    1.653444] qcrypto 720000.qcrypto: CE device = 0x0
<6>[    1.653444] , IO base, CE = 0xd0bc0000
<6>[    1.653444] , Consumer (IN) PIPE 4,    Producer (OUT) PIPE 5
<6>[    1.653444] IO base BAM = 0x  (null)
<6>[    1.653444] BAM IRQ 43
<6>[    1.653444] Engines Availability = 0x2010853
<6>[    1.679498] QCE50: qce_sps_init:  Qualcomm MSM CE-BAM at 0x0000000000704000 irq 43
<6>[    1.688386] qcrypto 720000.qcrypto: qcrypto-ecb-aes
<6>[    1.692483] qcrypto 720000.qcrypto: qcrypto-cbc-aes
<6>[    1.697410] qcrypto 720000.qcrypto: qcrypto-ctr-aes
<6>[    1.702137] qcrypto 720000.qcrypto: qcrypto-ecb-des
<6>[    1.707064] qcrypto 720000.qcrypto: qcrypto-cbc-des
<6>[    1.711849] qcrypto 720000.qcrypto: qcrypto-ecb-3des
<6>[    1.716886] qcrypto 720000.qcrypto: qcrypto-cbc-3des
<6>[    1.721741] qcrypto 720000.qcrypto: qcrypto-xts-aes
<6>[    1.726670] qcrypto 720000.qcrypto: qcrypto-sha1
<6>[    1.731225] qcrypto 720000.qcrypto: qcrypto-sha256
<6>[    1.736050] qcrypto 720000.qcrypto: qcrypto-aead-hmac-sha1-cbc-aes
<6>[    1.742134] qcrypto 720000.qcrypto: qcrypto-aead-hmac-sha1-cbc-des
<6>[    1.748375] qcrypto 720000.qcrypto: qcrypto-aead-hmac-sha1-cbc-3des
<6>[    1.754640] qcrypto 720000.qcrypto: qcrypto-aead-hmac-sha256-cbc-aes
<6>[    1.760881] qcrypto 720000.qcrypto: qcrypto-aead-hmac-sha256-cbc-des
<6>[    1.767296] qcrypto 720000.qcrypto: qcrypto-aead-hmac-sha256-cbc-3des
<6>[    1.773640] qcrypto 720000.qcrypto: qcrypto-hmac-sha1
<6>[    1.778742] qcrypto 720000.qcrypto: qcrypto-hmac-sha256
<6>[    1.783890] qcrypto 720000.qcrypto: qcrypto-aes-ccm
<6>[    1.788832] qcrypto 720000.qcrypto: qcrypto-rfc4309-aes-ccm
<6>[    1.794711] SCSI Media Changer driver v0.25
<3>[    1.802518] sps: BAM device 0x07984000 is not registered yet.
<6>[    1.807925] sps:BAM 0x07984000 is registered.
<6>[    1.811407] msm_nand_bam_init: msm_nand_bam_init: BAM device registered: bam_handle 0xce843c00
<6>[    1.820763] sps:BAM 0x07984000 (va:0xd0b20000) enabled: ver:0x18, number of pipes:7
<6>[    1.830593] msm_nand_parse_smem_ptable: Parsing partition table info from SMEM
<6>[    1.836963] msm_nand_parse_smem_ptable: SMEM partition table found: ver: 4 len: 15
<6>[    1.844455] msm_nand_version_check: nand_major:1, nand_minor:5, qpic_major:1, qpic_minor:5

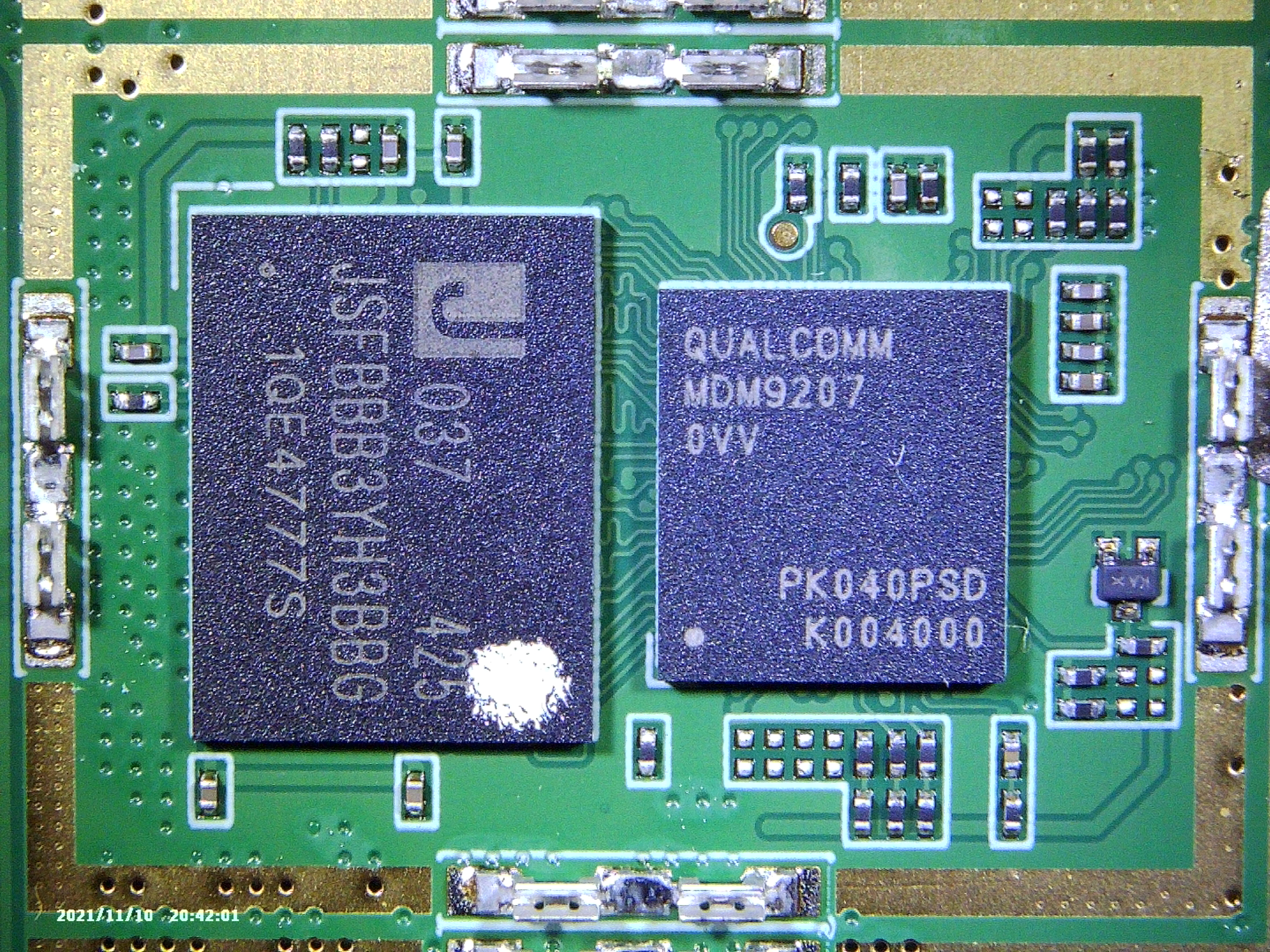

<6>[    1.852951] msm_nand_flash_onfi_probe: Found an ONFI compliant device H27S2G8F2DKA-BM     ­
<6>[    1.860950] msm_nand_scan: NAND Id: 0x1590aaad Buswidth: 8Bits Density: 256 MByte
<6>[    1.868411] msm_nand_scan: pagesize: 2048 Erasesize: 131072 oobsize: 128 (in Bytes)
<6>[    1.876398] msm_nand_scan: BCH ECC: 4 Bit
<6>[    1.880014] msm_nand_scan: CFG0: 0x2a0408c0,           CFG1: 0x0804745c
<6>[    1.880014]             RAWCFG0: 0x2c8400c0,        RAWCFG1: 0x0005055d
<6>[    1.880014]           ECCBUFCFG: 0x00000203,      ECCBCHCFG: 0x42040700
<6>[    1.880014]           RAWECCCFG: 0x42000701, BAD BLOCK BYTE: 0x000001d1
<5>[    1.906451] Creating 15 MTD partitions on "7980000.nand":
<5>[    1.911783] 0x000000000000-0x000000140000 : "sbl"
<5>[    1.917471] 0x000000140000-0x000000280000 : "mibib"
<5>[    1.922141] 0x000000280000-0x000000e80000 : "efs2"
<5>[    1.926988] 0x000000e80000-0x000000f40000 : "tz"
<5>[    1.931526] 0x000000f40000-0x000000fa0000 : "rpm"
<5>[    1.936306] 0x000000fa0000-0x000001040000 : "aboot"
<5>[    1.941312] 0x000001040000-0x000001820000 : "boot"
<5>[    1.945929] 0x000001820000-0x000002860000 : "scrub"
<5>[    1.950693] 0x000002860000-0x000005160000 : "modem"
<5>[    1.955661] 0x000005160000-0x0000052a0000 : "misc"
<5>[    1.960379] 0x0000052a0000-0x000005a80000 : "recovery"
<5>[    1.965585] 0x000005a80000-0x000005c00000 : "fota"
<5>[    1.970282] 0x000005c00000-0x000006de0000 : "recoveryfs"
<5>[    1.975656] 0x000006de0000-0x000006e20000 : "sec"
<5>[    1.980229] 0x000006e20000-0x000010000000 : "system"
<6>[    1.985249] msm_nand_probe: NANDc phys addr 0x7980000, BAM phys addr 0x7984000, BAM IRQ 29
<6>[    1.992635] msm_nand_probe: Allocated DMA buffer at virt_addr 0xcfc44000, phys_addr 0x8fc44000
<7>[    2.002735] of_get_named_gpiod_flags: can't parse 'qcom,gpio-clk' property of node '/soc/[email protected][0]'
<7>[    2.002752] of_get_named_gpiod_flags: can't parse 'qcom,gpio-miso' property of node '/soc/[email protected][0]'
<7>[    2.002764] of_get_named_gpiod_flags: can't parse 'qcom,gpio-mosi' property of node '/soc/[email protected][0]'
<7>[    2.002775] of_get_named_gpiod_flags: can't parse 'qcom,gpio-cs0' property of node '/soc/[email protected][0]'
<7>[    2.002787] of_get_named_gpiod_flags: can't parse 'qcom,gpio-cs1' property of node '/soc/[email protected][0]'
<7>[    2.002797] of_get_named_gpiod_flags: can't parse 'qcom,gpio-cs2' property of node '/soc/[email protected][0]'
<7>[    2.002808] of_get_named_gpiod_flags: can't parse 'qcom,gpio-cs3' property of node '/soc/[email protected][0]'
<7>[    2.003811] of_get_named_gpiod_flags: can't parse 'qcom,gpio-clk' property of node '/soc/[email protected][0]'
<7>[    2.003828] of_get_named_gpiod_flags: can't parse 'qcom,gpio-miso' property of node '/soc/[email protected][0]'
<7>[    2.003840] of_get_named_gpiod_flags: can't parse 'qcom,gpio-mosi' property of node '/soc/[email protected][0]'
<7>[    2.003851] of_get_named_gpiod_flags: can't parse 'qcom,gpio-cs0' property of node '/soc/[email protected][0]'
<7>[    2.003862] of_get_named_gpiod_flags: can't parse 'qcom,gpio-cs1' property of node '/soc/[email protected][0]'
<7>[    2.003873] of_get_named_gpiod_flags: can't parse 'qcom,gpio-cs2' property of node '/soc/[email protected][0]'
<7>[    2.003884] of_get_named_gpiod_flags: can't parse 'qcom,gpio-cs3' property of node '/soc/[email protected][0]'
<6>[    2.006182] sps:BAM 0x07884000 (va:0xd09c0000) enabled: ver:0x18, number of pipes:24
<4>[    2.014624] [lcd_panel_init:637]
<4>[    2.018509] Probe device ld7032-lcd
<6>[    2.021462] tun: Universal TUN/TAP device driver, 1.6
<6>[    2.026115] tun: (C) 1999-2004 Max Krasnyansky <[email protected]>
<6>[    2.034128] PPP generic driver version 2.4.2
<7>[    2.043403] of_get_named_gpiod_flags: can't parse 'qcom,cap-tsf-gpio' property of node '/soc/qcom,cnss-sdio[0]'
<3>[    2.043423] cnss_sdio 87a00000.qcom,cnss-sdio: cnss_sdio_tsf_init: fail to get irq: -22
<6>[    2.050722] cnss_sdio:cnss_configure_ramdump:558:: ramdump addr: d2c00000, phys: 0x87a00000 subsys:'AR6320'
<6>[    2.060324] cnss_sdio 87a00000.qcom,cnss-sdio: for AR6320 segments only will be dumped.
<6>[    2.069053] cnss_sdio 87a00000.qcom,cnss-sdio: CNSS SDIO Driver registered
<6>[    2.077803] usbcore: registered new interface driver asix
<6>[    2.082247] usbcore: registered new interface driver ax88179_178a
<6>[    2.088416] usbcore: registered new interface driver cdc_ether
<6>[    2.094178] usbcore: registered new interface driver net1080
<6>[    2.099764] usbcore: registered new interface driver cdc_subset
<6>[    2.105703] usbcore: registered new interface driver zaurus
<6>[    2.111516] usbcore: registered new interface driver cdc_ncm
<6>[    2.117288] msm_otg 78d9000.usb: msm_otg probe
<7>[    2.121614] of_get_named_gpiod_flags: can't parse 'qcom,hub-reset-gpio' property of node '/soc/[email protected][0]'
<7>[    2.121630] of_get_named_gpiod_flags: can't parse 'qcom,usbeth-reset-gpio' property of node '/soc/[email protected][0]'
<7>[    2.121643] of_get_named_gpiod_flags: can't parse 'qcom,sw-sel-gpio' property of node '/soc/[email protected][0]'
<7>[    2.121695] of_get_named_gpiod_flags: parsed 'qcom,usbid-gpio' property of node '/soc/[email protected][0]' - status (0)
<7>[    2.121716] of_get_named_gpiod_flags: can't parse 'qcom,hsusb-otg-vddmin-gpio' property of node '/soc/[email protected][0]'
<6>[    2.123531] msm_otg 78d9000.usb: OTG regs = d09b2000
<6>[    2.130644] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
<6>[    2.136623] ehci-msm: Qualcomm On-Chip EHCI Host Controller
<6>[    2.142113] usbcore: registered new interface driver cdc_acm
<6>[    2.147395] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
<6>[    2.155444] usbcore: registered new interface driver usb_ehset_test
<6>[    2.162775] gbridge_init: gbridge_init successs.
<6>[    2.168645] msm_otg 78d9000.usb: phy_reset: success
<6>[    2.173186] qcom,qpnp-rtc qpnp-rtc-5: rtc core: registered qpnp_rtc as rtc0
<6>[    2.179777] i2c /dev entries driver
<7>[    2.183614] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/pps[0]' - status (0)
<6>[    2.183820] pps pps0: new PPS source soc:pps.-1
<6>[    2.187651] pps pps0: Registered IRQ 104 as PPS source

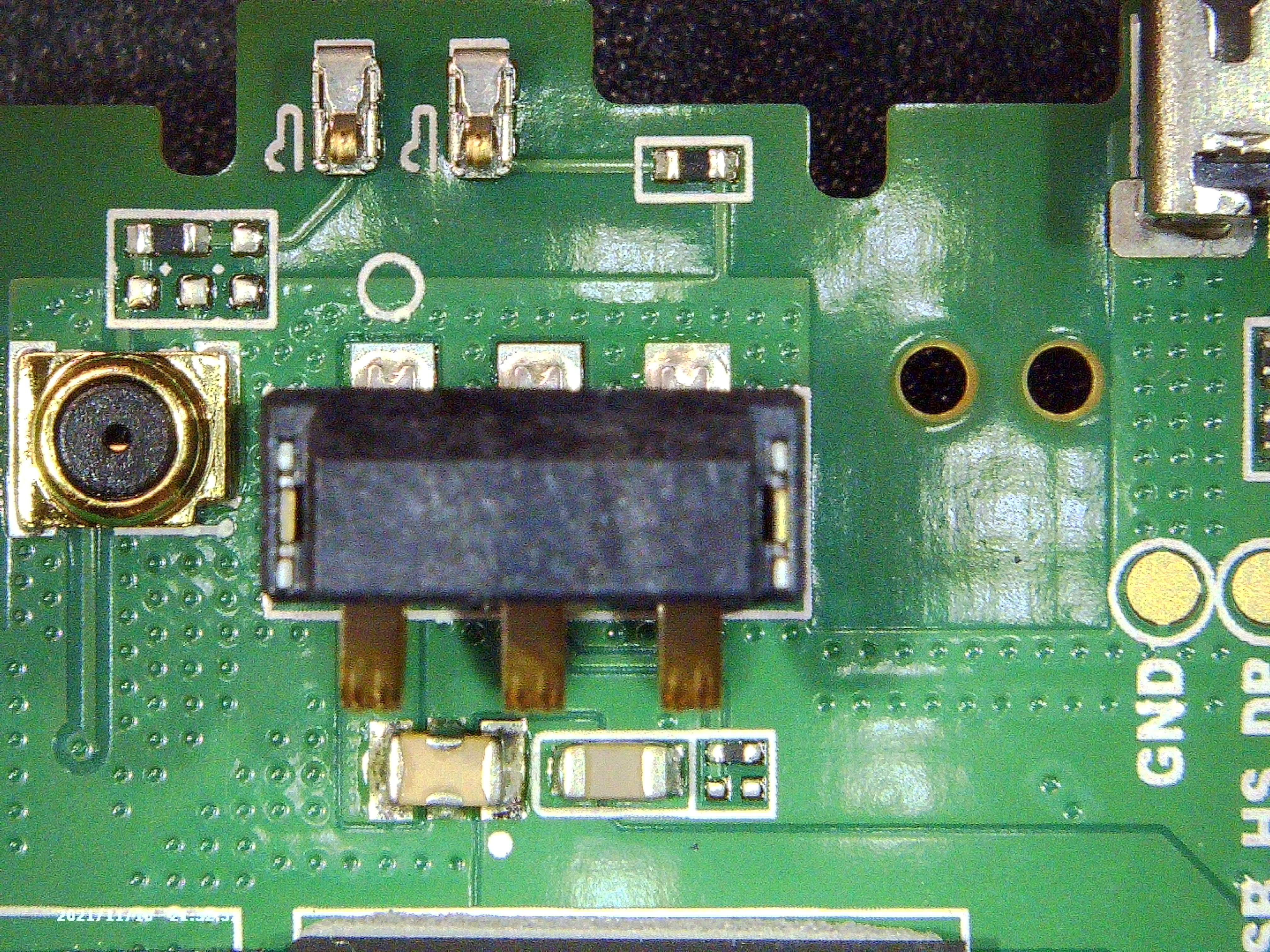

<6>[    2.192725] max77818_charger_init :
<6>[    2.196512] max77818_charger_probe : Max77818 Charger Driver Loading
<4>[    2.202588] max77818-charger: property:FCHGTIME               0hour
<4>[    2.208746] max77818-charger: property:CHG_CC                 500mA
<4>[    2.215078] max77818-charger: property:AC_CHG_CC              1200mA
<4>[    2.221273] max77818-charger: property:CHG_CV_PRM             4350mV
<4>[    2.227645] max77818-charger: property:TOPOFF_TIME            0min
<4>[    2.233772] max77818-charger: property:TOPOFF_ITH             250mA
<4>[    2.240056] max77818-charger: property:CHG_RSTRT              150mV
<4>[    2.246301] max77818-charger: property:INPUT_CURRENT_LIMIT    750mA
<4>[    2.252519] max77818-charger: property:AC_INPUT_CURRENT_LIMIT 3000mA
<4>[    2.258897] max77818-charger: property:USB ID GPIO [54] value[1]
<7>[    2.266019] max77818_charger_owner : Control Owner [Charger] -> [Charger]
<7>[    2.266032] max77818_charger_initialize :
<6>[    2.269999] max77818_charger_set_charge_current : reg_data(0x0a), charging current(500)
<7>[    2.277076] max77818_charger_set_topoff_current : reg_data(0x05), topoff(250), time(0)
<7>[    2.283076] max77818_charger_owner : Control Owner [Charger] -> [FuelGauge]
<7>[    2.284186] max77818_charger_get_property : <get_property> psp 4 val 0 [0]
<7>[    2.285204] max77818_charger_owner : Control Owner [FuelGauge] -> [Charger]
<7>[    2.286944] max77818_charger_get_charge_current : reg_data(0x0a), charging current(500)
<7>[    2.287943] max77818_charger_owner : Control Owner [Charger] -> [FuelGauge]
<7>[    2.288772] max77818_charger_get_property : <get_property> psp 32 val 500 [0]
<7>[    2.289777] max77818_charger_owner : Control Owner [FuelGauge] -> [Charger]
<7>[    2.294287] max77818_charger_owner : Control Owner [Charger] -> [FuelGauge]
<7>[    2.295117] max77818_charger_get_property : <get_property> psp 72 val 500 [0]
<7>[    2.295194] max77818_charger_get_property : <get_property> psp 0 val -827378608 [-22]
<7>[    2.295227] max77818_charger_get_property : <get_property> psp 4 val 0 [0]
<6>[    2.295599] max77818_charger_probe : Max77818 Charger Driver Loaded
<7>[    2.300996] max77818_charger_owner : Control Owner [FuelGauge] -> [Charger]
<4>[    2.302425] max77818_fg_probe: MAX77818 Fuelgauge Driver Loading
<7>[    2.307645] max77818_charger_get_charge_current : reg_data(0x0a), charging current(500)
<6>[    2.308197] max77818_fg_parse_dt : FUEL_ALERT_SOC[2]
<7>[    2.312621] max77818_charger_owner : Control Owner [Charger] -> [FuelGauge]
<7>[    2.313470] max77818_charger_get_property : <get_property> psp 32 val 500 [0]
<7>[    2.314497] max77818_charger_owner : Control Owner [FuelGauge] -> [Charger]
<6>[    2.317612] max77818-fuelgauge max77818-fuelgauge: MAX77818 Fuel-Gauge Ver 0x20b0
<6>[    2.326590] max77818_fg_initialize :
<7>[    2.329393] max77818_charger_owner : Control Owner [Charger] -> [FuelGauge]
<7>[    2.330241] max77818_charger_get_property : <get_property> psp 72 val 500 [0]
<6>[    2.331294] max77818_fg_initialize : Power on State [PowerOn]
<6>[    2.336498] max77818_fg_write_model_data : entering !!!!!!
<3>[    2.434908] max77818_fg_write_model_data : To verify custom model loading ...
<3>[    2.646433] max77818_fg_write_model_data : To verify custom model loading end retries[5] ...
<6>[    2.659770] max77818_fg_write_model_data : Finished gaugeIC
<6>[    2.666403] max77818_fg_initialize : soc [98] vcell[4292500]
<6>[    2.695920] sdhci: Secure Digital Host Controller Interface driver
<6>[    2.701066] sdhci: Copyright(c) Pierre Ossman
<6>[    2.705469] sdhci-pltfm: SDHCI platform and OF driver helper
<7>[    2.711875] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/leds/ds1[0]' - status (0)
<7>[    2.711912] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/leds/ds1[0]' - status (0)
<6>[    2.712533] usbcore: registered new interface driver usbhid
<4>[    2.717913] sdhci_msm 7824900.sdhci: sdhci_msm_probe: ICE device is not enabled
<6>[    2.724450] usbhid: USB HID core driver
<7>[    2.728769] of_get_named_gpiod_flags: can't parse 'qcom,gpio-mode-sel' property of node '/soc/usb_detect[0]'
<7>[    2.729410] of_get_named_gpiod_flags: can't parse 'cd-gpios' property of node '/soc/[email protected][0]'
<6>[    2.729438] sdhci_msm 7824900.sdhci: No vreg data found for vdd
<3>[    2.734917] sdhci_msm 7824900.sdhci: sdhci_msm_pm_qos_parse_irq: error -22 reading irq cpu
<5>[    2.742569] sdhci_msm 7824900.sdhci: sdhci_msm_pm_qos_parse: PM QoS voting for IRQ will be disabled
<6>[    2.752107] bimc-bwmon 408000.qcom,cpu-bwmon: BW HWmon governor registered.
<3>[    2.759504] devfreq soc:qcom,cpubw: Couldn't update frequency transition information.
<6>[    2.766744] Netfilter messages via NETLINK v0.30.
<6>[    2.771095] nf_conntrack version 0.5.0 (2489 buckets, 9956 max)
<5>[    2.777018] sdhci_msm 7824900.sdhci: sdhci_msm_pm_qos_parse: PM QoS voting for cpu group will be disabled
<6>[    2.787145] ctnetlink v0.93: registering with nfnetlink.
<6>[    2.792476] ip_set: protocol 6
<6>[    2.795733] gre: GRE over IPv4 demultiplexor driver
<6>[    2.799805] ip_gre: GRE over IPv4 tunneling driver
<6>[    2.807036] ip_tables: (C) 2000-2006 Netfilter Core Team
<6>[    2.811512] arp_tables: (C) 2002 David S. Miller
<6>[    2.816404] sdhci_msm 7824900.sdhci: sdhci_msm_probe: sdiowakeup_irq = 110
<4>[    2.822920] sdhci_msm 7824900.sdhci: sdhci_msm_cfg_sdiowakeup_gpio_irq: wakeup to config: 0 curr: 0
<6>[    2.831934] TCP: cubic registered
<6>[    2.835154] Initializing XFRM netlink socket
<6>[    2.840092] NET: Registered protocol family 10
<6>[    2.844382] sdhci_msm 7824900.sdhci: No vmmc regulator found
<6>[    2.849422] sdhci_msm 7824900.sdhci: No vqmmc regulator found
<6>[    2.856432] mip6: Mobile IPv6
<6>[    2.858396] ip6_tables: (C) 2000-2006 Netfilter Core Team
<6>[    2.864681] mmc0: SDHCI controller on 7824900.sdhci [7824900.sdhci] using 32-bit ADMA in legacy mode
<6>[    2.873442] sit: IPv6 over IPv4 tunneling driver
<6>[    2.879346] ip6_gre: GRE over IPv6 tunneling driver
<6>[    2.883866] NET: Registered protocol family 17
<6>[    2.887774] NET: Registered protocol family 15
<6>[    2.892124] bridge: automatic filtering via arp/ip/ip6tables has been deprecated. Update your scripts to load br_netfilter if you need this.
<5>[    2.905071] Bridge firewalling registered
<6>[    2.908632] Ebtables v2.0 registered
<6>[    2.912328] 8021q: 802.1Q VLAN Support v1.8
<6>[    2.919848] NET: Registered protocol family 27
<7>[    2.928738] gpiochip_find_base: found new base at 852
<7>[    2.928936] gpiochip_add: registered GPIOs 852 to 883 on device: slave-kernel
<7>[    2.929355] gpiochip_find_base: found new base at 820
<7>[    2.929482] gpiochip_add: registered GPIOs 820 to 851 on device: master-kernel
<4>[    2.930105] pil-q6v5-mss 4080000.qcom,mss: Failed to find the pas_id.
<7>[    2.935656] of_get_named_gpiod_flags: parsed 'qcom,gpio-proxy-unvote' property of node '/soc/qcom,[email protected][0]' - status (0)
<7>[    2.936233] of_get_named_gpiod_flags: parsed 'qcom,gpio-err-fatal' property of node '/soc/qcom,[email protected][0]' - status (0)
<7>[    2.936253] of_get_named_gpiod_flags: parsed 'qcom,gpio-err-ready' property of node '/soc/qcom,[email protected][0]' - status (0)
<7>[    2.936269] of_get_named_gpiod_flags: parsed 'qcom,gpio-stop-ack' property of node '/soc/qcom,[email protected][0]' - status (0)
<7>[    2.936285] of_get_named_gpiod_flags: parsed 'qcom,gpio-force-stop' property of node '/soc/qcom,[email protected][0]' - status (0)
<7>[    2.936301] of_get_named_gpiod_flags: parsed 'qcom,gpio-shutdown-ack' property of node '/soc/qcom,[email protected][0]' - status (0)
<6>[    2.936521] pil-q6v5-mss 4080000.qcom,mss: for modem segments only will be dumped.
<5>[    2.965460] ubi0: attaching mtd14
<4>[    2.979449] mmc0: queuing unknown CIS tuple 0x01 (3 bytes)
<4>[    3.013200] mmc0: queuing unknown CIS tuple 0x1a (5 bytes)
<4>[    3.038266] mmc0: queuing unknown CIS tuple 0x1b (8 bytes)
<4>[    3.064519] mmc0: queuing unknown CIS tuple 0x14 (0 bytes)
<4>[    3.131635] mmc0: queuing unknown CIS tuple 0x80 (1 bytes)
<4>[    3.144403] mmc0: queuing unknown CIS tuple 0x81 (1 bytes)
<4>[    3.154268] mmc0: queuing unknown CIS tuple 0x82 (1 bytes)
<6>[    3.164028] mmc0: new ultra high speed SDR104 SDIO card at address 0001
<6>[    3.177234] cnss_sdio:cnss_sdio_wlan_inserted:836:: SDIO Device is Probed
<5>[    4.026837] ubi0: scanning is finished
<5>[    4.039793] ubi0: attached mtd14 (name "system", size 145 MiB)
<5>[    4.044675] ubi0: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
<5>[    4.051449] ubi0: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
<5>[    4.058256] ubi0: VID header offset: 2048 (aligned 2048), data offset: 4096
<5>[    4.065195] ubi0: good PEBs: 1167, bad PEBs: 0, corrupted PEBs: 0
<5>[    4.071240] ubi0: user volume: 3, internal volumes: 1, max. volumes count: 128
<5>[    4.078480] ubi0: max/mean erase counter: 17/8, WL threshold: 4096, image sequence number: 475087259
<5>[    4.087589] ubi0: available PEBs: 0, total reserved PEBs: 1167, PEBs reserved for bad PEB handling: 40
<5>[    4.096895] ubi0: background thread "ubi_bgt0d" started, PID 145
<6>[    4.103692] file system registered
<6>[    4.106378] mbim_init: initialize 1 instances
<6>[    4.110677] mbim_init: Initialized 1 ports
<6>[    4.117071] rndis_qc_init: initialize rndis QC instance
<6>[    4.121650] Number of LUNs=8
<6>[    4.124637] Mass Storage Function, version: 2009/09/11
<6>[    4.129250] LUN: removable file: (no medium)
<6>[    4.133569] Number of LUNs=1
<6>[    4.136525] LUN: removable file: (no medium)
<6>[    4.140617] Number of LUNs=1
<6>[    4.143910] android_usb gadget: android_usb ready
<6>[    4.148230] msm_hsusb msm_hsusb: [ci13xxx_start] hw_ep_max = 32
<6>[    4.154129] msm_hsusb msm_hsusb: CI13XXX_CONTROLLER_UDC_STARTED_EVENT received
<7>[    4.162388] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/keys/[email protected][0]' - status (0)
<7>[    4.162426] of_get_named_gpiod_flags: parsed 'gpios' property of node '/soc/keys/[email protected][0]' - status (0)
<7>[    4.162784] gpio-26 (power_key): gpiod_set_debounce: missing set() or set_debounce() operations
<7>[    4.162943] gpio-21 (factory_key): gpiod_set_debounce: missing set() or set_debounce() operations
<6>[    4.163323] input: gpio-keys as /devices/soc:keys/input/input1
<6>[    4.168828] qcom,qpnp-rtc qpnp-rtc-5: setting system clock to 1970-01-01 00:00:08 UTC (8)
<6>[    4.177293] parse_legacy_cluster_params(): Ignoring cluster params
<6>[    4.182460] /soc/qcom,lpm-levels/qcom,[email protected]: No CPU phandle, assuming single cluster
<3>[    4.190867] calculate_residency: residency < 0 for LPM
<3>[    4.195931] parse_cpu_levels: idx 1 420
<3>[    4.199711] calculate_residency: residency < 0 for LPM
<3>[    4.204871] parse_cpu_levels: idx 2 500
<3>[    4.208653] parse_cpu_levels: idx 2 3040
<6>[    4.217728] qcom,cc-debug-mdm9607 1800000.qcom,debug: Registered Debug Mux successfully
<6>[    4.225151] mem_acc_corner: disabling
<6>[    4.228385] rome_vreg: disabling
<6>[    4.231554] emac_lan_vreg: disabling
<6>[    4.235370] clock_late_init: Removing enables held for handed-off clocks
<5>[    4.254092] UBIFS (ubi0:0): background thread "ubifs_bgt0_0" started, PID 148
<5>[    4.300198] UBIFS (ubi0:0): recovery needed
<5>[    4.532501] UBIFS (ubi0:0): recovery completed
<5>[    4.536044] UBIFS (ubi0:0): UBIFS: mounted UBI device 0, volume 0, name "rootfs"
<5>[    4.543294] UBIFS (ubi0:0): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
<5>[    4.553230] UBIFS (ubi0:0): FS size: 56504320 bytes (53 MiB, 445 LEBs), journal size 7491584 bytes (7 MiB, 59 LEBs)
<5>[    4.563636] UBIFS (ubi0:0): reserved for root: 0 bytes (0 KiB)
<5>[    4.569464] UBIFS (ubi0:0): media format: w4/r0 (latest is w4/r0), UUID 4DEF58B3-88B8-4BF2-ACF6-209CD8105D73, small LPT model
<6>[    4.581219] VFS: Mounted root (ubifs filesystem) on device 0:12.
<6>[    4.587367] Freeing unused kernel memory: 332K (c0960000 - c09b3000)
<4>[    4.593031] This architecture does not have kernel memory protection.
<4>[    4.932096] mount (151) used greatest stack depth: 5216 bytes left
<4>[    5.417931] mdev (168) used greatest stack depth: 5184 bytes left
<5>[    5.594081] UBIFS (ubi0:1): background thread "ubifs_bgt0_1" started, PID 201
<5>[    5.645885] UBIFS (ubi0:1): recovery needed
<5>[    5.840428] UBIFS (ubi0:1): recovery completed
<5>[    5.843947] UBIFS (ubi0:1): UBIFS: mounted UBI device 0, volume 1, name "usrfs"
<5>[    5.851191] UBIFS (ubi0:1): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
<5>[    5.861066] UBIFS (ubi0:1): FS size: 9904128 bytes (9 MiB, 78 LEBs), journal size 9023488 bytes (8 MiB, 72 LEBs)
<5>[    5.871215] UBIFS (ubi0:1): reserved for root: 0 bytes (0 KiB)
<5>[    5.877406] UBIFS (ubi0:1): media format: w4/r0 (latest is w4/r0), UUID C7771054-C33A-44E4-9A71-F3DD06A76BC5, small LPT model
<4>[    5.890992] mount (199) used greatest stack depth: 5096 bytes left
<5>[    5.914194] UBIFS (ubi0:2): background thread "ubifs_bgt0_2" started, PID 204
<5>[    5.962192] UBIFS (ubi0:2): recovery needed
<5>[    6.090634] UBIFS (ubi0:2): recovery completed
<5>[    6.094192] UBIFS (ubi0:2): UBIFS: mounted UBI device 0, volume 2, name "cachefs"
<5>[    6.101514] UBIFS (ubi0:2): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
<5>[    6.111451] UBIFS (ubi0:2): FS size: 72249344 bytes (68 MiB, 569 LEBs), journal size 3555328 bytes (3 MiB, 28 LEBs)
<5>[    6.121955] UBIFS (ubi0:2): reserved for root: 3412514 bytes (3332 KiB)
<5>[    6.128826] UBIFS (ubi0:2): media format: w4/r0 (latest is w4/r0), UUID D31CEDEB-13F1-4AA5-8071-4739E44E744A, small LPT model
<5>[    6.233733] ubi1: attaching mtd8
<5>[    6.506050] ubi1: scanning is finished
<5>[    6.518069] ubi1: attached mtd8 (name "modem", size 41 MiB)
<5>[    6.522611] ubi1: PEB size: 131072 bytes (128 KiB), LEB size: 126976 bytes
<5>[    6.544181] ubi1: min./max. I/O unit sizes: 2048/2048, sub-page size 2048
<5>[    6.549939] ubi1: VID header offset: 2048 (aligned 2048), data offset: 4096
<5>[    6.557081] ubi1: good PEBs: 328, bad PEBs: 0, corrupted PEBs: 0
<5>[    6.562870] ubi1: user volume: 1, internal volumes: 1, max. volumes count: 128
<5>[    6.570157] ubi1: max/mean erase counter: 5/2, WL threshold: 4096, image sequence number: 252101346
<5>[    6.579326] ubi1: available PEBs: 0, total reserved PEBs: 328, PEBs reserved for bad PEB handling: 40
<5>[    6.594120] ubi1: background thread "ubi_bgt1d" started, PID 214
<5>[    6.708942] UBIFS (ubi1:0): UBIFS: mounted UBI device 1, volume 0, name "modem", R/O mode
<5>[    6.716284] UBIFS (ubi1:0): LEB size: 126976 bytes (124 KiB), min./max. I/O unit sizes: 2048 bytes/2048 bytes
<5>[    6.726027] UBIFS (ubi1:0): FS size: 34664448 bytes (33 MiB, 273 LEBs), journal size 9023488 bytes (8 MiB, 72 LEBs)
<5>[    6.736433] UBIFS (ubi1:0): reserved for root: 0 bytes (0 KiB)
<5>[    6.742218] UBIFS (ubi1:0): media format: w4/r0 (latest is w4/r0), UUID ED6E601B-006B-4C63-80F4-2FA86D2D9849, small LPT model
<12>[    6.764782] Starting psmd: done
<12>[    7.109650] PSM: Found config file ARGV /data/psm
<12>[    7.113366] PSM: PSMD Start
<12>[    7.161504] PSM: server_config_path /data/psm/server_config
<12>[    7.178081] PSM: Path for PSM configuration: /data/psm
<12>[    7.183016] PSM: modem_flag_path /data/psm/modem_flag
<12>[    7.197778] PSM: backup_nv_path /data/psm/psm_nv_backup.txt
<12>[    7.203395] PSM: Load modem flag: 1
<6>[    7.213816] subsys-restart: __subsystem_get(): Changing subsys fw_name to modem

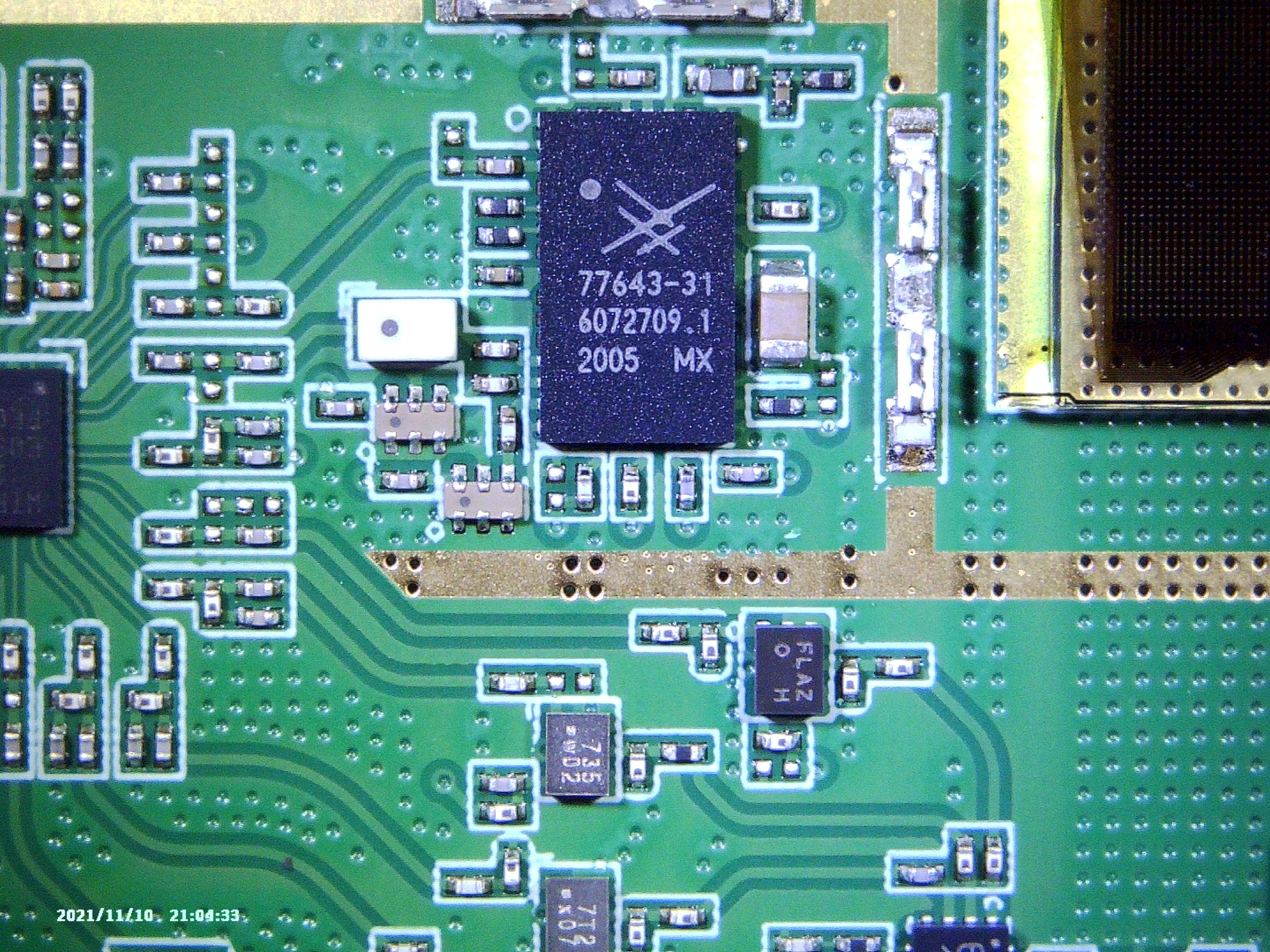

<6>[    7.264424] pil-q6v5-mss 4080000.qcom,mss: modem: loading from 0x82a00000 to 0x86d00000
<6>[    7.276378] msm_otg 78d9000.usb: USB in low power mode
<4>[    7.359743] pil-q6v5-mss 4080000.qcom,mss: Debug policy not present - msadp. Continue.
<6>[    7.382539] pil-q6v5-mss 4080000.qcom,mss: Loading MBA and DP (if present) from 0x8fe00000 to 0x8ff00000 size 100000
<6>[    7.455246] pil-q6v5-mss 4080000.qcom,mss: MBA boot done
<12>[    7.828549] Switching to composition number 0x902D
<3>[    7.913036] enable_store: android_usb: already disabled
<12>[    7.974305] Starting adbd:
<4>[    8.695437] xmllint (323) used greatest stack depth: 5080 bytes left
<6>[    8.774319] read descriptors
<6>[    8.776184] read strings
<6>[    8.778719] rndis_function_bind_config: rndis_function_bind_config MAC: 00:00:00:00:00:00
<4>[    8.804368] android_usb gadget: using random self ethernet address
<4>[    8.814321] android_usb gadget: using random host ethernet address
<6>[    8.854733] rndis0: MAC c6:a4:a6:d6:28:5e
<6>[    8.857713] rndis0: HOST MAC 02:fe:fd:67:1e:38
<12>[    8.976849] Starting qti: QTI:start
<12>[    9.002641] done
<12>[    9.199789] USB QCMAP NL IOCTL Snd GETNEIGH Succ
<12>[    9.259511] Starting QCMAP_ConnectionManager: QCMAP:start
<12>[    9.283936] done
<4>[    9.376734] rc (150) used greatest stack depth: 4844 bytes left
<12>[    9.597581] QCMAP:Start Main
<12>[    9.666836] USB QCMAP NL IOCTL Snd GETNEIGH Succ
<12>[    9.999377] QCMAP:Start DHCP server
<5>[   10.294251] random: dropbear urandom read with 104 bits of entropy available
<12>[   10.710498] QCMAP:DHCP server started
<6>[   10.888050] device rndis0 entered promiscuous mode
<6>[   10.943183] IPv6: ADDRCONF(NETDEV_UP): rndis0: link is not ready
<12>[   10.980989] USB QCMAP NL IOCTL Snd GETNEIGH Succ
<12>[   11.067624] USB QCMAP NL IOCTL Snd GETNEIGH Succ
<12>[   11.187049] USB QCMAP NL IOCTL Snd GETNEIGH Succ
<4>[   11.244141] S20start_wifi_t (489) used greatest stack depth: 4556 bytes left
<12>[   11.416771] QCMAP:WLAN mode
<12>[   11.450045] QCMAP:Start WLAN Enable
<12>[   11.669756] QCMAP:DEV_INACTIVE_TIME_ALWAYS_ON
<12>[   11.745554] Starting WLAN... start ap
<12>[   11.748371] MTU Size is 1500

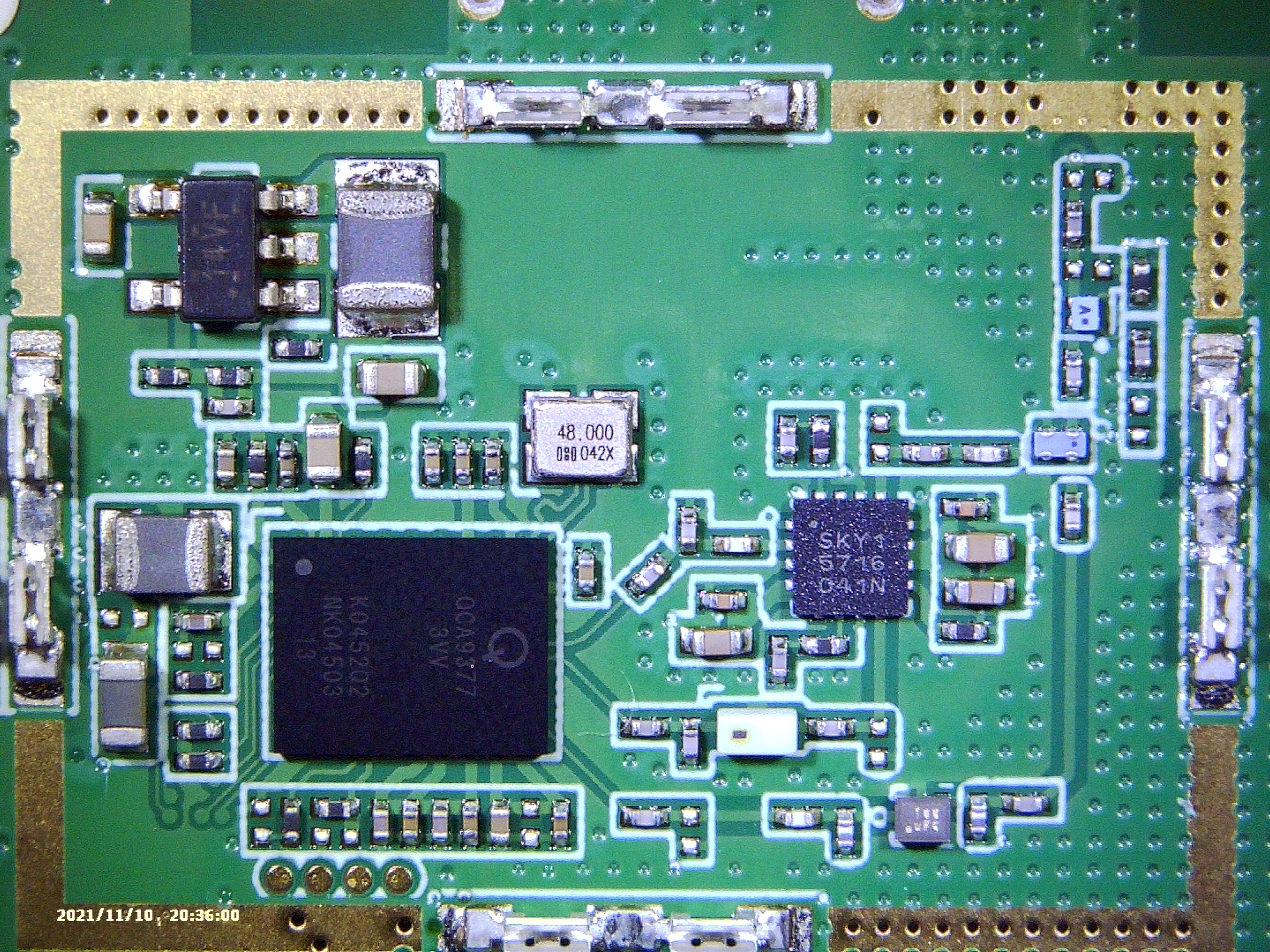

<6>[   13.190041] wlan: loading driver v4.0.11.205G
<4>[   13.302966] mmc0: queuing unknown CIS tuple 0x01 (3 bytes)
<4>[   13.323715] mmc0: queuing unknown CIS tuple 0x1a (5 bytes)
<4>[   13.339827] mmc0: queuing unknown CIS tuple 0x1b (8 bytes)
<4>[   13.350743] mmc0: queuing unknown CIS tuple 0x14 (0 bytes)
<3>[   13.414974] hifDeviceInserted: Dumping clocks (50000000,200000000)
<4>[   13.420121] Decrease host clock from 50000000 to 100000000(50000000,200000000)
<4>[   13.446105] HIFDumpCCCR 0(43) 1(3) 2(0) 3(0) 4(0) 5(0) 6(0) 7(6) 8(17) 9(0) A(10) B(0) C(0) D(0) E(0) F(0) 10(0) 11(0) 12(1) 13(7) 14(7) 15(37) 16(1)
<3>[   13.475903] AR6000: Set async interrupt delay clock as 2.
<6>[   13.524175] R0: wlan: [647:E :HDD] Enter:wlan_hdd_cfg80211_wiphy_alloc
<6>[   13.533734] R0: wlan: [647:E :HDD] hdd_apply_cfg_ini: Reg Parameter gRrmOperChanMax > allowed Maximum [8 > 7]. Enforcing Default= 4
<6>[   13.564114] R0: wlan: [647:E :HDD] hdd_apply_cfg_ini: Reg Parameter gRrmNonOperChanMax > allowed Maximum [8 > 7]. Enforcing Default= 4
<6>[   13.585487] R0: wlan: [647:E :HDD] hdd_apply_cfg_ini: Reg Parameter 5g_rssi_boost_threshold > allowed Maximum [4294967236 > 4294967226]. Enforcing Default= 4294967236
<6>[   13.614081] R0: wlan: [647:E :HDD] hdd_apply_cfg_ini: Reg Parameter 5g_rssi_boost_threshold < allowed Minimum [4294967236 < 4294967241]. Enforcing Default= 4294967236
<6>[   13.644173] R0: wlan: [647:E :HDD] hdd_apply_cfg_ini: Reg Parameter 5g_rssi_penalize_threshold > allowed Maximum [4294967226 > 4294967216]. Enforcing Default= 4294967226
<6>[   13.674132] R0: wlan: [647:E :HDD] hdd_apply_cfg_ini: Reg Parameter 5g_rssi_penalize_threshold < allowed Minimum [4294967226 < 4294967231]. Enforcing Default= 4294967226
<6>[   13.694176] R0: wlan: [647:E :HDD] Enter:wlan_hdd_cfg80211_init
<6>[   13.699092] R0: wlan: [647:E :HDD] Exit:wlan_hdd_cfg80211_init
<4>[   13.836696] AR6000: configuration opcode 3 is not used for Linux SDIO stack
<4>[   13.857100] NUM_DEV=1 FWMODE=0x2 FWSUBMODE=0x0 FWBR_BUF 0
<4>[   13.900802] ol_download_firmware: Using 0x1234 for the remainder of init
<5>[   13.985186] random: nonblocking pool is initialized
<6>[   14.009032] R0: wlan: [647:E :VOS] __ol_transfer_bin_file: transferring file: otp.bin size 25061 bytes done!
<3>[   14.034088] ol_download_firmware: chip_id:0x5020001 board_id:0x0
<3>[   14.040373] __ol_transfer_bin_file: Failed to get bdwlan.b00:-2
<6>[   14.054076] __ol_transfer_bin_file: Trying to load default bdwlan.bin
<4>[   14.064918] Board extended Data download address: 0x0
<6>[   14.099546] R0: wlan: [647:E :VOS] __ol_transfer_bin_file: transferring file: bdwlan.bin size 8124 bytes done!
<4>[   14.125810] __ol_transfer_bin_file: no Setup file defined
<6>[   16.015133] R0: wlan: [647:E :VOS] __ol_transfer_bin_file: transferring file: qwlan.bin size 613096 bytes done!
<4>[   16.040085] +HTCCreate ..  HIF :ce8e4000
<4>[   16.043115] HIF Interrupt processing is SYNC ONLY
<4>[   16.054025] AR6000: configuration opcode 7 is only used for RTOS systems, not Linux systems
<4>[   16.061335] AR6000: configuration opcode 5 is not used for Linux SDIO stack
<4>[   16.084697] -HTCCreate (0xcd275000)
<6>[   16.094475] R0: wlan: [647:F :WDA] WMA --> wmi_unified_attach - success
<4>[   16.100107] ol_if_dfs_attach: called; ptr=ce909d60, radar_info=c73ada1c
<6>[   16.120074] R0: wlan: [647:E :SAP] dfs_init_radar_filters[217]: Unknown dfs domain 0
<4>[   16.144275] +HWT
<4>[   16.146999] Target Ready! : transmit resources : 3 size:1792, MaxMsgsPerHTCBundle = 32
<4>[   16.164285] HTC Service Index : 1 TX : 0x100 : alloc:3
<4>[   16.168480] HTC Service:0x0001, ULpipe:1 DLpipe:0 id:0 Ready
<4>[   16.184075] -HWT
<4>[   16.185517] MAILBOX SWAP Service is enabled!
<4>[   16.189141] Reduced Tx Complete service is enabled!
<4>[   16.207197] is_full_reorder_offloaded? 0
<4>[   16.210089] HTC Service TX : 0x300 : allocation is zero!
<4>[   16.226371] HTC Service:0x0300, ULpipe:1 DLpipe:0 id:1 Ready
<4>[   16.230995] HTC Service:0x0300 ep:1 TX flow control disabled
<4>[   16.255028] TXRX: page_divider 0x6, offset_filter 0x3f num elem 4800, ol desc num page 75, ol desc per page 64HTC Service:0x0100, ULpipe:3 DLpipe:2 id:2 Ready
<6>[   16.281767] R0: wlan: [647:F :WDA] WMA --> wmi_unified_connect_htc_service - success
<6>[   16.304063] R0: wlan: [655:F :WDA] McThread: WNI_CFG_DNLD_REQ
<4>[   16.308840] HTC using TX credit flow control
<6>[   16.314824] __wmi_control_rx: WMI UNIFIED SERVICE READY event
<6>[   16.319540] R0: wlan: [4:F :WDA] WMA <-- WMI_SERVICE_READY_EVENTID
<6>[   16.334025] R0: wlan: [4:E :WDA] wma_rx_service_ready_event: Firmware build version : 00000058
<6>[   16.341599] R0: wlan: [4:E :WDA] wma_rx_service_ready_event: Board version: 0.26014008
<6>[   16.375448] R0: wlan: [4:F :WDA] WMA --> WMI_INIT_CMDID
<6>[   16.395520] __wmi_control_rx:  WMI UNIFIED READY event
<6>[   16.399631] R0: wlan: [4:F :WDA] WMA <-- WMI_READY_EVENTID
<6>[   16.414798] R0: wlan: [647:E :HDD] Enter:wlan_hdd_cfg80211_register
<3>[   16.422353] __wmi_control_rx : event handler is not registered: event id 0x1d019
<6>[   16.444703] R0: wlan: [647:E :HDD] Exit:wlan_hdd_cfg80211_register
<6>[   16.449957] R0: wlan: [655:E :WDA] Invalid wda_cli_set pdev command/Not yet implemented 0x4d
<6>[   16.470109] R0: wlan: [655:E :WDA] Invalid wda_cli_set pdev command/Not yet implemented 0x88
<6>[   16.477650] R0: wlan: [647:E :SME] csr_init_chan_list: 335: init time country code US
<6>[   16.494081] R0: wlan: [655:E :WDA] Invalid wda_cli_set pdev command/Not yet implemented 0x23
<6>[   16.501542] cfg80211: Calling CRDA for country: US
<6>[   16.514420] R0: wlan: [4:E :HDD] Enter:vos_update_band
<6>[   16.518547] R0: wlan: [4:F :HDD] pAdapter is null !!
<6>[   16.546922] R0: wlan: [4:E :WDA] regdmn_set_dfs_region: dfs_region: 1
<6>[   16.553949] R0: wlan: [647:E :WDA] MCC TX Pause Event Handler register
<6>[   16.574099] cfg80211: Regulatory domain changed to country: US
<6>[   16.578903] cfg80211:  DFS Master region: FCC
<6>[   16.583066] cfg80211:   (start_freq - end_freq @ bandwidth), (max_antenna_gain, max_eirp), (dfs_cac_time)
<6>[   16.592880] R0: wlan: [647:E :WDA] Target does not support cesium network
<4>[   16.606750] target uses HTT version 3.54; host uses 3.28
<4>[   16.611031] *** Warning: host/target HTT versions are different, though compatible!
<6>[   16.618819] R0: wlan: [647:E :SME] sme_AddChAvoidCallback: Plug in CH AVOID CB
<6>[   16.635917] R0: wlan: [655:E :WDA] wma_unified_vdev_create_send: ID = 0 VAP Addr = f4:63:49:b1:9a:a9
<6>[   16.644263] cfg80211:   (2402000 KHz - 2472000 KHz @ 40000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.652001] cfg80211:   (5170000 KHz - 5250000 KHz @ 80000 KHz, 160000 KHz AUTO), (N/A, 3000 mBm), (N/A)
<6>[   16.674508] R0: wlan: [655:E :WDA] invalid rate code, ignore.
<6>[   16.683891] R0: wlan: [647:E :HDD] Enter:hdd_register_wext
<6>[   16.688437] R0: wlan: [647:E :HDD] Enter:hdd_set_wext
<6>[   16.693377] R0: wlan: [647:E :HDD] Enter:hdd_clearRoamProfileIe
<6>[   16.714030] R0: wlan: [647:E :HDD] Exit:hdd_clearRoamProfileIe
<6>[   16.718826] R0: wlan: [647:E :HDD] Exit:hdd_set_wext
<6>[   16.723777] R0: wlan: [647:E :HDD] Exit:hdd_register_wext
<6>[   16.730496] cfg80211:   (5250000 KHz - 5330000 KHz @ 80000 KHz, 160000 KHz AUTO), (N/A, 2400 mBm), (0 s)
<6>[   16.744107] cfg80211:   (5490000 KHz - 5730000 KHz @ 160000 KHz), (N/A, 2400 mBm), (0 s)
<6>[   16.751161] cfg80211:   (5735000 KHz - 5835000 KHz @ 80000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.784076] cfg80211:   (5842000 KHz - 5863000 KHz @ 5000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.790964] cfg80211:   (5850000 KHz - 5870000 KHz @ 10000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.815394] cfg80211:   (5860000 KHz - 5880000 KHz @ 10000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.822366] cfg80211:   (5865000 KHz - 5885000 KHz @ 20000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.844177] cfg80211:   (5870000 KHz - 5890000 KHz @ 10000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.851148] cfg80211:   (5880000 KHz - 5900000 KHz @ 10000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.874040] cfg80211:   (5890000 KHz - 5910000 KHz @ 10000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.881012] cfg80211:   (5895000 KHz - 5915000 KHz @ 20000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.904104] cfg80211:   (5900000 KHz - 5920000 KHz @ 10000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.911079] cfg80211:   (5910000 KHz - 5930000 KHz @ 10000 KHz), (N/A, 3000 mBm), (N/A)
<6>[   16.937176] cfg80211:   (57240000 KHz - 63720000 KHz @ 2160000 KHz), (N/A, 4000 mBm), (N/A)
<6>[   16.955487] R0: wlan: [647:E :HDD] hdd_wlan_green_ap_mc: 568: Green-AP no SAP adapter
<6>[   17.006797] R0: wlan: [655:E :WDA] Invalid wda_cli_set pdev command/Not yet implemented 0x34
<6>[   17.015715] Host SW:4.0.11.205G, FW:0.0.0.88, HW:QCA93x7_REV1_1
<6>[   17.020778] R0: wlan: [647:E :HDD] Enter:wlan_hdd_cfg80211_register_frames
<6>[   17.078030] ol_pktlog_init: pktlogmod_init successfull
<6>[   17.108179] R0: wlan: [647:E :HDD] hdd_wlan_startup: 16409: enhance green ap is not enabled
<6>[   17.124125] ath_hif_sdio: HIF (Atheros/multi-bss)
<6>[   17.127819] wlan: driver loaded in 3937806
<4>[   17.146061] insmod (647) used greatest stack depth: 4088 bytes left
<6>[   17.155078] R0: wlan: [0:E :HDD] __hdd_set_multicast_list: 10206: mc addr list ini is disabled
<6>[   17.175078] R0: wlan: [679:E :HDD] Enter:__wlan_hdd_cfg80211_set_power_mgmt
<6>[   17.194573] R0: wlan: [679:E :HDD] Exit:__wlan_hdd_cfg80211_set_power_mgmt
<6>[   17.200442] R0: wlan: [0:E :HDD] __hdd_set_multicast_list: 10206: mc addr list ini is disabled
<6>[   17.225510] IPv6: ADDRCONF(NETDEV_UP): wlan0: link is not ready
<12>[   17.256893] QCMAP:Start Hostapd
<6>[   17.639617] R0: wlan: [692:E :HDD] Enter:__is_driver_dfs_capable
<6>[   17.657442] R0: wlan: [692:E :HDD] Enter:__wlan_hdd_cfg80211_change_iface
<6>[   17.674138] R0: wlan: [692:E :HDD] hdd_wlan_green_ap_mc: 568: Green-AP no SAP adapter
<6>[   17.686479] R0: wlan: [692:E :HDD] Enter:hdd_init_ap_mode
<6>[   17.704416] R0: wlan: [692:E :VOS] vos_get_context: pVosContext != gpVosContext
<6>[   17.710695] R0: wlan: [692:E :HDD] wlan_hdd_get_dfs_mode: 19065: ACS dfs mode is NONE
<6>[   17.735585] R0: wlan: [655:E :WDA] wma_unified_vdev_create_send: ID = 0 VAP Addr = f4:63:49:b1:9a:a9
<6>[   17.744306] R0: wlan: [655:E :WDA] invalid rate code, ignore.
<6>[   17.758267] R0: wlan: [692:E :HDD] Exit:__wlan_hdd_cfg80211_change_iface
<6>[   17.810396] R0: wlan: [692:E :HDD] hdd_hostapd_SAPEventCB: usrDataForCallback is null
<6>[   17.840179] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: e0:63:da:28:0f:10 CH 1 RSSI 52 SNR 44 Seq.no 715 Source-Addr: e0:63:da:28:0f:10
<4>[   17.865871] hostapd (692) used greatest stack depth: 3688 bytes left
<6>[   17.884351] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: e2:63:da:28:0f:10 CH 1 RSSI 52 SNR 44 Seq.no 2526 Source-Addr: e2:63:da:28:0f:10
<6>[   17.921591] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: e0:63:da:28:0f:10 CH 1 RSSI 52 SNR 44 Seq.no 716 Source-Addr: e0:63:da:28:0f:10
<6>[   17.976582] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: e2:63:da:28:0f:10 CH 1 RSSI 52 SNR 44 Seq.no 2527 Source-Addr: e2:63:da:28:0f:10
<6>[   18.004615] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: 1c:3b:f3:d6:04:1d CH 2 RSSI 89 SNR 7 Seq.no 3146 Source-Addr: 1c:3b:f3:d6:04:1d
<6>[   18.044358] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: 1c:3b:f3:d6:04:1d CH 2 RSSI 87 SNR 9 Seq.no 3147 Source-Addr: 1c:3b:f3:d6:04:1d
<6>[   18.101812] R0: wlan: [699:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.124082] R0: wlan: [699:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.161311] R0: wlan: [701:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.173038] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: f8:a0:97:45:9f:61 CH 5 RSSI 55 SNR 41 Seq.no 1903 Source-Addr: f8:a0:97:45:9f:61
<6>[   18.188018] R0: wlan: [701:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.214720] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: f8:a0:97:45:9f:61 CH 5 RSSI 48 SNR 48 Seq.no 1904 Source-Addr: f8:a0:97:45:9f:61
<6>[   18.248869] R0: wlan: [703:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.253762] R0: wlan: [703:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.305384] R0: wlan: [705:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.318863] R0: wlan: [705:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.335861] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: f8:a0:97:45:9f:61 CH 7 RSSI 48 SNR 48 Seq.no 1907 Source-Addr: f8:a0:97:45:9f:61
<6>[   18.370089] R0: wlan: [707:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.377845] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: f8:a0:97:45:9f:61 CH 7 RSSI 50 SNR 46 Seq.no 1908 Source-Addr: f8:a0:97:45:9f:61
<6>[   18.404040] R0: wlan: [707:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.441109] R0: wlan: [709:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.454507] R0: wlan: [709:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.496724] R0: wlan: [711:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.514104] R0: wlan: [711:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.550910] R0: wlan: [713:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.564064] R0: wlan: [713:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.600719] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: a0:8c:fd:60:d3:36 CH 10 RSSI 85 SNR 11 Seq.no 2344 Source-Addr: a0:8c:fd:60:d3:36
<6>[   18.625971] R0: wlan: [715:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.630862] R0: wlan: [715:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.665691] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: 88:ad:43:31:86:48 CH 11 RSSI 52 SNR 44 Seq.no 1247 Source-Addr: 88:ad:43:31:86:48
<6>[   18.696233] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: 88:ad:43:31:86:48 CH 11 RSSI 52 SNR 44 Seq.no 1247 Source-Addr: 88:ad:43:31:86:48
<6>[   18.715364] R0: wlan: [717:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.720255] R0: wlan: [717:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.739164] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: 00:71:c2:b5:58:c0 CH 11 RSSI 60 SNR 36 Seq.no 2824 Source-Addr: 00:71:c2:b5:58:c0
<6>[   18.765962] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: 88:ad:43:31:86:48 CH 11 RSSI 54 SNR 42 Seq.no 1248 Source-Addr: 88:ad:43:31:86:48
<6>[   18.799912] R0: wlan: [719:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.805216] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: 00:71:c2:b5:58:c0 CH 11 RSSI 61 SNR 35 Seq.no 2826 Source-Addr: 00:71:c2:b5:58:c0
<6>[   18.834094] R0: wlan: [719:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.840375] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: a0:8c:fd:60:d3:36 CH 11 RSSI 84 SNR 12 Seq.no 2346 Source-Addr: a0:8c:fd:60:d3:36
<6>[   18.869762] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 5, BSSID: d0:bf:9c:ae:49:44 CH 11 RSSI 73 SNR 23 Seq.no 2359 Source-Addr: d0:bf:9c:ae:49:44
<6>[   18.886723] R0: wlan: [721:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.891613] R0: wlan: [721:E :HDD] Exit:__iw_softap_getchannel
<6>[   18.918571] R0: wlan: [655:E :HDD] Enter:wlan_hdd_cfg80211_update_bss
<6>[   18.926493] R0: wlan: [655:E :HDD] Exit:wlan_hdd_cfg80211_update_bss
<6>[   18.933242] R0: wlan: [655:E :SME] sme_SelectCBMode: HW: 16 CH: 3 ORIG_BW: 0
<6>[   18.933242]
<6>[   18.960246] R0: wlan: [723:E :HDD] Enter:__iw_softap_getchannel
<6>[   18.977440] R0: wlan: [723:E :HDD] Exit:__iw_softap_getchannel
<6>[   19.014813] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_del_station
<6>[   19.020502] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_del_station
<6>[   19.044270] R0: wlan: [727:E :HDD] Enter:__iw_softap_getchannel
<6>[   19.049163] R0: wlan: [727:E :HDD] Exit:__iw_softap_getchannel
<6>[   19.064145] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_del_station
<6>[   19.069830] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_del_station
<6>[   19.096509] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_del_key
<6>[   19.101854] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_del_key
<6>[   19.134235] R0: wlan: [729:E :HDD] Enter:__iw_softap_getchannel
<6>[   19.139127] R0: wlan: [729:E :HDD] Exit:__iw_softap_getchannel
<6>[   19.154328] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_del_key
<6>[   19.159786] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_del_key
<6>[   19.174317] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_del_key
<6>[   19.184324] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_del_key
<6>[   19.207347] R0: wlan: [731:E :HDD] Enter:__iw_softap_getchannel
<6>[   19.212241] R0: wlan: [731:E :HDD] Exit:__iw_softap_getchannel
<6>[   19.285861] R0: wlan: [733:E :HDD] Enter:__iw_softap_getchannel
<6>[   19.290754] R0: wlan: [733:E :HDD] Exit:__iw_softap_getchannel
<6>[   19.357082] R0: wlan: [735:E :HDD] Enter:__iw_softap_getchannel
<6>[   19.361974] R0: wlan: [735:E :HDD] Exit:__iw_softap_getchannel
<6>[   19.424775] R0: wlan: [737:E :HDD] Enter:__iw_softap_getchannel
<6>[   19.429666] R0: wlan: [737:E :HDD] Exit:__iw_softap_getchannel
<6>[   19.465336] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_start_ap
<6>[   19.471117] R0: wlan: [693:E :HDD] Enter:wlan_hdd_cfg80211_alloc_new_beacon
<6>[   19.497051] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_set_channel
<6>[   19.514859] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_set_channel
<6>[   19.520444] R0: wlan: [693:E :HDD] Enter:wlan_hdd_cfg80211_start_bss
<6>[   19.534062] R0: wlan: [693:E :HDD] wlan_hdd_get_dfs_mode: 19065: ACS dfs mode is NONE
<6>[   19.540874] R0: wlan: [693:E :SAP] WLANSAP_set_Dfs_Restrict_JapanW53: 3334: Regdomain not japan, set disable JP W53 not valid
<6>[   19.575424] R0: wlan: [693:E :SAP] WLANSAP_set_Dfs_Preferred_Channel_location: 3408: sapdfs:NOT JAPAN REG, Invalid Set preferred chans location
<6>[   19.605226] R0: wlan: [693:E :SME] sme_SelectCBMode: HW: 64 CH: 3 ORIG_BW: 0
<6>[   19.605226]
<6>[   19.617889] R0: wlan: [693:E :SME] sme_SelectCBMode: HW: 64 CH: 3 ORIG_BW: 0
<6>[   19.617889]
<6>[   19.636367] R0: wlan: [693:E :SME] sme_SelectCBMode: HW: 64 CH: 3 ORIG_BW: 0
<6>[   19.636367]
<6>[   19.657141] R0: wlan: [655:E :PE ] limMlmAddBss: 1659: TRYING TO HIDE SSID 0
<6>[   19.663177] R0: wlan: [655:E :PE ] mlm_add_sta: 1548: GF: 0, ChnlWidth: 0, MimoPS: 3, lsigTXOP: 0, dsssCCK: 0, SGI20: 1, SGI401
<6>[   19.684617] R0: wlan: [655:E :WDA] wma_create_peer: Created peer with peer_addr f4:63:49:b1:9a:a9 vdev_id 0, peer_count - 1
<6>[   19.704777] R0: wlan: [655:E :WDA] BSS chan width: quarterrate_flag: 0, halfrate_flag: 0
<6>[   19.805016] R0: wlan: [655:E :PE ] PopulateDot11fERPInfo: 610: 11B protection not enabled. Not populating ERP IE 0
<6>[   19.824153] R0: wlan: [655:E :PE ] PopulateDot11fERPInfo: 610: 11B protection not enabled. Not populating ERP IE 0
<6>[   19.846949] R0: wlan: [693:E :HDD] Exit:wlan_hdd_cfg80211_start_bss
<6>[   19.852186] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_start_ap
<6>[   19.859913] R0: wlan: [655:E :HDD] AP(3) f4:63:49:b1:9a:a9
<6>[   19.874409] R0: wlan: [739:E :HDD] Enter:__iw_softap_getchannel
<6>[   19.879297] R0: wlan: [739:E :HDD] Exit:__iw_softap_getchannel
<6>[   19.894122] IPv6: ADDRCONF(NETDEV_CHANGE): wlan0: link becomes ready
<6>[   19.901677] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_change_bss
<6>[   19.914184] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_change_bss
<6>[   19.943557] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_add_key
<6>[   19.974325] R0: wlan: [655:F :WDA] BSS Key setup with vdev_mac f4:63:49:b1:9a:a9
<6>[   19.974325]
<6>[   19.984169] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_add_key
<6>[   19.989555] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_set_default_key
<6>[   20.003093] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_set_default_key
<6>[   20.026186] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_add_key
<6>[   20.031734] R0: wlan: [655:F :WDA] BSS Key setup with vdev_mac f4:63:49:b1:9a:a9
<6>[   20.031734]
<6>[   20.055131] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_add_key
<6>[   20.060516] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_set_default_mgmt_key
<6>[   20.085240] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_set_txq_params
<6>[   20.090479] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_set_txq_params
<6>[   20.114152] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_set_txq_params
<6>[   20.119347] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_set_txq_params
<6>[   20.135511] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_set_mac_acl
<6>[   20.141203] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_set_mac_acl
<12>[   20.178446] QCMAP: Wlan0 Hostapd Start Success
<6>[   20.264384] device wlan0 entered promiscuous mode
<6>[   20.268928] bridge0: port 2(wlan0) entered forwarding state
<6>[   20.273663] bridge0: port 2(wlan0) entered forwarding state
<12>[   20.404754] QCMAP:WLAN Enabled
<12>[   20.420033] QCMAP:Enable mobileap
<6>[   21.348662] pil-q6v5-mss 4080000.qcom,mss: modem: Brought out of reset
<6>[   21.416383] pil-q6v5-mss 4080000.qcom,mss: Subsystem error monitoring/handling services are up
<6>[   21.424157] pil-q6v5-mss 4080000.qcom,mss: modem: Power/Clock ready interrupt received
<12>[   21.434217] PSM: Modem Loaded
<3>[   21.476324] diag: In diag_send_feature_mask_update, control channel is not open, p: 0, c0acfbbc
<12>[   22.537582] PSM: DMS Ind register  - result: 0, error: 0
<6>[   22.565128] msm_thermal:set_enabled enabled = 0
<12>[   22.654904] PSM: Oprt mode event report req qmi response - result: 0, error: 0
<12>[   22.723918] PSM: result - 0 error - 0
<12>[   22.744448] PSM: Modem oprt mode - 0
<12>[   22.758518] PSM: backup_nv_path /data/psm/psm_nv_backup.txt
<12>[   22.763603] PSM: Log and QMI Init completed
<12>[   22.834463] PSM: Supported: 0
<12>[   22.836612] PSM: Core server init completed
<12>[   22.840930] PSM: Client and event thread created
<12>[   23.237936] GUIMGR:QCMAP_StaInterface wlan0 CHECK
<12>[   23.256701] qcmap_cm_get_basic_info
<12>[   23.310626] QCMAP STA Interface: DEV_CHECK
<12>[   23.323444] QCMAP: CARD STATUS - UIM STATE READY
<6>[   23.358865] sps:BAM 0x04044000 is registered.
<6>[   23.413352] sps:BAM 0x04044000 (va:0xd19c0000) enabled: ver:0x27, number of pipes:6
<12>[   23.596641] eMBMs Tunneling Module:start
<6>[   23.664098] R0: wlan: [655:E :PE ] pe_reset_protection_callback: 191: old state: 0x0000, new state: 0x0000, old_op_mode[0], new_op_mode[0], LimAssocStaLimit[12]
<12>[   24.457255] Starting qti_ppp: QTI_PPP:start
<12>[   24.627917] UNIFIED /var/tmp/qcmap_pdc_state not found -- 1
<12>[   24.741319] QCMAP:Enable mobileap done
<12>[   25.247045] mbimd: Proc start
<6>[   25.278287] mbim_open: Open mbim driver
<6>[   25.281093] mbim_open: Lock mbim_dev->open_excl for open
<3>[   25.304173] mbim_open: USB cable not connected
<6>[   25.307591] mbim_open: Exit, mbim file opened
<12>[   25.698010] UNIFIED /var/tmp/qcmap_pdc_state not found -- 2
<12>[   25.781515] QCMAP:Init Complete
<12>[   25.826844] USB QCMAP NL IOCTL Snd GETNEIGH Succ
<4>[   26.424735] ld7032_ioctl: cmd [200/0xC8]
<12>[   26.556723] [MMI_GUI] MmiIoctlSetLCDOn-turn on lcd
<12>[   26.580326] [MMI_GUI] [GUI-EVT-IN] msg rcvd=37, 0
<12>[   26.641819] [MMI_GUI] [GUI-EVT-IN] msg rcvd=33, 2
<12>[   26.703634] [MMI_GUI] [GUI-EVT-IN] msg rcvd=10, 84
<12>[   26.711520] UNIFIED /var/tmp/qcmap_pdc_state not found -- 3
<12>[   26.764608] [MMI_GUI] [GUI-EVT-IN] msg rcvd=47, 1
<12>[   26.825480] [MMI_GUI] [GUI-EVT-IN] msg rcvd=49, 1
<12>[   26.887835] [MMI_GUI] [GUI-EVT-IN] msg rcvd=9, 21
<12>[   26.953318] [MMI_GUI] [GUI-EVT-IN] msg rcvd=0, 1
<12>[   27.139242] [MMI_GUI] [GUI-EVT-IN] msg rcvd=1, 0
<12>[   27.199369] [MMI_GUI] [GUI-EVT-IN] msg rcvd=1, 0
<12>[   27.261541] [MMI_GUI] [GUI-EVT-IN] msg rcvd=1, 0
<12>[   27.322122] [MMI_GUI] [GUI-EVT-IN] msg rcvd=1, 0
<12>[   27.721822] UNIFIED /var/tmp/qcmap_pdc_state not found -- 4
<6>[   27.726646] R0: wlan: [655:E :PE ] pe_reset_protection_callback: 191: old state: 0x0000, new state: 0x0000, old_op_mode[0], new_op_mode[0], LimAssocStaLimit[12]
<12>[   27.805510] QCMAP:Receive DEV_CHECK
<12>[   27.818434] QCMAP:StopSleepTimer
<12>[   27.830624] QCMAP:DEV_INACTIVE_TIME_ALWAYS_ON
<12>[   27.845854] QCMAP: UIM IND - UIM STATE READY
<12>[   27.870314] UNIFIED - old : TMOBILE(0x05010603) new : TMOBILE(0x05010603)
<12>[   27.895708] UNIFIED config_desc : TMOBILE
<12>[   27.969817] QCMAP: UIM IND - UIM STATE READY
<12>[   28.006535] [MMI_GUI] [GUI-EVT-IN] msg rcvd=26, 0
<12>[   28.039244] QCMAP: UIM IND - UIM STATE READY
<12>[   28.077709] QCMAP: Modem in service NAS indication received
<12>[   28.106693] QCMAP:bringup v4
<12>[   28.228957] [MMI_GUI] [GUI-EVT-IN] msg rcvd=1, 0
<12>[   28.358410] QCMAP:bringup v6
<12>[   28.398799] QCMAP: Modem in service NAS indication received
<12>[   29.270368] [MMI_GUI] [GUI-EVT-IN] msg rcvd=3, 5
<12>[   29.341858] [MMI_GUI] [GUI-EVT-IN] msg rcvd=1, 3
<12>[   29.440556] [MMI_GUI] [GUI-EVT-IN] msg rcvd=32, 4
<12>[   29.508904] [MMI_GUI] [GUI-EVT-IN] msg rcvd=25, 0
<12>[   29.572957] [MMI_GUI] [GUI-EVT-IN] msg rcvd=38, 0
<12>[   29.613736] QCMAP:WAN connected v4
<12>[   30.252240] [MMI_GUI] [GUI-EVT-IN] msg rcvd=50, 0
<6>[   30.277317] device bridge0 entered promiscuous mode
<6>[   30.294789] device rmnet_data0 entered promiscuous mode
<12>[   30.311435] QCMAP:Start DHCP server
<12>[   30.743351] QCMAP:DHCP server started
<12>[   30.765011] QCMAP:DHCPV6 DNS server started
<12>[   30.902940] QCMAP:WAN connected v6
<12>[   31.265830] [MMI_GUI] [GUI-EVT-IN] msg rcvd=32, 3
<6>[   31.754104] R0: wlan: [655:E :PE ] pe_reset_protection_callback: 191: old state: 0x0000, new state: 0x0000, old_op_mode[0], new_op_mode[0], LimAssocStaLimit[12]
<6>[   33.611812] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 11, BSSID: f4:63:49:b1:9a:a9 CH 3 RSSI 47 SNR 49 Seq.no 650 Source-Addr: 8c:85:90:9a:a8:8e
<6>[   33.632254] R0: wlan: [655:E :PE ] limHandle80211Frames: 754: RX MGMT - Type 0, SubType 0, BSSID: f4:63:49:b1:9a:a9 CH 3 RSSI 47 SNR 49 Seq.no 651 Source-Addr: 8c:85:90:9a:a8:8e
<6>[   33.648456] R0: wlan: [655:E :PE ] limProcessAssocReqFrame: 265: Received Assoc Req Frame on sessionid: 0 systemrole 1 limMlmState 6 from: 8c:85:90:9a:a8:8e
<6>[   33.662317] R0: wlan: [655:E :PE ] limProcessAssocReqFrame: 758: RSN enabled auth, peer(1, 20) Re/Assoc req from STA: 8c:85:90:9a:a8:8e
<6>[   33.676123] R0: wlan: [655:E :PE ] limCheckRxRSNIeMatch: 510: weAreCapable 1, weRequire 0, theyAreCapable 1, theyRequire 0, PMFconnection 1
<6>[   33.689191] R0: wlan: [655:E :PE ] limProcessAssocReqFrame: 1150: Received Assoc Req  successful from 8c:85:90:9a:a8:8e
<6>[   33.702471] R0: wlan: [655:E :WDA] wma_create_peer: Created peer with peer_addr 8c:85:90:9a:a8:8e vdev_id 0, peer_count - 2
<6>[   33.716747] R0: wlan: [655:E :PE ] PopulateDot11fERPInfo: 610: 11B protection not enabled. Not populating ERP IE 0
<6>[   33.734706] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_change_station
<6>[   33.740434] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_change_station
<6>[   33.749919] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_del_key
<6>[   33.758864] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_del_key
<6>[   33.764569] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_change_station
<6>[   33.770272] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_change_station
<6>[   33.783275] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_add_key
<6>[   33.790106] R0: wlan: [655:F :WDA] BSS Key setup with vdev_mac f4:63:49:b1:9a:a9
<6>[   33.790106]
<6>[   33.799400] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_add_key
<6>[   33.807676] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_set_default_key
<6>[   33.814981] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_set_default_key
<6>[   33.821101] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_add_key
<6>[   33.827800] R0: wlan: [655:F :WDA] BSS Key setup with vdev_mac f4:63:49:b1:9a:a9
<6>[   33.827800]
<6>[   33.836202] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_add_key
<6>[   33.844799] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_set_default_mgmt_key
<6>[   33.861848] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_get_key
<12>[   33.873367] WLAN Client Mac Address is 8c:85:90:9a:a8:8e
<6>[   33.877841] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_get_key
<6>[   33.886040] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_get_key
<6>[   33.892445] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_get_key
<6>[   33.906718] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_cfg80211_add_key
<6>[   33.914982] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_cfg80211_add_key
<6>[   33.922548] R0: wlan: [693:E :HDD] Enter:__wlan_hdd_change_station
<6>[   33.957821] R0: wlan: [693:E :HDD] Exit:__wlan_hdd_change_station
<12>[   33.990993] QCMAP:StopSleepTimer
<12>[   34.002473] QCMAP:Wlan Client IP Addr 192.168.164.134
<12>[   34.239532] [MMI_GUI] [GUI-EVT-IN] msg rcvd=32, 1
<12>[   34.318609] [MMI_GUI] [GUI-EVT-IN] msg rcvd=4, 1
<12>[   34.990718] QCMAP:Wlan Client IP Addr fe80::c0b0:644c:9690:e088
<4>[   35.222557] NOHZ: local_softirq_pending 08
<4>[   35.227877] NOHZ: local_softirq_pending 08
<4>[   35.275708] NOHZ: local_softirq_pending 08
<6>[   35.294068] bridge0: port 2(wlan0) entered forwarding state
<4>[   35.666892] NOHZ: local_softirq_pending 08
<4>[   35.674835] NOHZ: local_softirq_pending 08
<4>[   35.723843] NOHZ: local_softirq_pending 08
<6>[   35.774200] R0: wlan: [655:E :PE ] pe_reset_protection_callback: 191: old state: 0x0000, new state: 0x0000, old_op_mode[0], new_op_mode[0], LimAssocStaLimit[12]
<4>[   35.820833] NOHZ: local_softirq_pending 08
<4>[   35.829790] NOHZ: local_softirq_pending 08
<4>[   35.843776] NOHZ: local_softirq_pending 08
<4>[   36.314242] NOHZ: local_softirq_pending 08
<6>[   37.014731] nf_conntrack: automatic helper assignment is deprecated and it will be removed soon. Use the iptables CT target to attach helpers instead.
<12>[   37.235607] [MMI_GUI] [GUI-EVT-IN] msg rcvd=32, 3
<12>[   38.013612] Starting QCMAP_Web_CLIENT: done
<6>[   39.804545] R0: wlan: [655:E :PE ] pe_reset_protection_callback: 191: old state: 0x0000, new state: 0x0000, old_op_mode[0], new_op_mode[0], LimAssocStaLimit[12]
<12>[   42.245212] [MMI_GUI] [GUI-EVT-IN] msg rcvd=3, 4
<12>[   43.113042] QCMAP:Enable mobileap
<12>[   43.127193] QCMAP:Enable mobileap done
<6>[   43.824243] R0: wlan: [655:E :PE ] pe_reset_protection_callback: 191: old state: 0x0000, new state: 0x0000, old_op_mode[0], new_op_mode[0], LimAssocStaLimit[12]
<6>[   47.844823] R0: wlan: [655:E :PE ] pe_reset_protection_callback: 191: old state: 0x0000, new state: 0x0000, old_op_mode[0], new_op_mode[0], LimAssocStaLimit[12]
<12>[   50.237813] [MMI_GUI] [GUI-EVT-IN] msg rcvd=32, 1
<6>[   51.884210] R0: wlan: [655:E :PE ] pe_reset_protection_callback: 191: old state: 0x0000, new state: 0x0000, old_op_mode[0], new_op_mode[0], LimAssocStaLimit[12]
<12>[   53.230169] [MMI_GUI] [GUI-EVT-IN] msg rcvd=32, 3
<6>[   55.904135] R0: wlan: [655:E :PE ] pe_reset_protection_callback: 191: old state: 0x0000, new state: 0x0000, old_op_mode[0], new_op_mode[0], LimAssocStaLimit[12]
<12>[   56.225903] [MMI_GUI] [GUI-EVT-IN] msg rcvd=32, 4

dtc -I fs -O dts /proc/device-tree

/dts-v1/;

/ {
	#size-cells = < 0x01 >;
	qcom,msm-id = < 0x122 0x10000 0x128 0x10000 0x129 0x10000 0x12a 0x10000 0x12b 0x10000 >;
	compatible = "qcom,mdm9607-mtp\0qcom,mdm9607\0qcom,mtp";
	#address-cells = < 0x01 >;
	model = "Franklin Technologies, Inc. MDM 9607 R717 P1";
	qcom,board-id = < 0x1a 0x00 >;
	interrupt-parent = < 0x01 >;

	soc {
		#size-cells = < 0x01 >;
		#address-cells = < 0x01 >;
		ranges;

		usb_detect {
			interrupt-names = "vbus_det_irq";
			compatible = "qcom,gpio-usbdetect";
			status = "ok";
			interrupt-parent = < 0x6e >;
			interrupts = < 0x00 0xa1 0x00 >;
		};

		rpm_etm0 {
			coresight-child-list = < 0x0a >;
			coresight-outports = < 0x00 >;
			coresight-nr-inports = < 0x00 >;
			compatible = "qcom,coresight-remote-etm";
			coresight-child-ports = < 0x00 >;
			qcom,inst-id = < 0x04 >;
			coresight-name = "coresight-rpm-etm0";
			coresight-id = < 0x16 >;
		};

		qcom,rpm-rbcpr-stats@0x200000 {
			compatible = "qcom,rpmrbcpr-stats";
			reg = < 0x200000 0x1000 >;
			qcom,start-offset = < 0x90010 >;
		};

		nand@7980000 {
			qcom,msm-bus,vectors-KBps = < 0x5b 0x200 0x00 0x00 0x5b 0x200 0x61a80 0x61a80 >;
			clocks = < 0x09 0x3ce6f7bb >;
			interrupt-names = "bam_irq";
			compatible = "qcom,msm-nand";
			reg = < 0x7980000 0x1000 0x7984000 0x1a000 >;
			clock-names = "core_clk";
			status = "ok";
			qcom,reg-adjustment-offset = < 0x4000 >;
			qcom,msm-bus,num-cases = < 0x02 >;
			interrupts = < 0x00 0x84 0x00 >;
			reg-names = "nand_phys\0bam_phys";
			qcom,msm-bus,name = "qpic_nand";
			qcom,msm-bus,num-paths = < 0x01 >;
		};

		tmc@6026000 {
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			interrupt-names = "byte-cntr-irq";
			coresight-nr-inports = < 0x01 >;
			compatible = "arm,coresight-tmc";
			reg = < 0x6026000 0x1000 0x6084000 0x15000 >;
			clock-names = "core_clk\0core_a_clk";
			phandle = < 0x57 >;
			qcom,sg-enable;
			coresight-ctis = < 0x33 0x34 >;
			linux,phandle = < 0x57 >;
			interrupts = < 0x00 0xa6 0x00 >;
			reg-names = "tmc-base\0bam-base";
			qcom,memory-size = < 0x100000 >;
			coresight-name = "coresight-tmc-etr";
			coresight-id = < 0x00 >;
		};

		qcom,msm-dai-tdm-pri-tx {
			compatible = "qcom,msm-dai-tdm";
			qcom,msm-cpudai-tdm-group-port-id = < 0x9001 >;
			qcom,msm-cpudai-tdm-clk-rate = < 0xbb8000 >;
			qcom,msm-cpudai-tdm-group-id = < 0x9101 >;
			qcom,msm-cpudai-tdm-clk-attribute = [ 00 01 ];
			qcom,msm-cpudai-tdm-group-num-ports = < 0x01 >;

			qcom,msm-dai-q6-tdm-pri-tx-0 {
				qcom,msm-cpudai-tdm-dev-id = < 0x9001 >;
				qcom,msm-cpudai-tdm-sync-mode = < 0x00 >;
				compatible = "qcom,msm-dai-q6-tdm";
				qcom,msm-cpudai-tdm-invert-sync = < 0x00 >;
				qcom,msm-cpudai-tdm-sync-src = < 0x01 >;
				qcom,msm-cpudai-tdm-data-out = < 0x00 >;
				phandle = < 0xa1 >;
				linux,phandle = < 0xa1 >;
				qcom,msm-cpudai-tdm-data-delay = < 0x01 >;
				qcom,msm-cpudai-tdm-data-align = < 0x00 >;
			};
		};

		qcom,smp2pgpio-smp2p-1-in {
			gpio-controller;
			qcom,remote-pid = < 0x01 >;
			compatible = "qcom,smp2pgpio";
			interrupt-controller;
			phandle = < 0x07 >;
			linux,phandle = < 0x07 >;
			#interrupt-cells = < 0x02 >;
			#gpio-cells = < 0x02 >;
			qcom,entry-name = "smp2p";
			qcom,is-inbound;
		};

		qcom,ipc_router_modem_xprt {
			qcom,xprt-version = < 0x01 >;
			compatible = "qcom,ipc_router_smd_xprt";
			qcom,xprt-linkid = < 0x01 >;
			qcom,disable-pil-loading;
			qcom,xprt-remote = "modem";
			qcom,fragmented-data;
			qcom,ch-name = "IPCRTR";
		};

		qcom,msm-pcm {
			qcom,msm-pcm-dsp-id = < 0x00 >;
			compatible = "qcom,msm-pcm-dsp";
			phandle = < 0x85 >;
			linux,phandle = < 0x85 >;
		};

		qcom,cpubw {
			qcom,bw-tbl = < 0x16e 0x2dc 0x393 0x479 0x727 0x8f3 >;
			qcom,src-dst-ports = < 0x01 0x200 >;
			governor = "cpufreq";
			compatible = "qcom,devbw";
			phandle = < 0x61 >;
			linux,phandle = < 0x61 >;
			qcom,active-only;
		};

		qcom,mss@4080000 {
			qcom,ssctl-instance-id = < 0x12 >;
			vdd_cx-voltage = < 0x180 >;
			vdd_mx-supply = < 0xc2 >;
			clocks = < 0x09 0xe97a8354 0x09 0x111cde81 0x09 0x67544d62 0x09 0xde2adeb1 >;
			qcom,override-acc-1 = < 0x80800000 >;
			qcom,gpio-force-stop = < 0xc5 0x00 0x00 >;
			qcom,gpio-err-ready = < 0xc4 0x01 0x00 >;
			compatible = "qcom,pil-q6v55-mss";
			qcom,gpio-shutdown-ack = < 0xc4 0x07 0x00 >;
			qcom,gpio-err-fatal = < 0xc4 0x00 0x00 >;
			vdd_mx-uV = < 0x180 >;
			qcom,qdsp6v56-1-8-inrush-current;
			reg = < 0x4080000 0x100 0x194f000 0x10 0x1950000 0x08 0x1951000 0x08 0x4020000 0x40 0x183e000 0x04 >;
			clock-names = "xo\0iface_clk\0bus_clk\0mem_clk";
			memory-region = < 0xc6 >;
			qcom,sysmon-id = < 0x00 >;
			qcom,firmware-name = "modem";
			vdd_cx-supply = < 0x5e >;
			qcom,gpio-stop-ack = < 0xc4 0x03 0x00 >;
			qcom,proxy-clock-names = "xo";
			qcom,active-clock-names = "iface_clk\0bus_clk\0mem_clk";
			interrupts = < 0x00 0x18 0x01 >;
			qcom,pil-self-auth;
			qcom,gpio-proxy-unvote = < 0xc4 0x02 0x00 >;
			vdd_pll-supply = < 0xc3 >;
			reg-names = "qdsp6_base\0halt_q6\0halt_modem\0halt_nc\0rmb_base\0restart_reg";
			qcom,vdd_pll = < 0x1b7740 >;
		};

		qcom,msm-dai-mi2s {
			compatible = "qcom,msm-dai-mi2s";

			qcom,msm-dai-q6-mi2s-sec {
				qcom,msm-mi2s-rx-lines = < 0x02 >;
				compatible = "qcom,msm-dai-q6-mi2s";
				phandle = < 0x93 >;
				qcom,msm-dai-q6-mi2s-dev-id = < 0x01 >;
				linux,phandle = < 0x93 >;
				qcom,msm-mi2s-tx-lines = < 0x01 >;
			};

			qcom,msm-dai-q6-mi2s-prim {
				qcom,msm-mi2s-rx-lines = < 0x02 >;
				compatible = "qcom,msm-dai-q6-mi2s";
				phandle = < 0x92 >;
				qcom,msm-dai-q6-mi2s-dev-id = < 0x00 >;
				linux,phandle = < 0x92 >;
				qcom,msm-mi2s-tx-lines = < 0x01 >;
			};
		};

		pinctrl@1000000 {
			qcom,tlmm-emmc-boot-select = < 0x01 >;
			gpio-controller;
			compatible = "qcom,mdm9607-pinctrl";
			interrupt-controller;
			reg = < 0x1000000 0x300000 >;
			phandle = < 0x5c >;
			linux,phandle = < 0x5c >;
			#interrupt-cells = < 0x02 >;
			interrupts = < 0x00 0xd0 0x00 >;
			#gpio-cells = < 0x02 >;

			mdss_ad_sleep {
				phandle = < 0xfa >;
				linux,phandle = < 0xfa >;

				config {
					pins = "gpio22";
					drive-strength = < 0x02 >;
					bias-disable;
				};

				mux {
					pins = "gpio22";
					function = "ebi2_a_d_8_b";
				};
			};

			pmx_qdsd_data0 {

				data0_sdcard {
					phandle = < 0x37 >;
					linux,phandle = < 0x37 >;

					config {
						pins = "qdsd_data0";
						bias-pull-down;
						drive-strength = < 0x08 >;
					};
				};

				data0_spmi {
					phandle = < 0x53 >;
					linux,phandle = < 0x53 >;

					config {
						pins = "qdsd_data0";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};

				data0_swdtrc {
					phandle = < 0x48 >;
					linux,phandle = < 0x48 >;

					config {
						pins = "qdsd_data0";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};

				data0_jtag {
					phandle = < 0x4d >;
					linux,phandle = < 0x4d >;

					config {
						pins = "qdsd_data0";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};
				};

				data0_trace {
					phandle = < 0x3d >;
					linux,phandle = < 0x3d >;

					config {
						pins = "qdsd_data0";
						bias-pull-down;
						drive-strength = < 0x08 >;
					};
				};

				data0_uart {
					phandle = < 0x42 >;
					linux,phandle = < 0x42 >;

					config {
						pins = "qdsd_data0";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};
			};

			ppsgrp {
				phandle = < 0xd9 >;
				linux,phandle = < 0xd9 >;

				config {
					pins = "gpio53";
					bias-pull-down;
				};

				mux {
					pins = "gpio53";
					function = "nav_tsync_out_a";
				};
			};

			keys {

				gpio_key1_sleep {
					phandle = < 0xef >;
					linux,phandle = < 0xef >;

					config {
						pins = "gpio21";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio21";
						function = "gpio";
					};
				};

				gpio_key0 {
					phandle = < 0xec >;
					linux,phandle = < 0xec >;

					config {
						pins = "gpio26";
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio26";
						function = "gpio";
					};
				};

				gpio_key0_sleep {
					phandle = < 0xee >;
					linux,phandle = < 0xee >;

					config {
						pins = "gpio26";
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio26";
						function = "gpio";
					};
				};

				gpio_key1 {
					phandle = < 0xed >;
					linux,phandle = < 0xed >;

					config {
						pins = "gpio21";
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio21";
						function = "gpio";
					};
				};
			};

			mdss_cs_sleep {
				phandle = < 0xf7 >;
				linux,phandle = < 0xf7 >;

				config {
					pins = "gpio23";
					drive-strength = < 0x02 >;
					bias-disable;
				};

				mux {
					pins = "gpio23";
					function = "ebi2_lcd_cs_n_b";
				};
			};

			leds {

				gpio_leds {
					phandle = < 0xeb >;
					linux,phandle = < 0xeb >;

					config {
						pins = "gpio18";
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio18";
						function = "gpio";
					};
				};
			};

			can_reset {

				rst_off {
					phandle = < 0xc1 >;
					linux,phandle = < 0xc1 >;

					config {
						pins = "gpio11";
						output-high;
						bias-pull-up;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio11";
						function = "gpio";
					};
				};

				rst_on {
					phandle = < 0xc0 >;
					linux,phandle = < 0xc0 >;

					config {
						pins = "gpio11";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio11";
						function = "gpio";
					};
				};
			};

			mdss_ldo_active {
				phandle = < 0xf0 >;
				linux,phandle = < 0xf0 >;

				config {
					pins = "gpio10";
					output-high;
					drive-strength = < 0x0a >;
					bias-disable;
				};

				mux {
					pins = "gpio10";
					function = "gpio";
				};
			};

			uart_console_sleep {
				phandle = < 0x62 >;
				linux,phandle = < 0x62 >;

				config {
					pins = "gpio8\0gpio9";
					bias-pull-down;
					drive-strength = < 0x02 >;
				};

				mux {
					pins = "gpio8\0gpio9";
					function = "blsp_uart5";
				};
			};

			pmx_sec_mi2s_aux_din {

				sec_din_active {
					phandle = < 0xb2 >;
					linux,phandle = < 0xb2 >;

					config {
						pins = "gpio76";
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio76";
						function = "sec_mi2s";
					};
				};

				sec_din_sleep {
					phandle = < 0xb6 >;
					linux,phandle = < 0xb6 >;

					config {
						pins = "gpio76";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio76";
						function = "sec_mi2s";
					};
				};
			};

			pmx_qdsd_data2 {

				data2_sdcard {
					phandle = < 0x39 >;
					linux,phandle = < 0x39 >;

					config {
						pins = "qdsd_data2";
						bias-pull-down;
						drive-strength = < 0x08 >;
					};
				};

				data2_jtag {
					phandle = < 0x4f >;
					linux,phandle = < 0x4f >;

					config {
						pins = "qdsd_data2";
						bias-pull-up;
						drive-strength = < 0x08 >;
					};
				};

				data2_uart {
					phandle = < 0x44 >;
					linux,phandle = < 0x44 >;

					config {
						pins = "qdsd_data2";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};

				data2_trace {
					phandle = < 0x3f >;
					linux,phandle = < 0x3f >;

					config {
						pins = "qdsd_data2";
						bias-pull-down;
						drive-strength = < 0x08 >;
					};
				};

				data2_swdtrc {
					phandle = < 0x4a >;
					linux,phandle = < 0x4a >;

					config {
						pins = "qdsd_data2";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};
			};

			pmx_sdc2_cmd {

				sdc2_cmd_on {
					phandle = < 0xc9 >;
					linux,phandle = < 0xc9 >;

					config {
						pins = "sdc2_cmd";
						bias-pull-up;
						drive-strength = < 0x0a >;
					};
				};

				sdc2_cmd_off {
					phandle = < 0xcd >;
					linux,phandle = < 0xcd >;

					config {
						pins = "sdc2_cmd";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};
				};
			};

			pmx_qdsd_data1 {

				data1_sdcard {
					phandle = < 0x38 >;
					linux,phandle = < 0x38 >;

					config {
						pins = "qdsd_data1";
						bias-pull-down;
						drive-strength = < 0x08 >;
					};
				};

				data1_trace {
					phandle = < 0x3e >;
					linux,phandle = < 0x3e >;

					config {
						pins = "qdsd_data1";
						bias-pull-down;
						drive-strength = < 0x08 >;
					};
				};

				data1_uart {
					phandle = < 0x43 >;
					linux,phandle = < 0x43 >;

					config {
						pins = "qdsd_data1";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};

				data1_swdtrc {
					phandle = < 0x49 >;
					linux,phandle = < 0x49 >;

					config {
						pins = "qdsd_data1";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};

				data1_jtag {
					phandle = < 0x4e >;
					linux,phandle = < 0x4e >;

					config {
						pins = "qdsd_data1";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};
			};

			blsp1_uart3_sleep {
				phandle = < 0x72 >;
				linux,phandle = < 0x72 >;

				config {
					pins = "gpio0\0gpio1\0gpio2\0gpio3";
					drive-strength = < 0x02 >;
					bias-disable;
				};

				mux {
					pins = "gpio0\0gpio1\0gpio2\0gpio3";
					function = "gpio";
				};
			};

			blsp1_uart3_active {
				phandle = < 0x73 >;
				linux,phandle = < 0x73 >;

				config {
					pins = "gpio0\0gpio1\0gpio2\0gpio3";
					drive-strength = < 0x02 >;
					bias-disable;
				};

				mux {
					pins = "gpio0\0gpio1\0gpio2\0gpio3";
					function = "blsp_uart3";
				};
			};

			pmx_pri_mi2s_aux_din {

				pri_din_sleep {
					phandle = < 0xac >;
					linux,phandle = < 0xac >;

					config {
						pins = "gpio21";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio21";
						function = "pri_mi2s_data0_a";
					};
				};

				pri_din_active {
					phandle = < 0xa8 >;
					linux,phandle = < 0xa8 >;

					config {
						pins = "gpio21";
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio21";
						function = "pri_mi2s_data0_a";
					};
				};
			};

			pmx_sec_mi2s_aux {

				sec_ws_active_slave {
					phandle = < 0xb7 >;
					linux,phandle = < 0xb7 >;

					config {
						pins = "gpio79";
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio79";
						function = "sec_mi2s";
					};
				};

				sec_ws_sleep {
					phandle = < 0xb3 >;
					linux,phandle = < 0xb3 >;

					config {
						pins = "gpio79";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio79";
						function = "sec_mi2s";
					};
				};

				sec_sck_active_slave {
					phandle = < 0xb8 >;
					linux,phandle = < 0xb8 >;

					config {
						pins = "gpio78";
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio78";
						function = "sec_mi2s";
					};
				};

				sec_dout_sleep {
					phandle = < 0xb5 >;
					linux,phandle = < 0xb5 >;

					config {
						pins = "gpio77";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio77";
						function = "sec_mi2s";
					};
				};

				sec_sck_active_master {
					phandle = < 0xb0 >;
					linux,phandle = < 0xb0 >;

					config {
						pins = "gpio78";
						output-high;
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio78";
						function = "sec_mi2s";
					};
				};

				sec_dout_active {
					phandle = < 0xb1 >;
					linux,phandle = < 0xb1 >;

					config {
						pins = "gpio77";
						output-high;
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio77";
						function = "sec_mi2s";
					};
				};

				sec_ws_active_master {
					phandle = < 0xaf >;
					linux,phandle = < 0xaf >;

					config {
						pins = "gpio79";
						output-high;
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio79";
						function = "sec_mi2s";
					};
				};

				sec_sck_sleep {
					phandle = < 0xb4 >;
					linux,phandle = < 0xb4 >;

					config {
						pins = "gpio78";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio78";
						function = "sec_mi2s";
					};
				};
			};

			ntn_rst_gpio_default {
				phandle = < 0xde >;
				linux,phandle = < 0xde >;

				config {
					pins = "gpio30";
					output-high;
					bias-pull-up;
					drive-strength = < 0x10 >;
				};

				mux {
					pins = "gpio30";
					function = "gpio";
				};
			};

			lcd_ld7032 {

				lcd_a0_sleep {
					phandle = < 0xe8 >;
					linux,phandle = < 0xe8 >;

					config {
						pins = "gpio24";
						output-low;
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio24";
						function = "gpio";
					};
				};

				lcd_pmoled_sleep {
					phandle = < 0xe6 >;
					linux,phandle = < 0xe6 >;

					config {
						pins = "gpio19";
						output-low;
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio19";
						function = "gpio";
					};
				};

				lcd_reset_active {
					phandle = < 0xe9 >;
					linux,phandle = < 0xe9 >;

					config {
						pins = "gpio25";
						output-high;
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio25";
						function = "gpio";
					};
				};

				lcd_pmoled_active {
					phandle = < 0xe5 >;
					linux,phandle = < 0xe5 >;

					config {
						pins = "gpio19";
						output-high;
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio19";
						function = "gpio";
					};
				};

				lcd_reset_sleep {
					phandle = < 0xea >;
					linux,phandle = < 0xea >;

					config {
						pins = "gpio25";
						output-low;
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio25";
						function = "gpio";
					};
				};

				lcd_a0_active {
					phandle = < 0xe7 >;
					linux,phandle = < 0xe7 >;

					config {
						pins = "gpio24";
						output-high;
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio24";
						function = "gpio";
					};
				};
			};

			sdhc2_cd_pin {

				cd_off {

					config {
						pins = "gpio26";
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio26";
						function = "gpio";
					};
				};

				cd_on {
					phandle = < 0xcb >;
					linux,phandle = < 0xcb >;

					config {
						pins = "gpio26";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio26";
						function = "gpio";
					};
				};
			};

			i2c_5 {

				i2c_5_active {
					phandle = < 0xdf >;
					linux,phandle = < 0xdf >;

					config {
						pins = "gpio10\0gpio11";
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio10\0gpio11";
						function = "blsp_i2c5";
					};
				};

				i2c_5_sleep {
					phandle = < 0xe0 >;
					linux,phandle = < 0xe0 >;

					config {
						pins = "gpio10\0gpio11";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio10\0gpio11";
						function = "gpio";
					};
				};
			};

			mdss_cs_active {
				phandle = < 0xf1 >;
				linux,phandle = < 0xf1 >;

				config {
					pins = "gpio23";
					drive-strength = < 0x0a >;
					bias-disable;
				};

				mux {
					pins = "gpio23";
					function = "ebi2_lcd_cs_n_b";
				};
			};

			mdss_bl_sleep {
				phandle = < 0xfb >;
				linux,phandle = < 0xfb >;

				config {
					pins = "gpio21";
					drive-strength = < 0x02 >;
					bias-disable;
				};

				mux {
					pins = "gpio21";
					function = "gpio";
				};
			};

			sdc1_wlan_gpio {

				sdc1_wlan_gpio_sleep {
					phandle = < 0x80 >;
					linux,phandle = < 0x80 >;

					config {
						pins = "gpio38";
						output-low;
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio38";
						function = "gpio";
					};
				};

				sdc1_wlan_gpio_active {
					phandle = < 0x7c >;
					linux,phandle = < 0x7c >;

					config {
						pins = "gpio38";
						output-high;
						bias-pull-up;
						drive-strength = < 0x08 >;
					};

					mux {
						pins = "gpio38";
						function = "gpio";
					};
				};
			};

			pmx_sdc1_clk {

				pmx_sdc1_clk_off {
					phandle = < 0x7d >;
					linux,phandle = < 0x7d >;

					config {
						pins = "sdc1_clk";
						drive-strength = < 0x02 >;
						bias-disable;
					};
				};

				pmx_sdc1_clk_on {
					phandle = < 0x79 >;
					linux,phandle = < 0x79 >;

					config {
						pins = "sdc1_clk";
						drive-strength = < 0x10 >;
						bias-disable;
					};
				};
			};

			mdss_ldo_sleep {
				phandle = < 0xf6 >;
				linux,phandle = < 0xf6 >;

				config {
					pins = "gpio10";
					output-low;
					drive-strength = < 0x02 >;
					bias-disable;
				};

				mux {
					pins = "gpio10";
					function = "gpio";
				};
			};

			pmx_pri_mi2s_aux {

				pri_ws_active_master {
					phandle = < 0xa5 >;
					linux,phandle = < 0xa5 >;

					config {
						pins = "gpio20";
						output-high;
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio20";
						function = "pri_mi2s_ws_a";
					};
				};

				pri_ws_sleep {
					phandle = < 0xa9 >;
					linux,phandle = < 0xa9 >;

					config {
						pins = "gpio20";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio20";
						function = "pri_mi2s_ws_a";
					};
				};

				pri_sck_sleep {
					phandle = < 0xaa >;
					linux,phandle = < 0xaa >;

					config {
						pins = "gpio23";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio23";
						function = "pri_mi2s_sck_a";
					};
				};

				pri_sck_active_slave {
					phandle = < 0xae >;
					linux,phandle = < 0xae >;

					config {
						pins = "gpio23";
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio23";
						function = "pri_mi2s_sck_a";
					};
				};

				pri_dout_sleep {
					phandle = < 0xab >;
					linux,phandle = < 0xab >;

					config {
						pins = "gpio22";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio22";
						function = "pri_mi2s_data1_a";
					};
				};

				pri_dout_active {
					phandle = < 0xa7 >;
					linux,phandle = < 0xa7 >;

					config {
						pins = "gpio22";
						output-high;
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio22";
						function = "pri_mi2s_data1_a";
					};
				};

				pri_ws_active_slave {
					phandle = < 0xad >;
					linux,phandle = < 0xad >;

					config {
						pins = "gpio20";
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio20";
						function = "pri_mi2s_ws_a";
					};
				};

				pri_sck_active_master {
					phandle = < 0xa6 >;
					linux,phandle = < 0xa6 >;

					config {
						pins = "gpio23";
						output-high;
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio23";
						function = "pri_mi2s_sck_a";
					};
				};
			};

			mdss_te_sleep {
				phandle = < 0xf8 >;
				linux,phandle = < 0xf8 >;

				config {
					pins = "gpio20";
					drive-strength = < 0x02 >;
					bias-disable;
				};

				mux {
					pins = "gpio20";
					function = "ebi2_lcd_te_b";
				};
			};

			mdss_bl_active {
				phandle = < 0xf5 >;
				linux,phandle = < 0xf5 >;

				config {
					pins = "gpio21";
					output-high;
					drive-strength = < 0x0a >;
					bias-disable;
				};

				mux {
					pins = "gpio21";
					function = "gpio";
				};
			};

			codec_reset {

				codec_reset_active {
					phandle = < 0x66 >;
					linux,phandle = < 0x66 >;

					config {
						pins = "gpio26";
						output-high;
						drive-strength = < 0x08 >;
						bias-disable;
					};

					mux {
						pins = "gpio26";
						function = "gpio";
					};
				};

				codec_reset_sleep {
					phandle = < 0x67 >;
					linux,phandle = < 0x67 >;

					config {
						pins = "gpio26";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio26";
						function = "gpio";
					};
				};
			};

			spi5 {

				cs0_active {
					phandle = < 0xe2 >;
					linux,phandle = < 0xe2 >;

					config {
						pins = "gpio22";
						drive-strength = < 0x02 >;
						bias-disable = < 0x00 >;
					};

					mux {
						pins = "gpio22";
						function = "blsp_spi6";
					};
				};

				spi5_sleep {
					phandle = < 0xe3 >;
					linux,phandle = < 0xe3 >;

					config {
						pins = "gpio20\0gpio23";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio20\0gpio23";
						function = "gpio";
					};
				};

				cs0_sleep {
					phandle = < 0xe4 >;
					linux,phandle = < 0xe4 >;

					config {
						pins = "gpio22";
						drive-strength = < 0x02 >;
						bias-disable = < 0x00 >;
					};

					mux {
						pins = "gpio22";
						function = "gpio";
					};
				};

				spi5_default {
					phandle = < 0xe1 >;
					linux,phandle = < 0xe1 >;

					config {
						pins = "gpio20\0gpio23";
						drive-strength = < 0x0c >;
						bias-disable = < 0x00 >;
					};

					mux {
						pins = "gpio20\0gpio23";
						function = "blsp_spi6";
					};
				};
			};

			pmx_sdc1_data {

				pmx_sdc1_data_on {
					phandle = < 0x7b >;
					linux,phandle = < 0x7b >;

					config {
						pins = "sdc1_data";
						bias-pull-up;
						drive-strength = < 0x0a >;
					};
				};

				pmx_sdc1_data_off {
					phandle = < 0x7f >;
					linux,phandle = < 0x7f >;

					config {
						pins = "sdc1_data";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};
				};
			};

			pmx_qdsd_data3 {

				data3_sdcard {
					phandle = < 0x3a >;
					linux,phandle = < 0x3a >;

					config {
						pins = "qdsd_data3";
						bias-pull-down;
						drive-strength = < 0x08 >;
					};
				};

				data3_trace {
					phandle = < 0x40 >;
					linux,phandle = < 0x40 >;

					config {
						pins = "qdsd_data3";
						bias-pull-down;
						drive-strength = < 0x08 >;
					};
				};

				data3_jtag {
					phandle = < 0x50 >;
					linux,phandle = < 0x50 >;

					config {
						pins = "qdsd_data3";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};
				};

				data3_spmi {
					phandle = < 0x54 >;
					linux,phandle = < 0x54 >;

					config {
						pins = "qdsd_data3";
						bias-pull-down;
						drive-strength = < 0x08 >;
					};
				};

				data3_swdtrc {
					phandle = < 0x4b >;
					linux,phandle = < 0x4b >;

					config {
						pins = "qdsd_data3";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};
				};

				data3_uart {
					phandle = < 0x45 >;
					linux,phandle = < 0x45 >;

					config {
						pins = "qdsd_data3";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};
				};
			};

			spi1 {

				cs0_active {
					phandle = < 0xbd >;
					linux,phandle = < 0xbd >;

					config {
						pins = "gpio6";
						drive-strength = < 0x02 >;
						bias-disable = < 0x00 >;
					};

					mux {
						pins = "gpio6";
						function = "blsp_spi2";
					};
				};

				spi1_default {
					phandle = < 0xbc >;
					linux,phandle = < 0xbc >;

					config {
						pins = "gpio4\0gpio5\0gpio7";
						drive-strength = < 0x0c >;
						bias-disable = < 0x00 >;
					};

					mux {
						pins = "gpio4\0gpio5\0gpio7";
						function = "blsp_spi2";
					};
				};

				spi1_sleep {
					phandle = < 0xbe >;
					linux,phandle = < 0xbe >;

					config {
						pins = "gpio4\0gpio5\0gpio7";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio4\0gpio5\0gpio7";
						function = "gpio";
					};
				};

				cs0_sleep {
					phandle = < 0xbf >;
					linux,phandle = < 0xbf >;

					config {
						pins = "gpio6";
						drive-strength = < 0x02 >;
						bias-disable = < 0x00 >;
					};

					mux {
						pins = "gpio6";
						function = "gpio";
					};
				};
			};

			pmx_qdsd_cmd {

				cmd_uart {
					phandle = < 0x41 >;
					linux,phandle = < 0x41 >;

					config {
						pins = "qdsd_cmd";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};
				};

				cmd_sdcard {
					phandle = < 0x36 >;
					linux,phandle = < 0x36 >;

					config {
						pins = "qdsd_cmd";
						bias-pull-down;
						drive-strength = < 0x08 >;
					};
				};

				cmd_spmi {
					phandle = < 0x52 >;
					linux,phandle = < 0x52 >;

					config {
						pins = "qdsd_cmd";
						bias-pull-down;
						drive-strength = < 0x0a >;
					};
				};

				cmd_jtag {
					phandle = < 0x4c >;
					linux,phandle = < 0x4c >;

					config {
						pins = "qdsd_cmd";
						drive-strength = < 0x08 >;
						bias-disable;
					};
				};

				cmd_swdtrc {
					phandle = < 0x47 >;
					linux,phandle = < 0x47 >;

					config {
						pins = "qdsd_cmd";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};
				};

				cmd_trace {
					phandle = < 0x3c >;
					linux,phandle = < 0x3c >;

					config {
						pins = "qdsd_cmd";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};
			};

			pmx_sdc2_data {

				sdc2_data_off {
					phandle = < 0xce >;
					linux,phandle = < 0xce >;

					config {
						pins = "sdc2_data";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};
				};

				sdc2_data_on {
					phandle = < 0xca >;
					linux,phandle = < 0xca >;

					config {
						pins = "sdc2_data";
						bias-pull-up;
						drive-strength = < 0x0a >;
					};
				};
			};

			emac0 {

				emac0_mdio_active {
					phandle = < 0xd5 >;
					linux,phandle = < 0xd5 >;

					config {
						pins = "gpio27\0gpio28";
						bias-pull-up;
						drive-strength = < 0x10 >;
					};

					mux {
						pins = "gpio27\0gpio28";
						function = "gmac_mdio";
					};
				};

				emac0_ephy_sleep {
					phandle = < 0xd8 >;
					linux,phandle = < 0xd8 >;

					config {
						pins = "gpio29";
						output-low;
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio29";
						function = "gpio";
					};
				};

				emac0_ephy_active {
					phandle = < 0xd7 >;
					linux,phandle = < 0xd7 >;

					config {
						pins = "gpio29";
						output-high;
						bias-pull-up;
						drive-strength = < 0x10 >;
					};

					mux {
						pins = "gpio29";
						function = "gpio";
					};
				};

				emac0_mdio_sleep {
					phandle = < 0xd6 >;
					linux,phandle = < 0xd6 >;

					config {
						pins = "gpio27\0gpio28";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio27\0gpio28";
						function = "gpio";
					};
				};
			};

			pmx_qdsd_clk {

				clk_spmi {
					phandle = < 0x51 >;
					linux,phandle = < 0x51 >;

					config {
						pins = "qdsd_clk";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};

				clk_swdtrc {
					phandle = < 0x46 >;
					linux,phandle = < 0x46 >;

					config {
						pins = "qdsd_clk";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};

				clk_sdcard {
					phandle = < 0x35 >;
					linux,phandle = < 0x35 >;

					config {
						pins = "qdsd_clk";
						drive-strength = < 0x10 >;
						bias-disable;
					};
				};

				clk_trace {
					phandle = < 0x3b >;
					linux,phandle = < 0x3b >;

					config {
						pins = "qdsd_clk";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};
				};
			};

			pmx_sdc1_cmd {

				pmx_sdc1_cmd_on {
					phandle = < 0x7a >;
					linux,phandle = < 0x7a >;

					config {
						pins = "sdc1_cmd";
						bias-pull-up;
						drive-strength = < 0x0a >;
					};
				};

				pmx_sdc1_cmd_off {
					phandle = < 0x7e >;
					linux,phandle = < 0x7e >;

					config {
						pins = "sdc1_cmd";
						bias-pull-up;
						drive-strength = < 0x02 >;
					};
				};
			};

			mdss_rs_active {
				phandle = < 0xf3 >;
				linux,phandle = < 0xf3 >;

				config {
					pins = "gpio74";
					drive-strength = < 0x0a >;
					bias-disable;
				};

				mux {
					pins = "gpio74";
					function = "ebi2_lcd";
				};
			};

			bmi160_int1_default {
				phandle = < 0x6c >;
				linux,phandle = < 0x6c >;

				config {
					pins = "gpio78";
					bias-pull-down;
					drive-strength = < 0x10 >;
				};

				mux {
					pins = "gpio78";
					function = "gpio";
				};
			};

			mdss_rs_sleep {
				phandle = < 0xf9 >;
				linux,phandle = < 0xf9 >;

				config {
					pins = "gpio74";
					drive-strength = < 0x02 >;
					bias-disable;
				};

				mux {
					pins = "gpio74";
					function = "ebi2_lcd";
				};
			};

			pmx_sdc2_clk {

				sdc2_clk_on {
					phandle = < 0xc8 >;
					linux,phandle = < 0xc8 >;

					config {
						pins = "sdc2_clk";
						drive-strength = < 0x10 >;
						bias-disable;
					};
				};

				sdc2_clk_off {
					phandle = < 0xcc >;
					linux,phandle = < 0xcc >;

					config {
						pins = "sdc2_clk";
						drive-strength = < 0x02 >;
						bias-disable;
					};
				};
			};

			bmi160_int2_default {
				phandle = < 0x6d >;
				linux,phandle = < 0x6d >;

				config {
					pins = "gpio79";
					bias-pull-down;
					drive-strength = < 0x10 >;
				};

				mux {
					pins = "gpio79";
					function = "gpio";
				};
			};

			mdss_ad_active {
				phandle = < 0xf4 >;
				linux,phandle = < 0xf4 >;

				config {
					pins = "gpio22";
					drive-strength = < 0x0a >;
					bias-disable;
				};

				mux {
					pins = "gpio22";
					function = "ebi2_a_d_8_b";
				};
			};

			i2c_4 {

				i2c_4_sleep {
					phandle = < 0x64 >;
					linux,phandle = < 0x64 >;

					config {
						pins = "gpio18\0gpio19";
						bias-pull-down;
						drive-strength = < 0x02 >;
					};

					mux {
						pins = "gpio18\0gpio19";
						function = "gpio";
					};
				};

				i2c_4_active {
					phandle = < 0x63 >;
					linux,phandle = < 0x63 >;

					config {
						pins = "gpio18\0gpio19";
						drive-strength = < 0x02 >;
						bias-disable;
					};

					mux {
						pins = "gpio18\0gpio19";
						function = "blsp_i2c4";
					};
				};
			};

			mdss_te_active {
				phandle = < 0xf2 >;
				linux,phandle = < 0xf2 >;

				config {
					pins = "gpio20";
					drive-strength = < 0x0a >;
					bias-disable;
				};

				mux {
					pins = "gpio20";
					function = "ebi2_lcd_te_b";
				};
			};
		};

		qcom,gcc@1800000 {
			compatible = "qcom,gcc-mdm9607";
			reg = < 0x1800000 0x80000 0xb008000 0x50 >;
			phandle = < 0x09 >;
			linux,phandle = < 0x09 >;
			vdd_stromer_dig-supply = < 0x5f >;
			vdd_dig-supply = < 0x5e >;
			#clock-cells = < 0x01 >;
			reg-names = "cc_base\0apcs_base";
		};

		qcom,msm-dai-q6 {
			compatible = "qcom,msm-dai-q6";

			qcom,msm-dai-q6-afe-proxy-tx {
				compatible = "qcom,msm-dai-q6-dev";
				phandle = < 0x9c >;
				linux,phandle = < 0x9c >;
				qcom,msm-dai-q6-dev-id = < 0xf0 >;
			};

			qcom,msm-dai-q6-incall-music-rx {
				compatible = "qcom,msm-dai-q6-dev";
				phandle = < 0x9f >;
				linux,phandle = < 0x9f >;
				qcom,msm-dai-q6-dev-id = < 0x8005 >;
			};

			qcom,msm-dai-q6-be-afe-pcm-rx {
				compatible = "qcom,msm-dai-q6-dev";
				phandle = < 0x99 >;
				linux,phandle = < 0x99 >;
				qcom,msm-dai-q6-dev-id = < 0xe0 >;
			};

			qcom,msm-dai-q6-incall-record-rx {
				compatible = "qcom,msm-dai-q6-dev";
				phandle = < 0x9d >;
				linux,phandle = < 0x9d >;
				qcom,msm-dai-q6-dev-id = < 0x8003 >;
			};

			qcom,msm-dai-q6-be-afe-pcm-tx {
				compatible = "qcom,msm-dai-q6-dev";
				phandle = < 0x9a >;
				linux,phandle = < 0x9a >;
				qcom,msm-dai-q6-dev-id = < 0xe1 >;
			};

			qcom,msm-dai-q6-afe-proxy-rx {
				compatible = "qcom,msm-dai-q6-dev";
				phandle = < 0x9b >;
				linux,phandle = < 0x9b >;
				qcom,msm-dai-q6-dev-id = < 0xf1 >;
			};

			qcom,msm-dai-q6-incall-record-tx {
				compatible = "qcom,msm-dai-q6-dev";
				phandle = < 0x9e >;
				linux,phandle = < 0x9e >;
				qcom,msm-dai-q6-dev-id = < 0x8004 >;
			};
		};

		qcom,smp2pgpio-smp2p-15-in {
			gpio-controller;
			qcom,remote-pid = < 0x0f >;
			compatible = "qcom,smp2pgpio";
			interrupt-controller;
			phandle = < 0x05 >;
			linux,phandle = < 0x05 >;
			#interrupt-cells = < 0x02 >;
			#gpio-cells = < 0x02 >;
			qcom,entry-name = "smp2p";
			qcom,is-inbound;
		};

		qcom,msm-pcm-voice {
			compatible = "qcom,msm-pcm-voice";
			phandle = < 0x88 >;
			qcom,destroy-cvd;
			linux,phandle = < 0x88 >;
		};

		qcom,spm@b009000 {
			#size-cells = < 0x01 >;
			qcom,saw2-ver-reg = < 0xfd0 >;
			compatible = "qcom,spm-v2";
			reg = < 0xb009000 0x1000 >;
			qcom,cpu = < 0x5b >;
			#address-cells = < 0x01 >;
			qcom,saw2-spm-ctl = < 0x0e >;
			qcom,name = "cpu0";
			qcom,saw2-cfg = < 0x01 >;
			qcom,saw2-spm-dly = < 0x3c102800 >;

			qcom,mode2 {
				qcom,spm_en;
				qcom,pc_mode;
				qcom,slp_cmd_mode;
				qcom,label = "qcom,saw2-spm-cmd-pc";
				qcom,sequence = [ 1f 34 04 44 14 24 54 03 54 44 14 04 04 24 04 34 0f ];
			};

			qcom,mode1 {
				qcom,spm_en;
				qcom,pc_mode;
				qcom,label = "qcom,saw2-spm-cmd-spc";
				qcom,sequence = [ 1f 34 04 44 24 54 03 54 44 04 24 34 0f ];
			};

			qcom,mode0 {
				qcom,spm_en;
				qcom,label = "qcom,saw2-spm-cmd-wfi";
				qcom,sequence = < 0x403040f >;
			};
		};

		cti@6014000 {
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			coresight-nr-inports = < 0x00 >;
			compatible = "arm,coresight-cti";
			reg = < 0x6014000 0x1000 >;
			clock-names = "core_clk\0core_a_clk";
			reg-names = "cti-base";
			coresight-name = "coresight-cti4";
			coresight-id = < 0x0a >;
		};

		qcom,smp2pgpio_test_smp2p_1_in {
			gpios = < 0x07 0x00 0x00 >;
			compatible = "qcom,smp2pgpio_test_smp2p_1_in";
		};

		usb@78d9000 {
			qcom,msm-bus,vectors-KBps = < 0x57 0x200 0x00 0x00 0x57 0x200 0x13880 0x00 0x57 0x200 0x1770 0x1770 >;
			#size-cells = < 0x01 >;
			qcom,usbid-gpio = < 0x6f 0x01 0x00 >;
			qcom,hsusb-otg-phy-init-seq = < 0x44 0x80 0x38 0x81 0x24 0x82 0x13 0x83 0xffffffff >;
			hsusb_vdd_dig-supply = < 0x6b >;
			vbus_otg-supply = < 0x77 >;
			clocks = < 0x09 0x72ce8032 0x09 0xa11972e5 0x09 0x6caa736f 0x09 0xea410834 0x09 0x11d6a74e 0x09 0x996884d5 0x09 0x47179d 0x09 0xe13808fd 0x09 0x79bca5cc >;
			qcom,boost-sysclk-with-streaming;
			qcom,vdd-voltage-level = < 0x00 0x12b128 0x12b128 >;
			qcom,enable-phy-id-pullup;
			interrupt-names = "core_irq\0async_irq";
			qcom,hsusb-log2-itc = < 0x04 >;
			qcom,hsusb-otg-delay-lpm;
			HSUSB_3p3-supply = < 0x76 >;
			compatible = "qcom,hsusb-otg";
			HSUSB_1p8-supply = < 0x75 >;
			qcom,hsusb-otg-mpm-dpsehv-int = < 0x31 >;
			qcom,axi-prefetch-enable;
			reg = < 0x78d9000 0x400 0x6c000 0x200 >;
			qcom,hsusb-otg-mode = < 0x01 >;
			clock-names = "iface_clk\0core_clk\0sleep_clk\0bimc_clk\0pcnoc_clk\0phy_reset_clk\0phy_por_clk\0phy_csr_clk\0xo";
			#address-cells = < 0x01 >;
			qcom,hsusb-otg-phy-type = < 0x03 >;
			qcom,hsusb-otg-mpm-dmsehv-int = < 0x3a >;
			qcom,max-svs-sysclk-rate = < 0x4247c60 >;
			qcom,phy-dvdd-always-on;
			ranges;
			qcom,max-nominal-sysclk-rate = < 0x7f27450 >;
			qcom,hsusb-otg-lpm-on-dev-suspend;
			qcom,dp-manual-pullup;
			qcom,hsusb-otg-otg-control = < 0x02 >;
			qcom,msm-bus,num-cases = < 0x03 >;
			interrupts = < 0x00 0x86 0x00 0x00 0x8c 0x00 >;
			qcom,default-mode-svs;
			reg-names = "core\0phy_csr";
			qcom,bus-clk-rate = < 0xe4e1c00 0x00 0x5f5e100 0x7270e00 0x00 0x2faf080 >;
			qcom,msm-bus,name = "usb2";
			qcom,msm-bus,num-paths = < 0x01 >;

			qcom,usbbam@78c4000 {
				compatible = "qcom,usb-bam-msm";
				qcom,reset-bam-on-disconnect;
				reg = < 0x78c4000 0x15000 >;
				qcom,disable-clk-gating;
				qcom,usb-bam-fifo-baseaddr = "\b`8";
				interrupt-parent = < 0x01 >;
				qcom,ignore-core-reset-ack;
				qcom,bam-type = < 0x01 >;
				interrupts = < 0x00 0x87 0x00 >;
				qcom,usb-bam-num-pipes = < 0x02 >;

				qcom,pipe0 {
					qcom,pipe-num = < 0x00 >;
					label = "hsusb-qdss-in-0";
					qcom,descriptor-fifo-size = < 0x200 >;
					qcom,dst-bam-pipe-index = < 0x00 >;
					qcom,dir = < 0x01 >;
					qcom,peer-bam = < 0x00 >;
					qcom,descriptor-fifo-offset = < 0x600 >;
					qcom,usb-bam-mem-type = < 0x02 >;
					qcom,data-fifo-size = < 0x600 >;
					qcom,data-fifo-offset = < 0x00 >;
					qcom,src-bam-pipe-index = < 0x00 >;
					qcom,peer-bam-physical-address = < 0x6084000 >;
				};
			};
		};

		pps {
			gpios = < 0x5c 0x35 0x00 >;
			pinctrl-names = "default";
			compatible = "pps-gpio";
			status = "okay";
			pinctrl-0 = < 0xd9 >;
		};

		sdcard_ext_vreg {
			enable-active-high;
			compatible = "regulator-fixed";
			gpio = < 0xdd 0x04 0x00 >;
			phandle = < 0x55 >;
			linux,phandle = < 0x55 >;
			regulator-name = "sdcard_ext_vreg";
			startup-delay-us = < 0xfa >;
		};

		qcom,cpu-sleep-status@b088008 {
			compatible = "qcom,cpu-sleep-status";
			reg = < 0xb088008 0x100 >;
			qcom,sleep-status-mask = < 0x80000 >;
			qcom,cpu-alias-addr = < 0x10000 >;
		};

		jtagfuse@a601c {
			compatible = "qcom,jtag-fuse-v2";
			reg = < 0xa601c 0x08 >;
			reg-names = "fuse-base";
		};

		funnel@6068000 {
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			coresight-child-list = < 0x0a >;
			coresight-outports = < 0x00 >;
			coresight-nr-inports = < 0x02 >;
			compatible = "arm,coresight-funnel";
			coresight-child-ports = < 0x06 >;
			reg = < 0x6068000 0x1000 >;
			clock-names = "core_clk\0core_a_clk";
			phandle = < 0x0b >;
			linux,phandle = < 0x0b >;
			reg-names = "funnel-base";
			coresight-name = "coresight-funnel-in2";
			coresight-id = < 0x05 >;
		};

		ethernet@7c58000 {
			interrupt-names = "emac_sgmii_irq";
			compatible = "qcom,mdm9607-emac-sgmii";
			reg = < 0x7c58000 0x400 >;
			phandle = < 0xd3 >;
			linux,phandle = < 0xd3 >;
			interrupts = < 0x00 0x50 0x00 >;
			reg-names = "emac_sgmii";
		};

		fuse@a601c {
			coresight-nr-inports = < 0x00 >;
			compatible = "arm,coresight-fuse-v2";
			reg = < 0xa601c 0x08 >;
			reg-names = "fuse-base";
			coresight-name = "coresight-fuse";
			coresight-id = < 0x18 >;
		};

		qcom,msm-dai-fe {
			compatible = "qcom,msm-dai-fe";
		};

		wcd9xxx-irq {
			interrupt-names = "cdc-int";
			compatible = "qcom,wcd9xxx-irq";
			interrupt-controller;
			qcom,gpio-connect = < 0x5c 0x4b 0x00 >;
			interrupt-parent = < 0x5c >;
			phandle = < 0x68 >;
			linux,phandle = < 0x68 >;
			#interrupt-cells = < 0x01 >;
		};

		qcom,msm-dai-tdm-pri-rx {
			compatible = "qcom,msm-dai-tdm";
			qcom,msm-cpudai-tdm-group-port-id = < 0x9000 >;
			qcom,msm-cpudai-tdm-clk-rate = < 0xbb8000 >;
			qcom,msm-cpudai-tdm-group-id = < 0x9100 >;
			qcom,msm-cpudai-tdm-clk-attribute = [ 00 01 ];
			qcom,msm-cpudai-tdm-group-num-ports = < 0x01 >;

			qcom,msm-dai-q6-tdm-pri-rx-0 {
				qcom,msm-cpudai-tdm-dev-id = < 0x9000 >;
				qcom,msm-cpudai-tdm-sync-mode = < 0x00 >;
				compatible = "qcom,msm-dai-q6-tdm";
				qcom,msm-cpudai-tdm-invert-sync = < 0x00 >;
				qcom,msm-cpudai-tdm-sync-src = < 0x01 >;
				qcom,msm-cpudai-tdm-data-out = < 0x00 >;
				phandle = < 0xa0 >;
				linux,phandle = < 0xa0 >;
				qcom,msm-cpudai-tdm-data-delay = < 0x01 >;
				qcom,msm-cpudai-tdm-data-align = < 0x00 >;
			};
		};

		keys {
			pinctrl-names = "tlmm_gpio_key_active\0tlmm_gpio_key_suspend";
			compatible = "gpio-keys";
			pinctrl-1 = < 0xee 0xef >;
			pinctrl-0 = < 0xec 0xed >;

			button@1 {
				gpios = < 0x5c 0x15 0x01 >;
				label = "factory_key";
				linux,code = < 0x6a >;
				gpio-key,wakeup;
				linux,input-type = < 0x01 >;
			};

			button@0 {
				gpios = < 0x5c 0x1a 0x01 >;
				label = "power_key";
				linux,code = < 0x74 >;
				gpio-key,wakeup;
				linux,input-type = < 0x01 >;
			};
		};

		qcom,msm-pcm-hostless {
			compatible = "qcom,msm-pcm-hostless";
			phandle = < 0x8a >;
			linux,phandle = < 0x8a >;
		};

		qcom,ion {
			#size-cells = < 0x00 >;
			compatible = "qcom,msm-ion";
			#address-cells = < 0x01 >;

			qcom,ion-heap@28 {
				reg = < 0x1c >;
				memory-region = < 0x03 >;
				status = "disabled";
				qcom,ion-heap-type = "DMA";
			};

			qcom,ion-heap@25 {
				reg = < 0x19 >;
				qcom,ion-heap-type = "SYSTEM";
			};

			qcom,ion-heap@27 {
				reg = < 0x1b >;
				memory-region = < 0x04 >;
				qcom,ion-heap-type = "DMA";
			};
		};

		cti@6015000 {
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			coresight-nr-inports = < 0x00 >;
			compatible = "arm,coresight-cti";
			reg = < 0x6015000 0x1000 >;
			clock-names = "core_clk\0core_a_clk";
			reg-names = "cti-base";
			coresight-name = "coresight-cti5";
			coresight-id = < 0x0b >;
		};

		cti@6012000 {
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			coresight-nr-inports = < 0x00 >;
			compatible = "arm,coresight-cti";
			reg = < 0x6012000 0x1000 >;
			clock-names = "core_clk\0core_a_clk";
			reg-names = "cti-base";
			coresight-name = "coresight-cti2";
			coresight-id = < 0x08 >;
		};

		qcom,mdss_lcdc_ili_hvga {
			label = "ili9488 hvga lcdc panel";
			compatible = "qcom,mdss-qpic-panel";
			qcom,refresh_rate = < 0x3c >;
			qcom,mdss-pan-res = < 0x140 0x1e0 >;
			qcom,mdss-pan-bpp = < 0x12 >;
		};

		qcom,msm-imem@8600000 {
			#size-cells = < 0x01 >;
			compatible = "qcom,msm-imem";
			reg = < 0x8600000 0x1000 >;
			#address-cells = < 0x01 >;
			ranges = < 0x00 0x8600000 0x1000 >;

			mem_dump_table@10 {
				compatible = "qcom,msm-imem-mem_dump_table";
				reg = < 0x10 0x08 >;
			};

			restart_reason@65c {
				compatible = "qcom,msm-imem-restart_reason";
				reg = < 0x65c 0x04 >;
			};

			boot_stats@6b0 {
				compatible = "qcom,msm-imem-boot_stats";
				reg = < 0x6b0 0x20 >;
			};

			pil@94c {
				compatible = "qcom,msm-imem-pil";
				reg = < 0x94c 0xc8 >;
			};
		};

		ad-hoc-bus {
			compatible = "qcom,msm-bus-device";
			reg = < 0x401000 0x58000 0x500000 0x15080 >;
			reg-names = "bimc-base\0pcnoc-base";

			slv-message-ram {
				qcom,slv-rpm-id = < 0x37 >;
				cell-id = < 0x274 >;
				label = "slv-message-ram";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x1c >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x1c >;
				qcom,bus-dev = < 0x10 >;
			};

			slv-imem-cfg {
				qcom,slv-rpm-id = < 0x36 >;
				cell-id = < 0x273 >;
				qcom,ap-owned;
				label = "slv-imem-cfg";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x2e >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x2e >;
				qcom,bus-dev = < 0x10 >;
			};

			mas-hsic {
				cell-id = < 0x55 >;
				label = "mas-hsic";
				qcom,buswidth = < 0x04 >;
				qcom,connections = < 0x20 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x28 >;
			};

			fab-pcnoc {
				clocks = < 0x09 0x2b53b688 0x09 0x9753a54f >;
				qcom,base-offset = < 0x7000 >;
				coresight-child-list = < 0x0b >;
				cell-id = < 0x1000 >;
				label = "fab-pcnoc";
				qcom,fab-dev;
				coresight-outports = < 0x00 >;
				coresight-nr-inports = < 0x00 >;
				qcom,qos-off = < 0x1000 >;
				coresight-child-ports = < 0x00 >;
				clock-names = "bus_clk\0bus_a_clk";
				qcom,bus-type = < 0x01 >;
				phandle = < 0x10 >;
				qcom,base-name = "pcnoc-base";
				linux,phandle = < 0x10 >;
				coresight-name = "coresight-pcnoc";
				coresight-id = < 0xc9 >;
			};

			pcnoc-s-4 {
				qcom,slv-rpm-id = < 0x7a >;
				cell-id = < 0x2726 >;
				label = "pcnoc-s-4";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x14 >;
				qcom,connections = < 0x2e 0x2f >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x14 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x5d >;
			};

			slv-imem {
				qcom,slv-rpm-id = < 0x1a >;
				cell-id = < 0x207 >;
				qcom,ap-owned;
				label = "slv-imem";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x26 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x26 >;
				qcom,bus-dev = < 0x10 >;
			};

			mas-apps-proc {
				qcom,qos-mode = "fixed";
				cell-id = < 0x01 >;
				qcom,ap-owned;
				label = "mas-apps-proc";
				qcom,buswidth = < 0x08 >;
				qcom,qport = < 0x00 >;
				qcom,connections = < 0x0c 0x0d >;
				qcom,prio-wr = < 0x00 >;
				qcom,prio-rd = < 0x00 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x0e >;
				qcom,mas-rpm-id = < 0x00 >;
				qcom,prio-lvl = < 0x00 >;
			};

			mas-usb-hs1 {
				cell-id = < 0x57 >;
				label = "mas-usb-hs1";
				qcom,buswidth = < 0x04 >;
				qcom,connections = < 0x22 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x2a >;
				qcom,blacklist = < 0x13 0x12 0x14 0x15 0x17 0x1b 0x1d 0x1e 0x21 0x23 >;
			};

			slv-sdcc-1 {
				qcom,slv-rpm-id = < 0x1f >;
				cell-id = < 0x25e >;
				label = "slv-sdcc-1";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x28 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x28 >;
				qcom,bus-dev = < 0x10 >;
			};

			mas-audio {
				cell-id = < 0x6b >;
				label = "mas-audio";
				qcom,buswidth = < 0x04 >;
				qcom,connections = < 0x20 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x4e >;
				qcom,blacklist = < 0x13 0x11 0x12 0x16 0x14 0x15 0x17 >;
			};

			pcnoc-s-3 {
				qcom,slv-rpm-id = < 0x79 >;
				cell-id = < 0x2725 >;
				qcom,ap-owned;
				label = "pcnoc-s-3";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x16 >;
				qcom,connections = < 0x23 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x16 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x5c >;
			};

			slv-audio {
				qcom,slv-rpm-id = < 0x69 >;
				cell-id = < 0x29f >;
				label = "slv-audio";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x2d >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x2d >;
				qcom,bus-dev = < 0x10 >;
			};

			mas-pcnoc-bimc-1 {
				cell-id = < 0x6f >;
				label = "mas-pcnoc-bimc-1";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x32 >;
				qcom,connections = < 0x0d >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x32 >;
				qcom,bus-dev = < 0x0e >;
				qcom,mas-rpm-id = < 0x8b >;
			};

			slv-bimc-pcnoc {
				qcom,slv-rpm-id = < 0xca >;
				cell-id = < 0x2cd >;
				label = "slv-bimc-pcnoc";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x0c >;
				qcom,connections = < 0x31 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x0c >;
				qcom,bus-dev = < 0x0e >;
			};

			pcnoc-m-0 {
				qcom,slv-rpm-id = < 0x74 >;
				cell-id = < 0x271e >;
				label = "pcnoc-m-0";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x20 >;
				qcom,connections = < 0x25 0x19 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x20 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x57 >;
			};

			mas-sdcc-2 {
				cell-id = < 0x51 >;
				label = "mas-sdcc-2";
				qcom,buswidth = < 0x08 >;
				qcom,connections = < 0x24 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x23 >;
				qcom,blacklist = < 0x13 0x12 0x16 0x14 0x15 0x17 0x1b 0x1d 0x21 0x1e >;
			};

			pcnoc-m-1 {
				qcom,slv-rpm-id = < 0x75 >;
				cell-id = < 0x271f >;
				label = "pcnoc-m-1";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x22 >;
				qcom,connections = < 0x25 0x19 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x22 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x58 >;
			};

			slv-usb-phy {
				qcom,slv-rpm-id = < 0x5f >;
				cell-id = < 0x28e >;
				qcom,ap-owned;
				label = "slv-usb-phy";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x23 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x23 >;
				qcom,bus-dev = < 0x10 >;
			};

			mas-qdss-etr {
				cell-id = < 0x3c >;
				label = "mas-qdss-etr";
				qcom,buswidth = < 0x08 >;
				qcom,connections = < 0x0f >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x1f >;
				qcom,blacklist = < 0x13 0x12 0x16 0x14 0x15 0x1b 0x1c 0x1d 0x1e 0x1f 0x17 >;
			};

			mas-xi-hsic {
				cell-id = < 0x71 >;
				label = "mas-xi-hsic";
				qcom,buswidth = < 0x08 >;
				qcom,connections = < 0x25 0x19 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x8d >;
				qcom,blacklist = < 0x13 0x12 0x16 0x14 0x15 0x17 0x1b 0x1d 0x21 0x1e >;
			};

			slv-tcsr {
				qcom,slv-rpm-id = < 0x32 >;
				cell-id = < 0x26f >;
				label = "slv-tcsr";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x27 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x27 >;
				qcom,bus-dev = < 0x10 >;
			};

			mas-tcu-0 {
				qcom,qos-mode = "fixed";
				cell-id = < 0x68 >;
				qcom,ap-owned;
				label = "mas-tcu-0";
				qcom,buswidth = < 0x08 >;
				qcom,qport = < 0x05 >;
				qcom,connections = < 0x0d >;
				qcom,prio-wr = < 0x02 >;
				qcom,prio-rd = < 0x02 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x0e >;
				qcom,mas-rpm-id = < 0x66 >;
				qcom,prio-lvl = < 0x02 >;
			};

			pcnoc-s-1 {
				qcom,slv-rpm-id = < 0x77 >;
				cell-id = < 0x2723 >;
				label = "pcnoc-s-1";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x11 >;
				qcom,connections = < 0x21 0x1b 0x1e 0x1d 0x1c >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x11 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x5a >;
			};

			mas-xi-usb-hs1 {
				cell-id = < 0x6e >;
				label = "mas-xi-usb-hs1";
				qcom,buswidth = < 0x08 >;
				qcom,connections = < 0x25 0x19 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x8a >;
				qcom,blacklist = < 0x13 0x12 0x14 0x15 0x17 0x1b 0x1d 0x21 0x1e 0x23 >;
			};

			slv-crypto-0-cfg {
				qcom,slv-rpm-id = < 0x34 >;
				cell-id = < 0x271 >;
				qcom,ap-owned;
				label = "slv-crypto-0-cfg";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x1b >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x1b >;
				qcom,bus-dev = < 0x10 >;
			};

			slv-sdcc-2 {
				qcom,slv-rpm-id = < 0x21 >;
				cell-id = < 0x260 >;
				label = "slv-sdcc-2";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x2c >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x2c >;
				qcom,bus-dev = < 0x10 >;
			};

			fab-bimc {
				clocks = < 0x09 0xd212feea 0x09 0x71d1a499 >;
				coresight-child-list = < 0x0a >;
				cell-id = < 0x00 >;
				label = "fab-bimc";
				qcom,fab-dev;
				coresight-outports = < 0x00 >;
				coresight-nr-inports = < 0x00 >;
				qcom,util-fact = < 0x9a >;
				coresight-child-ports = < 0x03 >;
				clock-names = "bus_clk\0bus_a_clk";
				qcom,bus-type = < 0x02 >;
				phandle = < 0x0e >;
				qcom,base-name = "bimc-base";
				linux,phandle = < 0x0e >;
				coresight-name = "coresight-bimc";
				coresight-id = < 0xcb >;
			};

			pcnoc-int-2 {
				qcom,slv-rpm-id = < 0xb8 >;
				cell-id = < 0x2741 >;
				label = "pcnoc-int-2";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x19 >;
				qcom,connections = < 0x11 0x12 0x13 0x14 0x15 0x16 0x17 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x19 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x7c >;
			};

			mas-crypto {
				qcom,qos-mode = "fixed";
				cell-id = < 0x2f >;
				qcom,ap-owned;
				qcom,prio1 = < 0x02 >;
				label = "mas-crypto";
				qcom,buswidth = < 0x08 >;
				qcom,qport = < 0x00 >;
				qcom,connections = < 0x24 >;
				qcom,prio0 = < 0x02 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x17 >;
				qcom,blacklist = < 0x13 0x12 0x16 0x14 0x15 0x17 0x1b 0x1d 0x21 0x1e >;
			};

			mas-bimc-pcnoc {
				cell-id = < 0x70 >;
				label = "mas-bimc-pcnoc";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x31 >;
				qcom,connections = < 0x18 0x19 0x1a >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x31 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x8c >;
			};

			slv-qdss-stm {
				qcom,slv-rpm-id = < 0x1e >;
				cell-id = < 0x24c >;
				qcom,ap-owned;
				label = "slv-qdss-stm";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x1f >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x1f >;
				qcom,bus-dev = < 0x10 >;
			};

			qdss-int {
				qcom,slv-rpm-id = < 0x80 >;
				cell-id = < 0x2719 >;
				label = "qdss-int";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x0f >;
				qcom,connections = < 0x18 0x25 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x0f >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x62 >;
			};

			pcnoc-s-2 {
				qcom,slv-rpm-id = < 0x78 >;
				cell-id = < 0x2724 >;
				label = "pcnoc-s-2";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x12 >;
				qcom,connections = < 0x2b 0x2c 0x2d >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x12 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x5b >;
			};

			mas-sdcc-1 {
				cell-id = < 0x4e >;
				label = "mas-sdcc-1";
				qcom,buswidth = < 0x08 >;
				qcom,connections = < 0x24 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x21 >;
				qcom,blacklist = < 0x13 0x12 0x16 0x14 0x15 0x17 0x1b 0x1d 0x21 0x1e >;
			};

			pcnoc-int-0 {
				qcom,slv-rpm-id = < 0x72 >;
				cell-id = < 0x271c >;
				qcom,ap-owned;
				label = "pcnoc-int-0";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x18 >;
				qcom,connections = < 0x26 0x1f >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x18 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x55 >;
			};

			slv-cats-0 {
				qcom,slv-rpm-id = < 0x6a >;
				cell-id = < 0x297 >;
				qcom,ap-owned;
				label = "slv-cats-0";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x1a >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x1a >;
				qcom,bus-dev = < 0x10 >;
			};

			mas-blsp-1 {
				cell-id = < 0x56 >;
				label = "mas-blsp-1";
				qcom,buswidth = < 0x04 >;
				qcom,connections = < 0x22 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x29 >;
				qcom,blacklist = < 0x13 0x11 0x12 0x16 0x14 0x15 0x17 >;
			};

			slv-pmic-arb {
				qcom,slv-rpm-id = < 0x3b >;
				cell-id = < 0x278 >;
				label = "slv-pmic-arb";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x2f >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x2f >;
				qcom,bus-dev = < 0x10 >;
			};

			slv-sgmii {
				qcom,slv-rpm-id = < 0xc8 >;
				cell-id = < 0x2cf >;
				qcom,ap-owned;
				label = "slv-sgmii";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x2a >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x2a >;
				qcom,bus-dev = < 0x10 >;
			};

			slv-tlmm {
				qcom,slv-rpm-id = < 0x33 >;
				cell-id = < 0x270 >;
				label = "slv-tlmm";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x30 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x30 >;
				qcom,bus-dev = < 0x10 >;
			};

			slv-pcnoc-bimc-1 {
				qcom,slv-rpm-id = < 0xcb >;
				cell-id = < 0x2ce >;
				label = "slv-pcnoc-bimc-1";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x25 >;
				qcom,connections = < 0x32 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x25 >;
				qcom,bus-dev = < 0x10 >;
			};

			slv-ebi {
				qcom,slv-rpm-id = < 0x00 >;
				cell-id = < 0x200 >;
				label = "slv-ebi";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x0d >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x0d >;
				qcom,bus-dev = < 0x0e >;
			};

			pcnoc-s-0 {
				qcom,slv-rpm-id = < 0x76 >;
				cell-id = < 0x2722 >;
				label = "pcnoc-s-0";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x13 >;
				qcom,connections = < 0x27 0x28 0x29 0x2a >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x13 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x59 >;
			};

			slv-tcu {
				qcom,slv-rpm-id = < 0x85 >;
				cell-id = < 0x2a0 >;
				qcom,ap-owned;
				label = "slv-tcu";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x17 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x17 >;
				qcom,bus-dev = < 0x10 >;
			};

			slv-blsp-1 {
				qcom,slv-rpm-id = < 0x27 >;
				cell-id = < 0x265 >;
				label = "slv-blsp-1";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x29 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x29 >;
				qcom,bus-dev = < 0x10 >;
			};

			pcnoc-s-5 {
				qcom,slv-rpm-id = < 0xbd >;
				cell-id = < 0x273f >;
				label = "pcnoc-s-5";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x15 >;
				qcom,connections = < 0x30 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x15 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x81 >;
			};

			mas-sgmii {
				qcom,qos-mode = "fixed";
				cell-id = < 0x72 >;
				qcom,ap-owned;
				qcom,prio1 = < 0x01 >;
				label = "mas-sgmii";
				qcom,buswidth = < 0x08 >;
				qcom,qport = < 0x0a >;
				qcom,connections = < 0x25 0x19 >;
				qcom,prio0 = < 0x01 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x8e >;
				qcom,blacklist = < 0x13 0x12 0x16 0x14 0x15 0x17 0x1b 0x1d 0x21 0x1e >;
			};

			slv-prng {
				qcom,slv-rpm-id = < 0x2c >;
				cell-id = < 0x26a >;
				label = "slv-prng";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x1e >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x1e >;
				qcom,bus-dev = < 0x10 >;
			};

			mas-qdss-bam {
				cell-id = < 0x35 >;
				label = "mas-qdss-bam";
				qcom,buswidth = < 0x04 >;
				qcom,connections = < 0x0f >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x13 >;
				qcom,blacklist = < 0x11 0x12 0x13 0x14 0x15 0x16 0x17 >;
			};

			mas-qpic {
				cell-id = < 0x5b >;
				label = "mas-qpic";
				qcom,buswidth = < 0x04 >;
				qcom,connections = < 0x20 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x3a >;
				qcom,blacklist = < 0x13 0x12 0x16 0x14 0x15 0x17 0x1b 0x1d 0x1e 0x21 >;
			};

			slv-usb2 {
				qcom,slv-rpm-id = < 0x28 >;
				cell-id = < 0x266 >;
				qcom,ap-owned;
				label = "slv-usb2";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x21 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x21 >;
				qcom,bus-dev = < 0x10 >;
			};

			slv-pdm {
				qcom,slv-rpm-id = < 0x29 >;
				cell-id = < 0x267 >;
				label = "slv-pdm";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x1d >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x1d >;
				qcom,bus-dev = < 0x10 >;
			};

			slv_qipc {
				qcom,slv-rpm-id = < 0x50 >;
				cell-id = < 0x288 >;
				label = "slv-qpic";
				qcom,buswidth = < 0x04 >;
				qcom,agg-ports = < 0x01 >;
				qcom,bus-dev = < 0x10 >;
			};

			slv-hsic {
				qcom,slv-rpm-id = < 0x26 >;
				cell-id = < 0x264 >;
				label = "slv-hsic";
				qcom,buswidth = < 0x04 >;
				phandle = < 0x2b >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x2b >;
				qcom,bus-dev = < 0x10 >;
			};

			pcnoc-int-3 {
				qcom,slv-rpm-id = < 0xb9 >;
				cell-id = < 0x2742 >;
				label = "pcnoc-int-3";
				qcom,buswidth = < 0x08 >;
				phandle = < 0x24 >;
				qcom,connections = < 0x25 0x19 >;
				qcom,agg-ports = < 0x01 >;
				linux,phandle = < 0x24 >;
				qcom,bus-dev = < 0x10 >;
				qcom,mas-rpm-id = < 0x7d >;
			};
		};

		prim_master_pinctrl {
			qcom,mi2s-auxpcm-cdc-gpios;
			pinctrl-names = "aud_active\0aud_sleep";
			compatible = "qcom,wcd-gpio-ctrl";
			phandle = < 0x81 >;
			pinctrl-1 = < 0xa9 0xaa 0xab 0xac >;
			linux,phandle = < 0x81 >;
			pinctrl-0 = < 0xa5 0xa6 0xa7 0xa8 >;
		};

		android_usb-hsic {
			qcom,usb-core-id = < 0x01 >;
			compatible = "qcom,android-usb";
			status = "disabled";
		};

		qcom,msm-thermal {
			vdd-mx-supply = < 0xb9 >;
			qcom,freq-mitigation-temp-hysteresis = < 0x0f >;
			compatible = "qcom,msm-thermal";
			qcom,disable-psm;
			vdd-dig-supply = < 0xba >;
			qcom,mx-restriction-temp-hysteresis = < 0x05 >;
			qcom,sensor-id = < 0x04 >;
			qcom,disable-ocr;
			qcom,therm-ddr-lm-info = < 0x02 0x4e 0x46 >;
			qcom,freq-mitigation-value = < 0xc3500 >;
			qcom,vdd-restriction-temp = < 0x0a >;
			qcom,mx-retention-min = < 0x140 >;
			qcom,disable-gfx-phase-ctrl;
			qcom,disable-cx-phase-ctrl;
			qcom,poll-ms = < 0xfa >;
			qcom,temp-hysteresis = < 0x0a >;
			qcom,limit-temp = < 0x3c >;
			qcom,mx-restriction-temp = < 0x0a >;
			qcom,freq-step = < 0x02 >;
			qcom,vdd-restriction-temp-hysteresis = < 0x0f >;
			qcom,freq-mitigation-temp = < 0x69 >;

			qcom,vdd-apps-rstr {
				qcom,vdd-rstr-reg = "vdd-apps";
				qcom,levels = < 0xf3c00 >;
				qcom,freq-req;
			};

			qcom,vdd-dig-rstr {
				qcom,min-level = < 0x10 >;
				qcom,vdd-rstr-reg = "vdd-dig";
				qcom,levels = < 0x1a0 0x200 0x200 >;
			};
		};

		jtagmm@6042000 {
			qcom,coresight-jtagmm-cpu = < 0x5b >;
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			compatible = "qcom,jtagv8-mm";
			reg = < 0x6042000 0x1000 0x6040000 0x1000 >;
			clock-names = "core_clk\0core_a_clk";
			reg-names = "etm-base\0debug-base";
		};

		cti@6011000 {
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			coresight-nr-inports = < 0x00 >;
			compatible = "arm,coresight-cti";
			reg = < 0x6011000 0x1000 >;
			clock-names = "core_clk\0core_a_clk";
			reg-names = "cti-base";
			coresight-name = "coresight-cti1";
			coresight-id = < 0x07 >;
		};

		qcom,msm-voip-dsp {
			compatible = "qcom,msm-voip-dsp";
			phandle = < 0x87 >;
			linux,phandle = < 0x87 >;
		};

		leds {
			pinctrl-names = "default";
			compatible = "gpio-leds";
			pinctrl-0 = < 0xeb >;

			ds1 {
				gpios = < 0x5c 0x12 0x00 >;
				label = "led0";
				default-state = "off";
				linux,default-trigger = "none";
			};
		};

		qcom,msm-pcm-loopback {
			compatible = "qcom,msm-pcm-loopback";
			phandle = < 0x89 >;
			linux,phandle = < 0x89 >;
		};

		qcom,msm-rtb {
			compatible = "qcom,msm-rtb";
			qcom,rtb-size = < 0x10000 >;
		};

		qcom,smp2pgpio-ssr-smp2p-1-in {
			gpio-controller;
			qcom,remote-pid = < 0x01 >;
			compatible = "qcom,smp2pgpio";
			interrupt-controller;
			phandle = < 0xc4 >;
			linux,phandle = < 0xc4 >;
			#interrupt-cells = < 0x02 >;
			#gpio-cells = < 0x02 >;
			qcom,entry-name = "slave-kernel";
			qcom,is-inbound;
		};

		qcom,smp2pgpio-smp2p-1-out {
			gpio-controller;
			qcom,remote-pid = < 0x01 >;
			compatible = "qcom,smp2pgpio";
			interrupt-controller;
			phandle = < 0x08 >;
			linux,phandle = < 0x08 >;
			#interrupt-cells = < 0x02 >;
			#gpio-cells = < 0x02 >;
			qcom,entry-name = "smp2p";
		};

		spi@78ba000 {
			#size-cells = < 0x00 >;
			clocks = < 0x09 0x8caa5b4f 0x09 0x780d9f85 >;
			qcom,ver-reg-exists;
			qcom,use-bam;
			qcom,use-pinctrl;
			interrupt-names = "spi_irq\0spi_bam_irq";
			pinctrl-names = "spi_default\0spi_sleep";
			spi-max-frequency = < 0x124f800 >;
			compatible = "qcom,spi-qup-v2";
			qcom,bam-producer-pipe-index = < 0x17 >;
			reg = < 0x78ba000 0x600 0x7884000 0x2b000 >;
			clock-names = "iface_clk\0core_clk";
			status = "ok";
			#address-cells = < 0x01 >;
			qcom,bam-consumer-pipe-index = < 0x16 >;
			pinctrl-1 = < 0xe3 0xe4 >;
			interrupts = < 0x00 0x64 0x00 0x00 0xee 0x00 >;
			reg-names = "spi_physical\0spi_bam_physical";
			qcom,master-id = < 0x56 >;
			qcom,infinite-mode = < 0x00 >;
			pinctrl-0 = < 0xe1 0xe2 >;

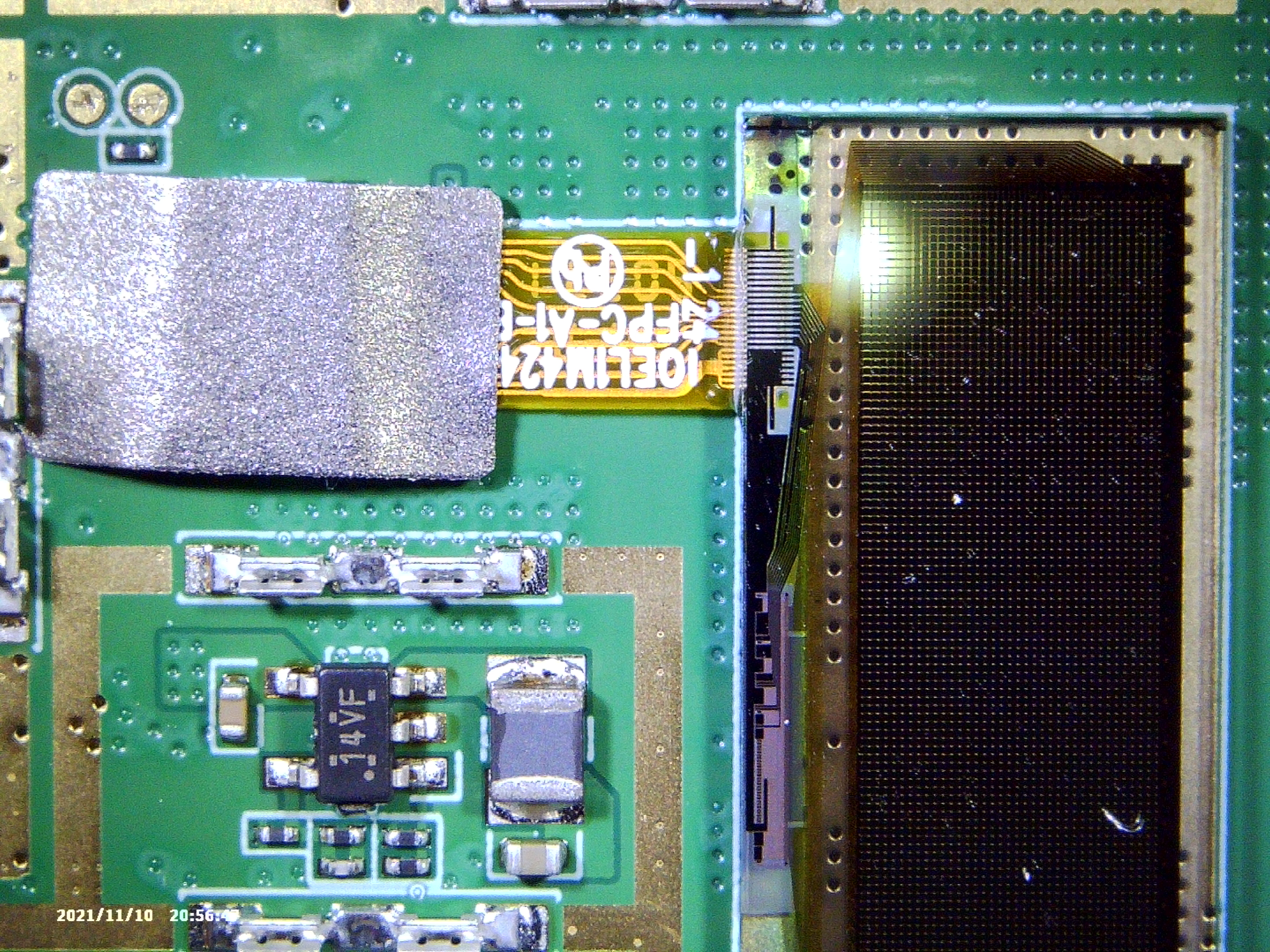

			lcd-ld7032@0 {
				pinctrl-5 = < 0xea >;
				pinctrl-names = "lcd-pmoled-active\0lcd-pmoled-sleep\0lcd-a0-active\0lcd-a0-sleep\0lcd-reset-active\0lcd-reset-sleep";
				spi-max-frequency = < 0xf42400 >;
				compatible = "qcom,ld7032-lcd";
				reg = < 0x00 >;
				status = "ok";
				pinctrl-4 = < 0xe9 >;
				pinctrl-3 = < 0xe8 >;
				pinctrl-1 = < 0xe6 >;
				pinctrl-2 = < 0xe7 >;
				regulator-name = "lcd-ld7032";
				pinctrl-0 = < 0xe5 >;
			};
		};

		sound-9330 {
			qcom,sec_mi2s_aux_slave = < 0x84 >;
			asoc-cpu-names = "msm-dai-q6-auxpcm.1\0msm-dai-q6-auxpcm.2\0msm-dai-q6-mi2s.0\0msm-dai-q6-mi2s.1\0msm-dai-stub-dev.4\0msm-dai-stub-dev.5\0msm-dai-stub-dev.6\0msm-dai-stub-dev.7\0msm-dai-stub-dev.8\0msm-dai-q6-dev.224\0msm-dai-q6-dev.225\0msm-dai-q6-dev.241\0msm-dai-q6-dev.240\0msm-dai-q6-dev.32771\0msm-dai-q6-dev.32772\0msm-dai-q6-dev.32773\0msm-dai-q6-tdm.36864\0msm-dai-q6-tdm.36865\0msm-dai-q6-tdm.36880\0msm-dai-q6-tdm.36881";
			qcom,audio-routing = "RX_BIAS\0MCLK\0LDO_H\0MCLK\0AMIC2\0MIC BIAS2 External\0MIC BIAS2 External\0Headset Mic\0AMIC3\0MIC BIAS2 External\0MIC BIAS2 External\0ANCRight Headset Mic\0AMIC4\0MIC BIAS2 External\0MIC BIAS2 External\0ANCLeft Headset Mic\0AMIC5\0MIC BIAS1 External\0MIC BIAS1 External\0Handset Mic\0AMIC6\0MIC BIAS1 External\0MIC BIAS1 External\0Handset Mic\0DMIC1\0MIC BIAS1 External\0MIC BIAS1 External\0Digital Mic1\0DMIC3\0MIC BIAS3 External\0MIC BIAS3 External\0Digital Mic3";
			asoc-codec-names = "msm-stub-codec.1";
			qcom,codec-mclk-clk-freq = < 0xbb8000 >;
			compatible = "qcom,mdm9607-audio-tomtom";
			asoc-cpu = < 0x90 0x91 0x92 0x93 0x94 0x95 0x96 0x97 0x98 0x99 0x9a 0x9b 0x9c 0x9d 0x9e 0x9f 0xa0 0xa1 0xa2 0xa3 >;
			qcom,sec_mi2s_aux_master = < 0x83 >;
			qcom,prim_mi2s_aux_master = < 0x81 >;
			asoc-platform = < 0x85 0x86 0x87 0x88 0x89 0x8a 0x8b 0x8c 0x8d 0x8e 0x8f >;
			qcom,model = "mdm9607-tomtom-i2s-snd-card";
			asoc-codec = < 0xa4 >;
			asoc-platform-names = "msm-pcm-dsp.0\0msm-pcm-dsp.1\0msm-voip-dsp\0msm-pcm-voice\0msm-pcm-loopback\0msm-pcm-hostless\0msm-pcm-afe\0msm-pcm-routing\0msm-pcm-dtmf\0msm-voice-host-pcm\0msm-compress-dsp";
			qcom,prim_mi2s_aux_slave = < 0x82 >;
		};

		qcom,msm-sec-auxpcm {
			qcom,msm-cpudai-auxpcm-sync = < 0x01 0x01 >;
			compatible = "qcom,msm-auxpcm-dev";
			qcom,msm-auxpcm-interface = "secondary";
			qcom,msm-cpudai-auxpcm-frame = < 0x05 0x04 >;
			qcom,msm-cpudai-auxpcm-data = < 0x00 0x00 >;
			qcom,msm-cpudai-auxpcm-num-slots = < 0x01 0x01 >;
			phandle = < 0x91 >;
			qcom,msm-cpudai-auxpcm-mode = < 0x00 0x00 >;
			qcom,msm-cpudai-auxpcm-pcm-clk-rate = < 0x1f4000 0x1f4000 >;
			linux,phandle = < 0x91 >;
			qcom,msm-cpudai-auxpcm-slot-mapping = < 0x01 0x01 >;
			qcom,msm-cpudai-afe-clk-ver = < 0x02 >;
			qcom,msm-cpudai-auxpcm-quant = < 0x02 0x02 >;
		};

		sec_slave_pinctrl {
			qcom,mi2s-auxpcm-cdc-gpios;
			pinctrl-names = "aud_active\0aud_sleep";
			compatible = "qcom,wcd-gpio-ctrl";
			phandle = < 0x84 >;
			pinctrl-1 = < 0xb3 0xb4 0xb5 0xb6 >;
			linux,phandle = < 0x84 >;
			pinctrl-0 = < 0xb7 0xb8 0xb1 0xb2 >;
		};

		qcom,msm-compress-dsp {
			compatible = "qcom,msm-compress-dsp";
			phandle = < 0x8f >;
			linux,phandle = < 0x8f >;
			qcom,adsp-version = "MDSP 2.8";
		};

		qcom,ntn_hsic {
			ntn-rst-gpio = < 0x5c 0x1e 0x01 >;
			vdd-ntn-hsic-supply = < 0x6a >;
			ntn-phy-id = < 0x07 >;
			pinctrl-names = "default";
			compatible = "qcom,ntn-hsic";
			ntn-timestamp-valid-window-disable = < 0x01 >;
			ntn-timestamp-valid-window = < 0x04 >;
			pinctrl-0 = < 0xde >;
		};

		qcom,smp2pgpio-ssr-smp2p-1-out {
			gpio-controller;
			qcom,remote-pid = < 0x01 >;
			compatible = "qcom,smp2pgpio";
			interrupt-controller;
			phandle = < 0xc5 >;
			linux,phandle = < 0xc5 >;
			#interrupt-cells = < 0x02 >;
			#gpio-cells = < 0x02 >;
			qcom,entry-name = "master-kernel";
		};

		qcom,msm-compr-dsp {
			compatible = "qcom,msm-compr-dsp";
		};

		qcom,debug@1874000 {
			compatible = "qcom,cc-debug-mdm9607";
			reg = < 0x1800000 0x80000 0xb01101c 0x08 >;
			#clock-cells = < 0x01 >;
			reg-names = "cc_base\0meas";
		};

		cti@6016000 {
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			coresight-nr-inports = < 0x00 >;
			compatible = "arm,coresight-cti";
			reg = < 0x6016000 0x1000 >;
			clock-names = "core_clk\0core_a_clk";
			reg-names = "cti-base";
			coresight-name = "coresight-cti6";
			coresight-id = < 0x0c >;
		};

		qcom,rpm-stats@29dba0 {
			compatible = "qcom,rpm-stats";
			reg = < 0x29dba0 0x1000 >;
			qcom,sleep-stats-version = < 0x02 >;
			reg-names = "phys_addr_base";
		};

		qcom,msm-dai-stub {
			compatible = "qcom,msm-dai-stub";

			qcom,msm-dai-stub-host-tx-playback-rx {
				compatible = "qcom,msm-dai-stub-dev";
				phandle = < 0x98 >;
				linux,phandle = < 0x98 >;
				qcom,msm-dai-stub-dev-id = < 0x08 >;
			};

			qcom,msm-dai-stub-host-rx-capture-tx {
				compatible = "qcom,msm-dai-stub-dev";
				phandle = < 0x95 >;
				linux,phandle = < 0x95 >;
				qcom,msm-dai-stub-dev-id = < 0x05 >;
			};

			qcom,msm-dai-stub-host-rx-playback-rx {
				compatible = "qcom,msm-dai-stub-dev";
				phandle = < 0x96 >;
				linux,phandle = < 0x96 >;
				qcom,msm-dai-stub-dev-id = < 0x06 >;
			};

			qcom,msm-dai-stub-dtmf-tx {
				compatible = "qcom,msm-dai-stub-dev";
				phandle = < 0x94 >;
				linux,phandle = < 0x94 >;
				qcom,msm-dai-stub-dev-id = < 0x04 >;
			};

			qcom,msm-dai-stub-host-tx-capture-tx {
				compatible = "qcom,msm-dai-stub-dev";
				phandle = < 0x97 >;
				linux,phandle = < 0x97 >;
				qcom,msm-dai-stub-dev-id = < 0x07 >;
			};
		};

		cti@603c000 {
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			coresight-nr-inports = < 0x00 >;
			compatible = "arm,coresight-cti";
			reg = < 0x603c000 0x1000 >;
			clock-names = "core_clk\0core_a_clk";
			reg-names = "cti-base";
			coresight-name = "coresight-cti-rpm-cpu0";
			coresight-id = < 0x10 >;
		};

		serial@78b3000 {
			clocks = < 0x09 0x28a6bc74 0x09 0x8caa5b4f >;
			pinctrl-names = "default";
			compatible = "qcom,msm-lsuart-v14";
			reg = < 0x78b3000 0x200 >;
			clock-names = "core_clk\0iface_clk";
			status = "ok";
			interrupts = < 0x00 0x79 0x00 >;
			pinctrl-0 = < 0x62 >;
		};

		qcom,bam_dmux@4044000 {
			qcom,fast-shutdown;
			compatible = "qcom,bam_dmux";
			reg = < 0x4044000 0x19000 >;
			qcom,max-rx-mtu = < 0x1000 >;
			qcom,rx-ring-size = < 0x20 >;
			interrupts = < 0x00 0x1d 0x01 >;
		};

		rome_vreg {
			enable-active-high;
			compatible = "regulator-fixed";
			gpio = < 0xdd 0x03 0x00 >;
			phandle = < 0x74 >;
			linux,phandle = < 0x74 >;
			regulator-name = "rome_vreg";
			startup-delay-us = < 0xfa0 >;
		};

		qcom,smdpkt {
			compatible = "qcom,smdpkt";

			qcom,smdpkt-data22 {
				qcom,smdpkt-remote = "modem";
				qcom,smdpkt-dev-name = "smd22";
				qcom,smdpkt-port-name = "DATA22";
			};

			qcom,smdpkt-loopback {
				qcom,smdpkt-remote = "modem";
				qcom,smdpkt-dev-name = "smd_pkt_loopback";
				qcom,smdpkt-port-name = "LOOPBACK";
			};

			qcom,smdpkt-apr-apps2 {
				qcom,smdpkt-remote = "modem";
				qcom,smdpkt-dev-name = "apr_apps2";
				qcom,smdpkt-port-name = "apr_apps2";
			};

			qcom,smdpkt-data40-cntl {
				qcom,smdpkt-remote = "modem";
				qcom,smdpkt-dev-name = "smdcntl8";
				qcom,smdpkt-port-name = "DATA40_CNTL";
			};

			qcom,smdpkt-data5-cntl {
				qcom,smdpkt-remote = "modem";
				qcom,smdpkt-dev-name = "smdcntl0";
				qcom,smdpkt-port-name = "DATA5_CNTL";
			};
		};

		qcom,ipc-spinlock@1905000 {
			compatible = "qcom,ipc-spinlock-sfpb";
			reg = < 0x1905000 0x8000 >;
			qcom,num-locks = < 0x08 >;
		};

		dbgui@606d000 {
			qcom,dbgui-data-offset = < 0xb0 >;
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			coresight-child-list = < 0x0b >;
			coresight-outports = < 0x00 >;
			coresight-nr-inports = < 0x00 >;
			compatible = "qcom,coresight-dbgui";
			coresight-child-ports = < 0x01 >;
			reg = < 0x606d000 0x1000 >;
			clock-names = "core_clk\0core_a_clk";
			reg-names = "dbgui-base";
			qcom,dbgui-addr-offset = < 0x30 >;
			coresight-name = "coresight-dbgui";
			qcom,dbgui-size = < 0x20 >;
			coresight-id = < 0x19 >;
		};

		qcom,smp2pgpio_test_smp2p_1_out {
			gpios = < 0x08 0x00 0x00 >;
			compatible = "qcom,smp2pgpio_test_smp2p_1_out";
		};

		qcom,msm-voice-host-pcm {
			compatible = "qcom,msm-voice-host-pcm";
			phandle = < 0x8e >;
			linux,phandle = < 0x8e >;
		};

		spi@78b6000 {
			#size-cells = < 0x00 >;
			clocks = < 0x09 0x8caa5b4f 0x09 0x3e77d48f >;
			qcom,ver-reg-exists;
			qcom,use-bam;
			qcom,use-pinctrl;
			interrupt-names = "spi_irq\0spi_bam_irq";
			pinctrl-names = "spi_default\0spi_sleep";
			spi-max-frequency = < 0x124f800 >;
			compatible = "qcom,spi-qup-v2";
			qcom,bam-producer-pipe-index = < 0x0f >;
			reg = < 0x78b6000 0x600 0x7884000 0x2b000 >;
			clock-names = "iface_clk\0core_clk";
			status = "ok";
			#address-cells = < 0x01 >;
			qcom,bam-consumer-pipe-index = < 0x0e >;
			pinctrl-1 = < 0xbe 0xbf >;
			interrupts = < 0x00 0x60 0x00 0x00 0xee 0x00 >;
			reg-names = "spi_physical\0spi_bam_physical";
			qcom,master-id = < 0x56 >;
			qcom,infinite-mode = < 0x00 >;
			pinctrl-0 = < 0xbc 0xbd >;

			can-controller@0 {
				pinctrl-names = "active\0sleep";
				spi-max-frequency = < 0x493e00 >;
				compatible = "fsl,k61";
				reg = < 0x00 >;
				status = "disabled";
				interrupt-parent = < 0x5c >;
				reset-gpio = < 0x5c 0x0b 0x01 >;
				pinctrl-1 = < 0xc1 >;
				interrupts = < 0x19 0x00 >;
				pinctrl-0 = < 0xc0 >;
			};
		};

		prim_slave_pinctrl {
			qcom,mi2s-auxpcm-cdc-gpios;
			pinctrl-names = "aud_active\0aud_sleep";
			compatible = "qcom,wcd-gpio-ctrl";
			phandle = < 0x82 >;
			pinctrl-1 = < 0xa9 0xaa 0xab 0xac >;
			linux,phandle = < 0x82 >;
			pinctrl-0 = < 0xad 0xae 0xa7 0xa8 >;
		};

		qcedev@720000 {
			qcom,msm-bus,vectors-KBps = < 0x2f 0x200 0x00 0x00 0x2f 0x200 0x3c0f00 0x60180 >;
			clocks = < 0x09 0x37a21414 0x09 0xd390d2 0x09 0x94de4919 0x09 0xd4415c9b >;
			qcom,ce-hw-instance = < 0x00 >;
			compatible = "qcom,qcedev";
			reg = < 0x720000 0x20000 0x704000 0x20000 >;
			clock-names = "core_clk_src\0core_clk\0iface_clk\0bus_clk";
			qcom,ce-opp-freq = < 0x5f5e100 >;
			qcom,bam-pipe-pair = < 0x01 >;
			qcom,msm-bus,num-cases = < 0x02 >;
			interrupts = < 0x00 0xcf 0x00 >;
			qcom,ce-device = < 0x00 >;
			qcom,ce-hw-shared;
			reg-names = "crypto-base\0crypto-bam-base";
			qcom,msm-bus,name = "qcedev-noc";
			qcom,msm-bus,num-paths = < 0x01 >;
		};

		regulator@b018000 {
			qcom,cpr-fuse-bp-cpr-disable = < 0x36 >;
			mem-acc-supply = < 0xdc >;
			qcom,cpr-gcnt-time = < 0x01 >;
			vdd-mx-supply = < 0xdb >;
			qcom,vdd-mx-corner-map = < 0x80 0x100 0x180 >;
			qcom,cpr-enable-temp-threshold = < 0x0f >;
			qcom,vdd-apc-step-down-limit = < 0x01 >;
			qcom,cpr-fuse-ro-sel = < 0x2a 0x27 0x24 >;
			qcom,cpr-fuse-init-voltage = < 0x42 0x06 0x06 0x00 0x42 0x00 0x06 0x00 0x41 0x2d 0x06 0x00 >;
			qcom,cpr-disable-temp-threshold = < 0x0a >;
			qcom,cpr-init-voltage-as-ceiling;
			qcom,cpr-fuse-row = < 0x41 0x00 >;
			qcom,cpr-corner-frequency-map = < 0x01 0x17d78400 0x02 0x2faf0800 0x03 0x3b826000 0x04 0x413b3800 0x05 0x46f41000 0x06 0x4a62f800 0x07 0x4dd1e000 >;
			qcom,disable-closed-loop-in-pc;
			qcom,cpr-voltage-floor = < 0x100590 0x100590 0x118c30 >;
			qcom,vdd-mx-vmax = < 0x1a0 >;
			compatible = "qcom,cpr-regulator";
			qcom,vdd-mx-vmin-method = < 0x04 >;
			qcom,cpr-corner-map = < 0x01 0x02 0x03 0x03 0x03 0x03 0x03 >;
			reg = < 0xb018000 0x1000 0xb010058 0x04 0xa4000 0x1000 >;
			qcom,cpr-enable;
			qcom,cpr-up-threshold = < 0x02 >;
			regulator-min-microvolt = < 0x01 >;
			qcom,cpr-timer-cons-up = < 0x00 >;
			qcom,cpr-irq-line = < 0x00 >;
			qcom,speed-bin-fuse-sel = < 0x25 0x22 0x03 0x00 >;
			phandle = < 0x60 >;
			qcom,cpr-timer-delay = < 0x1388 >;
			qcom,cpr-voltage-ceiling = < 0x100590 0x12b128 0x149970 >;
			qcom,cpr-fuse-target-quot = < 0x18 0x0c 0x00 >;
			regulator-max-microvolt = < 0x07 >;
			qcom,cpr-fuse-revision = < 0x41 0x33 0x03 0x00 >;
			qcom,cpr-quot-adjust-scaling-factor-max = < 0x578 >;
			qcom,cpr-fuse-corners = < 0x03 >;
			qcom,cpr-timer-cons-down = < 0x02 >;
			qcom,cpr-idle-clocks = < 0x0f >;
			linux,phandle = < 0x60 >;
			interrupts = < 0x00 0x14 0x00 >;
			qcom,cpr-init-voltage-step = < 0x2710 >;
			regulator-name = "apc_corner";
			qcom,cpr-apc-volt-step = < 0x30d4 >;
			qcom,cpr-cpus = < 0x5b >;
			reg-names = "rbcpr\0rbcpr_clk\0efuse_addr";
			qcom,cpr-down-threshold = < 0x03 >;
			vdd-apc-supply = < 0xda >;
			qcom,vdd-apc-step-up-limit = < 0x01 >;
			qcom,cpr-init-voltage-ref = < 0x100590 0x12b128 0x149970 >;
			qcom,cpr-step-quotient = < 0x16 0x00 0x18 0x00 0x00 0x00 0x00 0x00 >;
			qcom,cpr-speed-bin-max-corners = < 0x00 0x00 0x01 0x02 0x07 >;
			qcom,cpr-thermal-sensor-id = < 0x04 >;
			qcom,cpr-ref-clk = < 0x4b00 >;
		};

		stm@6002000 {
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			coresight-child-list = < 0x0a >;
			coresight-outports = < 0x00 >;
			coresight-nr-inports = < 0x00 >;
			compatible = "arm,coresight-stm";
			coresight-child-ports = < 0x07 >;
			reg = < 0x6002000 0x1000 0x9280000 0x180000 >;
			clock-names = "core_clk\0core_a_clk";
			reg-names = "stm-base\0stm-data-base";
			coresight-name = "coresight-stm";
			coresight-id = < 0x12 >;
		};

		cti@6018000 {
			clocks = < 0x09 0x1492202a 0x09 0xdd121669 >;
			coresight-nr-inports = < 0x00 >;
			compatible = "arm,coresight-cti";
			reg = < 0x6018000 0x1000 >;
			clock-names = "core_clk\0core_a_clk";
			phandle = < 0x34 >;
			linux,phandle = < 0x34 >;
			reg-names = "cti-base";
			coresight-name = "coresight-cti8";
			coresight-id = < 0x0e >;
		};

		qcom,rpm-log@29dc00 {
			compatible = "qcom,rpm-log";
			reg = < 0x29dc00 0x4000 >;
			qcom,offset-log-len-mask = < 0x2c >;
			qcom,rpm-addr-phys = < 0x200000 >;
			qcom,offset-page-indices = < 0x38 >;
			qcom,offset-log-len = < 0x28 >;
			qcom,offset-version = < 0x04 >;
			qcom,offset-page-buffer-addr = < 0x24 >;
		};

		i2c@78b8000 {
			#size-cells = < 0x00 >;
			clocks = < 0x09 0x8caa5b4f 0x09 0xd7f40f6f >;
			qcom,clk-freq-out = < 0x61a80 >;
			interrupt-names = "qup_irq";
			pinctrl-names = "i2c_active\0i2c_sleep";
			qcom,noise-rjct-scl = < 0x00 >;
			qcom,noise-rjct-sda = < 0x00 >;
			compatible = "qcom,i2c-msm-v2";
			dmas = < 0x65 0x12 0x40 0x20000020 0x20 0x65 0x13 0x20 0x20000020 0x20 >;
			reg = < 0x78b8000 0x600 >;
			clock-names = "iface_clk\0core_clk";
			status = "disabled";
			qcom,clk-freq-in = < 0x124f800 >;
			#address-cells = < 0x01 >;
			pinctrl-1 = < 0x64 >;
			interrupts = < 0x00 0x62 0x00 >;
			reg-names = "qup_phys_addr";
			dma-names = "tx\0rx";
			qcom,master-id = < 0x56 >;
			pinctrl-0 = < 0x63 >;

			smb358-charger@57 {
				qcom,chg-vadc = < 0x70 >;
				qcom,batt-id-rpullup-kohm = < 0xdc >;
				compatible = "qcom,smb358-charger";
				qcom,irq-gpio = < 0x6f 0x02 0x00 >;
				qcom,batt-id-vref-uv = < 0x1b7740 >;
				reg = < 0x57 >;
				qcom,float-voltage-mv = < 0x1068 >;
				interrupt-parent = < 0x6e >;
				phandle = < 0x77 >;
				linux,phandle = < 0x77 >;
				interrupts = < 0x00 0xa1 0x00 >;
				regulator-name = "smb358_otg_vreg";
			};

			wcd9xxx_codec@55 {
				compatible = "qcom,wcd9xxx-i2c";
				reg = < 0x55 >;
			};

			wcd9xxx_tomtom_codec@0d {
				qcom,cdc-micbias1-ext-cap;
				qcom,cdc-vddcx-1-current = < 0x2710 >;
				cdc-vdd-buck-supply = < 0x69 >;
				qcom,cdc-micbias4-cfilt-sel = < 0x02 >;
				qcom,cdc-micbias-cfilt1-mv = < 0x708 >;
				qcom,cdc-vdd-a-1p2v-current = < 0x2710 >;
				qcom,cdc-static-supplies = "cdc-vdd-buck\0cdc-vdd-tx-h\0cdc-vdd-rx-h\0cdc-vddpx-1\0cdc-vdd-a-1p2v\0cdc-vddcx-1\0cdc-vddcx-2";
				cdc-vdd-tx-h-supply = < 0x6a >;
				cdc-vddcx-1-supply = < 0x6b >;
				cdc-vdd-rx-h-supply = < 0x6a >;
				qcom,cdc-micbias1-cfilt-sel = < 0x00 >;
				pinctrl-names = "default\0idle";
				qcom,cdc-vdd-buck-voltage = < 0x1dc130 0x1dc130 >;
				compatible = "qcom,wcd9xxx-i2c";
				qcom,cdc-reset-gpio = < 0x5c 0x1a 0x00 >;
				qcom,cdc-vdd-tx-h-voltage = < 0x1b7740 0x1b7740 >;
				qcom,cdc-vdd-rx-h-voltage = < 0x1b7740 0x1b7740 >;
				reg = < 0x0d >;
				qcom,cdc-vddcx-2-voltage = < 0x12b128 0x12b128 >;
				cdc-vdd-a-1p2v-supply = < 0x6b >;
				qcom,cdc-micbias-cfilt3-mv = < 0x708 >;
				interrupt-parent = < 0x68 >;
				cdc-vddpx-1-supply = < 0x6a >;
				qcom,cdc-micbias-ldoh-v = < 0x03 >;
				qcom,cdc-vdd-rx-h-current = < 0x61a8 >;
				qcom,cdc-micbias2-cfilt-sel = < 0x01 >;
				qcom,cdc-vddpx-1-current = < 0x2710 >;
				qcom,cdc-vddcx-1-voltage = < 0x12b128 0x12b128 >;
				qcom,cdc-vddcx-2-current = < 0x2710 >;
				pinctrl-1 = < 0x67 >;
				qcom,cdc-variant = "WCD9330";
				qcom,cdc-micbias3-cfilt-sel = < 0x02 >;
				qcom,cdc-vdd-tx-h-current = < 0x61a8 >;
				interrupts = < 0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0a 0x0b 0x0c 0x0d 0x0e 0x0f 0x10 0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1a 0x1b 0x1c >;
				qcom,cdc-mclk-clk-rate = < 0xbb8000 >;
				qcom,cdc-micbias-cfilt2-mv = < 0xa8c >;
				qcom,cdc-dmic-sample-rate = < 0x493e00 >;
				qcom,cdc-vddpx-1-voltage = < 0x1b7740 0x1b7740 >;
				cdc-vddcx-2-supply = < 0x6b >;
				qcom,cdc-vdd-a-1p2v-voltage = < 0x12b128 0x12b128 >;
				qcom,cdc-vdd-buck-current = < 0x61a8 >;
				pinctrl-0 = < 0x66 >;
			};

			wcd9xxx_codec@77 {
				compatible = "qcom,wcd9xxx-i2c";
				reg = < 0x77 >;
			};

			wcd9xxx_tapan_codec@0d {
				qcom,cdc-micbias1-ext-cap;
				cdc-vdd-buck-supply = < 0x69 >;
				qcom,cdc-micbias4-cfilt-sel = < 0x02 >;
				qcom,cdc-micbias-cfilt1-mv = < 0x708 >;
				qcom,cdc-static-supplies = "cdc-vdd-buck\0cdc-vdd-tx-h\0cdc-vdd-rx-h\0cdc-vddpx-1\0cdc-vdd-cx";
				cdc-vdd-tx-h-supply = < 0x6a >;
				qcom,cdc-vdd-cx-voltage = < 0x12b128 0x12b128 >;
				cdc-vdd-rx-h-supply = < 0x6a >;
				qcom,cdc-micbias1-cfilt-sel = < 0x00 >;
				pinctrl-names = "default\0idle";
				qcom,cdc-vdd-buck-voltage = < 0x1dc130 0x1dc130 >;
				compatible = "qcom,wcd9xxx-i2c";
				cdc-vdd-cx-supply = < 0x6b >;
				qcom,cdc-reset-gpio = < 0x5c 0x1a 0x00 >;
				qcom,cdc-vdd-tx-h-voltage = < 0x1b7740 0x1b7740 >;
				qcom,cdc-vdd-rx-h-voltage = < 0x1b7740 0x1b7740 >;
				qcom,cdc-vdd-cx-current = < 0x2710 >;
				reg = < 0x0d >;
				status = "disabled";
				qcom,cdc-micbias-cfilt3-mv = < 0x708 >;
				interrupt-parent = < 0x68 >;
				cdc-vddpx-1-supply = < 0x6a >;
				qcom,cdc-micbias-ldoh-v = < 0x03 >;
				qcom,cdc-vdd-rx-h-current = < 0x61a8 >;
				qcom,cdc-micbias2-cfilt-sel = < 0x01 >;
				qcom,cdc-vddpx-1-current = < 0x2710 >;
				pinctrl-1 = < 0x67 >;
				qcom,cdc-variant = "WCD9306";
				qcom,cdc-micbias3-cfilt-sel = < 0x02 >;
				qcom,cdc-vdd-tx-h-current = < 0x61a8 >;
				interrupts = < 0x00 0x01 0x02 0x03 0x04 0x05 0x06 0x07 0x08 0x09 0x0a 0x0b 0x0c 0x0d 0x0e 0x0f 0x10 0x11 0x12 0x13 0x14 0x15 0x16 0x17 0x18 0x19 0x1a 0x1b 0x1c >;
				qcom,cdc-mclk-clk-rate = < 0xbb8000 >;
				qcom,cdc-micbias-cfilt2-mv = < 0xa8c >;
				qcom,cdc-dmic-sample-rate = < 0x493e00 >;
				qcom,cdc-vddpx-1-voltage = < 0x1b7740 0x1b7740 >;
				qcom,cdc-vdd-buck-current = < 0x61a8 >;
				pinctrl-0 = < 0x66 >;
			};

			wcd9xxx_codec@66 {
				compatible = "qcom,wcd9xxx-i2c";
				reg = < 0x66 >;
			};

			bmi160@68 {
				bmi,init-interval = < 0xc8 >;
				pinctrl-names = "default";
				bmi,place = < 0x01 >;
				compatible = "bosch-sensortec,bmi160";
				reg = < 0x68 >;
				interrupt-parent = < 0x5c >;
				bmi,gpio_irq = < 0x5c 0x4e 0x2002 >;
				interrupts = < 0x4e 0x2002 >;
				pinctrl-0 = < 0x6c 0x6d >;
			};
		};

		qcom,msm-pri-auxpcm {
			qcom,msm-cpudai-auxpcm-sync = < 0x01 0x01 >;
			compatible = "qcom,msm-auxpcm-dev";
			qcom,msm-auxpcm-interface = "primary";
			qcom,msm-cpudai-auxpcm-frame = < 0x05 0x04 >;
			qcom,msm-cpudai-auxpcm-data = < 0x00 0x00 >;
			qcom,msm-cpudai-auxpcm-num-slots = < 0x01 0x01 >;
			phandle = < 0x90 >;
			qcom,msm-cpudai-auxpcm-mode = < 0x00 0x00 >;
			qcom,msm-cpudai-auxpcm-pcm-clk-rate = < 0x1f4000 0x1f4000 >;
			linux,phandle = < 0x90 >;
			qcom,msm-cpudai-auxpcm-slot-mapping = < 0x01 0x01 >;
			qcom,msm-cpudai-afe-clk-ver = < 0x02 >;
			qcom,msm-cpudai-auxpcm-quant = < 0x02 0x02 >;
		};

		tsens@4a8000 {
			qcom,slope = < 0xbb8 0xbb8 0xbb8 0xbb8 0xbb8 >;
			interrupt-names = "tsens-upper-lower";
			compatible = "qcom,mdm9607-tsens";
			reg = < 0x4a8000 0x2000 0xa4000 0x1000 >;
			qcom,sensor-id = < 0x00 0x01 0x02 0x03 0x04 >;
			qcom,temp2-offset = < 0x01 0xfffffffe 0x08 0xfffffffb 0xfffffffc >;
			interrupts = < 0x00 0xb8 0x00 >;
			reg-names = "tsens_physical\0tsens_eeprom_physical";
			qcom,temp1-offset = < 0x01 0xfffffffc 0x04 0xfffffffd 0xfffffffc >;
			qcom,sensors = < 0x05 >;
		};

		qcom,lpm-levels {
			#size-cells = < 0x00 >;
			compatible = "qcom,lpm-levels";
			#address-cells = < 0x01 >;

			qcom,pm-cluster@0 {
				#size-cells = < 0x00 >;
				label = "system";
				reg = < 0x00 >;
				#address-cells = < 0x01 >;
				qcom,default-level = < 0x00 >;

				qcom,pm-cluster-level@0 {
					label = "l2-active";
					reg = < 0x00 >;
					qcom,time-overhead = < 0x1f4 >;
					qcom,latency-us = < 0x10e >;
					qcom,energy-overhead = < 0x4211d >;
					qcom,ss-power = < 0x1c7 >;
				};

				qcom,pm-cpu {
					#size-cells = < 0x00 >;
					#address-cells = < 0x01 >;

					qcom,pm-cpu-level@2 {
						qcom,reset-level = < 0x03 >;
						qcom,use-broadcast-timer;
						qcom,is-reset;
						reg = < 0x02 >;
						qcom,spm-cpu-mode = "pc";
						qcom,time-overhead = < 0x1f4 >;
						qcom,latency-us = < 0x10e >;
						qcom,energy-overhead = < 0x4211d >;
						qcom,ss-power = < 0x1c7 >;
					};

					qcom,pm-cpu-level@0 {
						reg = < 0x00 >;
						qcom,spm-cpu-mode = "wfi";
						qcom,time-overhead = < 0x19 >;
						qcom,latency-us = < 0x01 >;
						qcom,energy-overhead = < 0x186a0 >;
						qcom,ss-power = < 0x1d9 >;
					};

					qcom,pm-cpu-level@1 {
						qcom,reset-level = < 0x03 >;
						qcom,use-broadcast-timer;
						qcom,is-reset;
						reg = < 0x01 >;
						qcom,spm-cpu-mode = "standalone_pc";
						qcom,time-overhead = < 0x1a4 >;
						qcom,latency-us = < 0xf0 >;
						qcom,energy-overhead = < 0x3181d >;
						qcom,ss-power = < 0x1d3 >;
					};
				};

				qcom,pm-cluster-level@1 {
					qcom,reset-level = < 0x03 >;
					qcom,notify-rpm;
					qcom,min-child-idx = < 0x02 >;
					label = "l2-pc";
					reg = < 0x01 >;
					qcom,time-overhead = < 0x21c >;
					qcom,latency-us = < 0x11d >;
					qcom,energy-overhead = < 0x4adbd >;
					qcom,ss-power = < 0x1ba >;
				};
			};
		};

		qcom,rpm-smd {
			rpm-channel-type = < 0x0f >;
			compatible = "qcom,rpm-smd";
			rpm-channel-name = "rpm_requests";

			rpm-regulator-ldoa7 {
				qcom,resource-id = < 0x07 >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x2710 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l7 {
					compatible = "qcom,rpm-smd-regulator";
					qcom,init-voltage = < 0x19f0a0 >;
					regulator-min-microvolt = < 0x19f0a0 >;
					status = "okay";
					qcom,set = < 0x03 >;
					regulator-max-microvolt = < 0x1cfde0 >;
					regulator-name = "mdm9607_l7";
				};
			};

			rpm-regulator-ldoa4 {
				qcom,resource-id = < 0x04 >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x1388 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l4 {
					compatible = "qcom,rpm-smd-regulator";
					qcom,init-voltage = < 0x2eebb8 >;
					regulator-min-microvolt = < 0x2eebb8 >;
					status = "okay";
					qcom,set = < 0x03 >;
					phandle = < 0x76 >;
					regulator-max-microvolt = < 0x2eebb8 >;
					linux,phandle = < 0x76 >;
					regulator-name = "mdm9607_l4";
				};
			};

			rpm-regulator-ldoa3 {
				qcom,resource-id = < 0x03 >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x2710 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l3 {
					compatible = "qcom,rpm-smd-regulator";
					qcom,init-voltage = < 0x1b7740 >;
					regulator-min-microvolt = < 0x1b7740 >;
					status = "okay";
					qcom,set = < 0x03 >;
					phandle = < 0xc3 >;
					regulator-max-microvolt = < 0x1b7740 >;
					linux,phandle = < 0xc3 >;
					regulator-name = "mdm9607_l3";
				};
			};

			rpm-regulator-ldoa10 {
				qcom,resource-id = < 0x0a >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x2710 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l10 {
					compatible = "qcom,rpm-smd-regulator";
					qcom,init-voltage = < 0x100590 >;
					regulator-min-microvolt = < 0x100590 >;
					status = "okay";
					qcom,set = < 0x03 >;
					regulator-max-microvolt = < 0x100590 >;
					regulator-name = "mdm9607_l10";
				};
			};

			rpm-regulator-ldoa14 {
				qcom,resource-id = < 0x0e >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x2710 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l14 {
					compatible = "qcom,rpm-smd-regulator";
					qcom,init-voltage = < 0x286f90 >;
					regulator-min-microvolt = < 0x286f90 >;
					status = "okay";
					qcom,set = < 0x03 >;
					regulator-max-microvolt = < 0x2dc6c0 >;
					regulator-name = "mdm9607_l14";
				};
			};

			rpm-regulator-ldoa11 {
				qcom,resource-id = < 0x0b >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x2710 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l11 {
					compatible = "qcom,rpm-smd-regulator";
					qcom,init-voltage = < 0x1b7740 >;
					regulator-min-microvolt = < 0x1b7740 >;
					status = "okay";
					qcom,set = < 0x03 >;
					phandle = < 0x6a >;
					regulator-max-microvolt = < 0x1b7740 >;
					linux,phandle = < 0x6a >;
					regulator-name = "mdm9607_l11";
				};
			};

			rpm-regulator-ldoa12 {
				qcom,resource-id = < 0x0c >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x2710 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l12-level-ao {
					qcom,use-voltage-level;
					compatible = "qcom,rpm-smd-regulator";
					regulator-min-microvolt = < 0x10 >;
					qcom,set = < 0x01 >;
					phandle = < 0xdb >;
					regulator-max-microvolt = < 0x1a0 >;
					linux,phandle = < 0xdb >;
					regulator-name = "mdm9607_l12_level_ao";
					qcom,always-send-voltage;
				};

				regulator-l12-level-so {
					qcom,use-voltage-level;
					compatible = "qcom,rpm-smd-regulator";
					regulator-min-microvolt = < 0x10 >;
					qcom,set = < 0x02 >;
					regulator-max-microvolt = < 0x1a0 >;
					regulator-name = "mdm9607_l12_level_so";
				};

				regulator-l12-floor-level {
					qcom,use-voltage-floor-level;
					compatible = "qcom,rpm-smd-regulator";
					regulator-min-microvolt = < 0x10 >;
					qcom,set = < 0x03 >;
					phandle = < 0xb9 >;
					regulator-max-microvolt = < 0x1a0 >;
					linux,phandle = < 0xb9 >;
					regulator-name = "mdm9607_l12_floor_lebel";
					qcom,always-send-voltage;
				};

				regulator-l12 {
					compatible = "qcom,rpm-smd-regulator";
					status = "disabled";
					qcom,set = < 0x03 >;
					regulator-name = "mdm9607_l12";
				};

				regulator-l12-level {
					qcom,use-voltage-level;
					compatible = "qcom,rpm-smd-regulator";
					regulator-min-microvolt = < 0x10 >;
					qcom,set = < 0x03 >;
					phandle = < 0xc2 >;
					regulator-max-microvolt = < 0x1a0 >;
					linux,phandle = < 0xc2 >;
					regulator-name = "mdm9607_l12_level";
				};
			};

			rpm-regulator-ldoa8 {
				qcom,resource-id = < 0x08 >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x2710 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l8 {
					compatible = "qcom,rpm-smd-regulator";
					qcom,init-voltage = < 0x1b7740 >;
					regulator-min-microvolt = < 0x1b7740 >;
					status = "okay";
					qcom,set = < 0x03 >;
					regulator-max-microvolt = < 0x1b7740 >;
					regulator-name = "mdm9607_l8";
				};
			};

			rpm-regulator-ldoa6 {
				qcom,resource-id = < 0x06 >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x2710 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l6 {
					compatible = "qcom,rpm-smd-regulator";
					qcom,init-voltage = < 0x19f0a0 >;
					regulator-min-microvolt = < 0x19f0a0 >;
					status = "okay";
					qcom,set = < 0x03 >;
					regulator-max-microvolt = < 0x2e8a10 >;
					regulator-name = "mdm9607_l6";
				};
			};

			rpm-regulator-ldoa13 {
				qcom,resource-id = < 0x0d >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x2710 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l13 {
					compatible = "qcom,rpm-smd-regulator";
					qcom,init-voltage = < 0x2b7cd0 >;
					regulator-min-microvolt = < 0x1b7740 >;
					status = "okay";
					qcom,set = < 0x03 >;
					phandle = < 0x56 >;
					regulator-max-microvolt = < 0x2b7cd0 >;
					linux,phandle = < 0x56 >;
					regulator-name = "mdm9607_l13";
				};
			};

			rpm-regulator-ldoa2 {
				qcom,resource-id = < 0x02 >;
				compatible = "qcom,rpm-smd-regulator-resource";
				qcom,regulator-type = < 0x00 >;
				qcom,hpm-min-load = < 0x1388 >;
				status = "okay";
				qcom,resource-name = "ldoa";

				regulator-l2 {
					compatible = "qcom,rpm-smd-regulator";
					qcom,init-voltage = < 0x1b7740 >;
					regulator-min-microvolt = < 0x1b7740 >;
					status = "okay";
					qcom,set = < 0x03 >;
					phandle = < 0x75 >;
					regulator-max-microvolt = < 0x1b7740 >;
					linux,phandle = < 0x75 >;
					regulator-name = "mdm9607_l2";
				};
			};

			rpm-regulator-ldoa1 {
				qcom,resource-id = < 0x01 >;
				</
